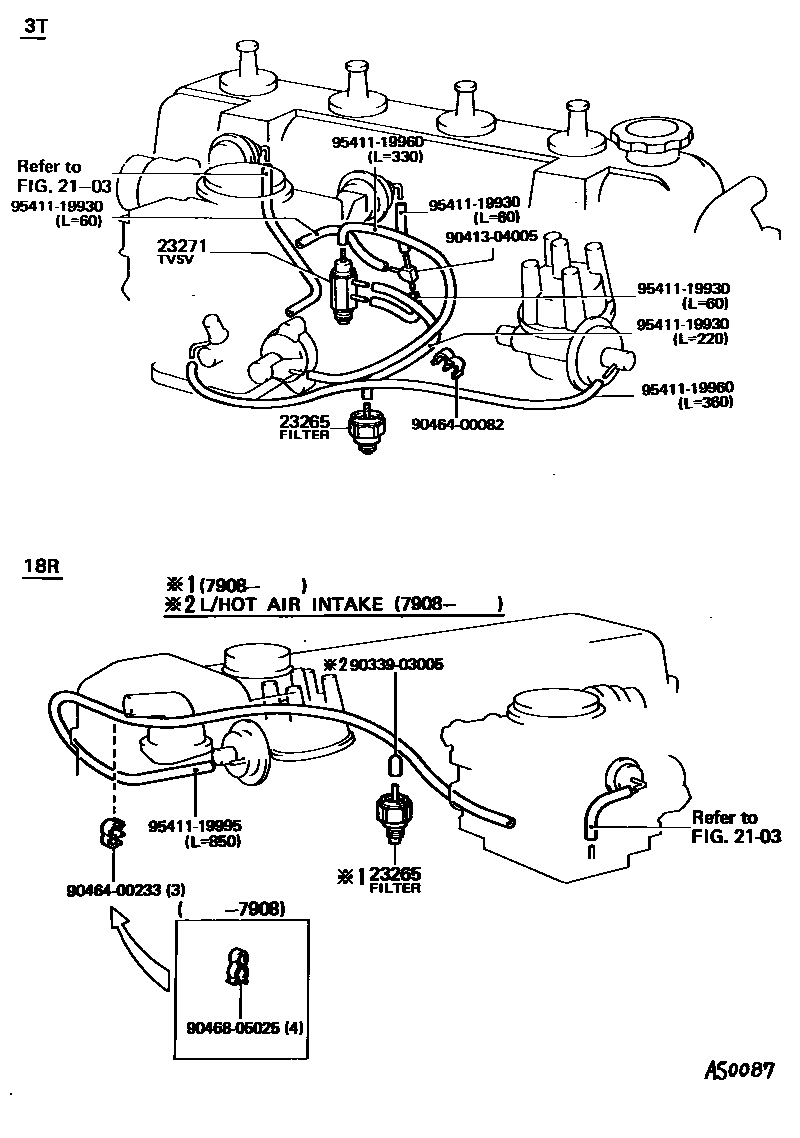

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0009 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1

2103

23265FILTER, GAS, NO.1

main90917-11003i4M..MX3#..ARL197612-197712

sub90917-11013

sub90917-11024

main90917-11012i18RC..RX3#197707-197711

sub90917-11023

main90917-11017i18R..RX3#..EUG197612-197711

sub90917-11022

main90917-11022i3T..TX30197711-198008

main90917-11022i18R..RX3#..RHD..GEN197804-197908

HONG KONG SPEC.

main90917-11023i18R..RX3#..RHD..3FC..GEN197908-198008

HONG KONG SPEC.

main90917-11023i18RC..RX3#197711-198008

main90917-11024i18R..RX3#..MTM..EUG197908-198008

HONG KONG SPEC.

sub90917-11027

main90917-11024i4M..MX3#..ARL197712-198008

sub90917-11027

23271VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1

main90925-02011i4M..MX3#..ARL197612-198008

main90925-02028i18R..RX3#..RHD..GEN197804-197903

HONG KONG SPEC.

main90925-02028i18R..RX3#..EUG197612-197903

main90925-02039i18R..RX3#..EUG197903-198008

main90925-02039i18R..RX3#..RHD..GEN197903-198008

HONG KONG SPEC.

main90925-02043i18RC..RX3#197707-197908

main90925-02048i3T..TX30198001-198008

9033903005

main90339-03005

9041304005

main90413-04005

9046400082

main90464-00082

9046400233

main90464-00233

9046805025

main90468-05025

9541119930

main95411-19930

9541119960

main95411-19960

9541119995

main95411-19995

11 parts on this diagram · 14 diagrams in section
