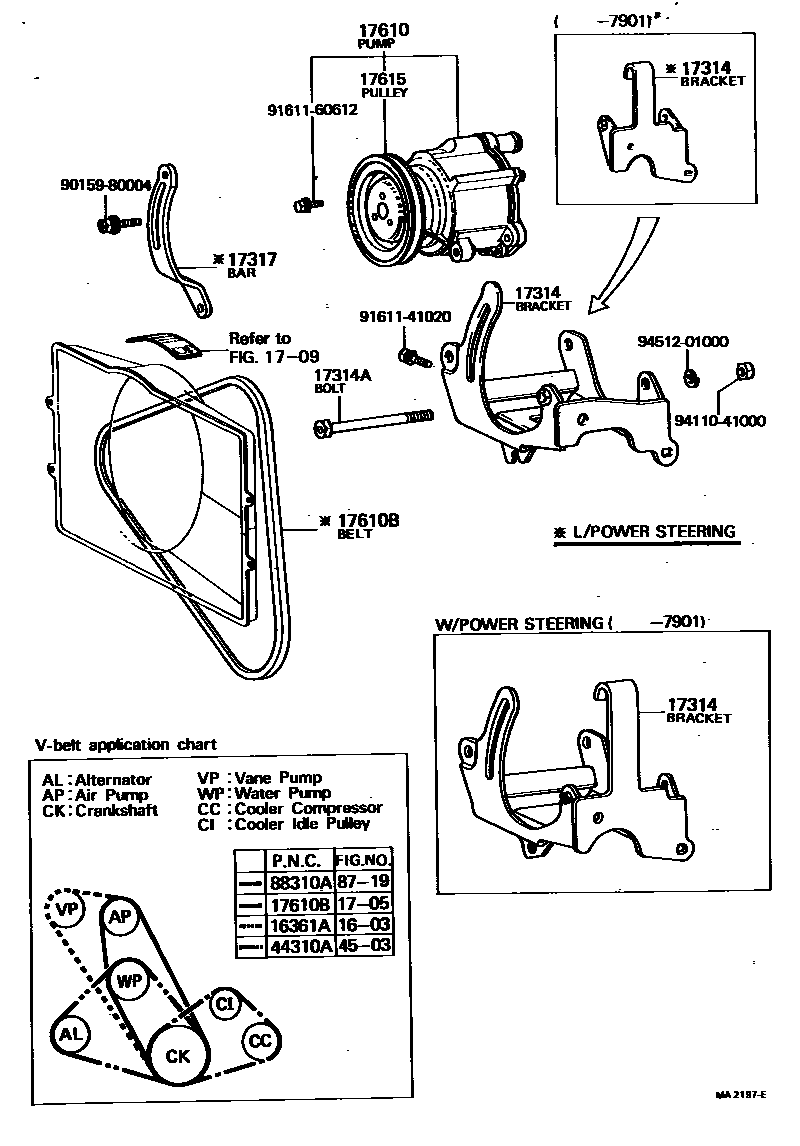

AIR PUMP

0001 1 0002 1

1603

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02048i18RC..RX3#197707-198001

sub99341-50840

main90916-02074i4M..MX3#197707-198001

DOUBLE V BELTS

main90916-02076i4M..MX3#..ARL197908-198008

DOUBLE V BELTS

main99321-00840i18R..RX3#197908-198008

L=840

main99321-00885i3T..TX30198001-198008

L=885

main99341-50840i18RC..RX30198001-198008

main99521-10839i18R..RX3#197612-197809

L=839

sub99321-00840

main99522-10904i4M..MX3#197612-197707

sub99322-00900

1705

1709

17314BRACKET, AIR PUMP

main17314-34020i18RC..RX3#197707-198008

main17314-41010i4M..MX3#..ARL197612-197901

W/POWER STEERING

main17314-41030i4M..MX3#..ARL197901-198008

W/POWER STEERING

sub17314-41031

main17314-45013i4M..MX3#..ARL197612-197808

L/POWER STEERING

17314ABOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)

main90101-10080i18RC..RX3#197707-198008

main90110-10001i4M..MX3#..ARL197612-198008

17317BAR, AIR PUMP ADJUSTING, NO.1

main17317-34020i18RC..RX3#197707-198008

main17317-45011i4M..MX3#..ARL197612-197808

L/POWER STEERING

17610PUMP ASSY, AIR

main17610-34020i18RC..RX3#197707-197908

sub17610-34050

main17610-34050i18RC..RX30197908-198008

main17610-45030i4M..MX3#197612-197707

main17610-45031i4M..MX3#..ARL197707-198008

17610BBELT, V(FOR AIR PUMP)

main99321-50780i18RC..RX30198001-198008

main99322-01155i4M..MX3#..ARL197805-197808

L/POWER STEERING

main99521-10780i18RC..RX3#197707-198001

sub99321-50780

main99522-11159i4M..MX3#..ARL197612-197805

sub99322-01155

17615PULLEY(FOR AIR PUMP)

main17615-34010i18RC..RX3#197707-198008

main17615-41020i4M..MX3#..ARL197707-198008

main17615-45010i4M..MX3#197612-197707

44310ABELT, V(FOR VANE PUMP)

main99522-11232iMX32..SA197707-198001

L=1232

sub90916-02078

main99522-11390iMX3#..ARL197612-198008

L=1390

sub99322-01385

4503

8719

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-01250iRX3#197808-198008

L=1250

sub99322-11250

main99322-51250iRX3#..EUR,GEN197803-197808

main99522-10890iMX3#197707-198008

sub99322-00890

main99522-10901iMX3#197612-197707

sub99322-00895

main99522-11256iRX3#..EUR,GEN197612-197803

sub99322-01250

9015980004

main90159-80004

9161141020

main91611-41020

9161160612

main91611-60612

9411041000

main94110-41000

9451201000

main94512-01000

19 parts on this diagram · 2 diagrams in section
