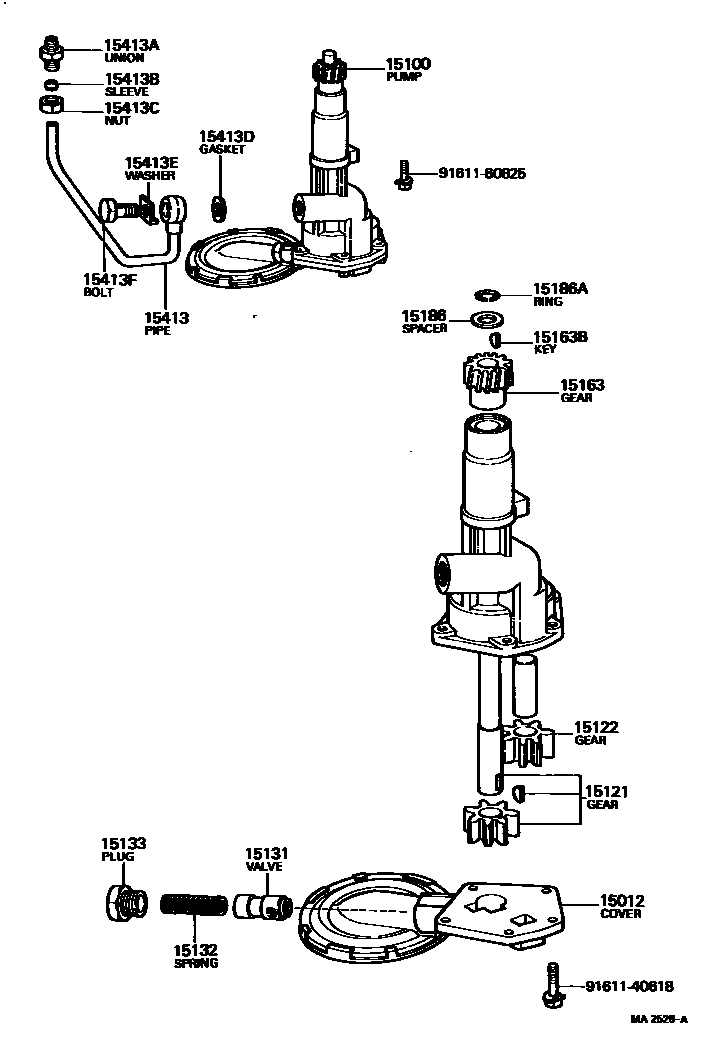

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15012COVER SUB-ASSY, OIL PUMP

main15012-36010i18R#..RX3#197612-197802

sub15012-36011

main15012-36011i18R#..RX3#197802-198008

main15012-41030i4M..MX3#197612-198008

15100PUMP ASSY, OIL

main15100-25020i3T..TX30198001-198008

main15100-36010i18R#..RX3#197612-198008

sub15100-36011

main15100-41030i4M..MX3#197612-198008

15121GEAR, OIL PUMP DRIVE

main15102-45010i4M..MX3#197612-198008

sub15102-43050

15122GEAR, OIL PUMP DRIVEN

main15122-45010i4M..MX3#197612-198008

sub15122-43050

15131VALVE, OIL PUMP RELIEF

main15131-22010i3T..TX30198001-198008

main15131-41010i18R#..RX3#197612-198008

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i3T..TX30197612-198008

main15132-46010i4M..MX3#197612-198008

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i4M..MX3#197612-198008

main15133-41030i3T..TX30198001-198008

sub15133-20010

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-45020i4M..MX3#197612-198008

15163BKEY, WOODRUFF(FOR OIL PUMP DRIVE SHAFT GEAR)

main90280-03005i4M..MX3#197612-198008

15186SPACER(FOR OIL PUMP DRIVE SHAFT GEAR)

main15186-41010i4M..MX3#197612-198008

15186ARING, SHAFT SNAP(FOR OIL PUMP DRIVE SHAFT GEAR)

main90520-11031i4M..MX3#197612-198008

15413PIPE, OIL PUMP OUTLET

main15403-41020i4M..MX3#197612-198008

15413AUNION(FOR OIL PUMP OUTLET PIPE)

main96335-12009i4M..MX3#197612-198008

15413BSLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)

main96395-72000i4M..MX3#197612-198008

15413CNUT, UNION(FOR OIL PUMP OUTLET PIPE)

main96315-12009i4M..MX3#197612-198008

15413DGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-18012i4M..MX3#197612-198008

15413EWASHER, LOCK(FOR OIL PUMP OUTLET PIPE)

main15454-41011i4M..MX3#197612-198008

15413FBOLT, UNION(FOR OIL PUMP OUTLET PIPE)

main90401-18079i4M..MX3#197612-198008

sub90401-18014

9161140618

main91611-40618

9161160825

main91611-60825

20 parts on this diagram · 3 diagrams in section
