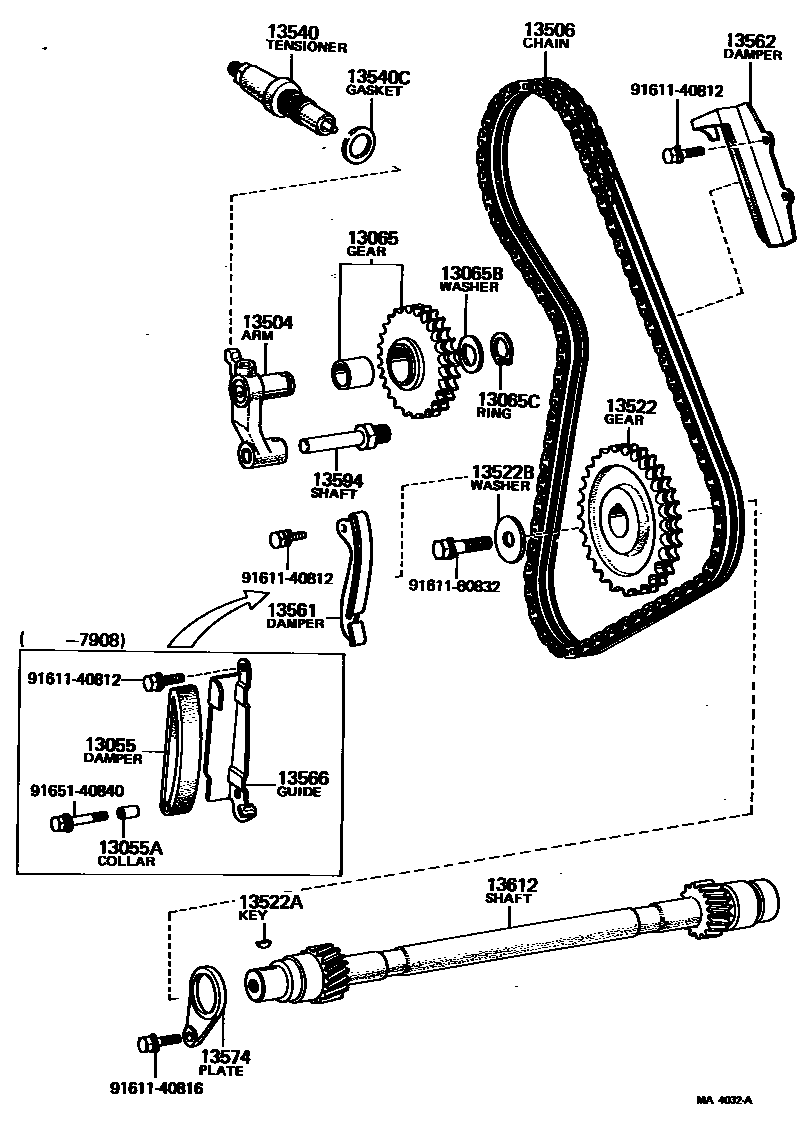

TIMING CHAIN

0001 1 0002 1 0003 1

13055DAMPER SUB-ASSY, CHAIN

main13055-41010i4M..MX3#197612-197908

13055ACOLLAR(FOR CHAIN DAMPER)

main90387-08031i4M..MX3#197612-197908

13065GEAR SUB-ASSY, TENSION

main13065-45010i4M..MX3#197612-198008

13065BWASHER, TIMING CHAIN TENSION GEAR CLAW

main90214-20017i4M..MX3#197612-198008

13065CRING, SHAFT SNAP(FOR TENSION GEAR)

main96150-02000i4M..MX3#197612-198008

13504ARM SUB-ASSY, TENSION

main13504-45020i4M..MX3#197612-198008

13506CHAIN SUB-ASSY

main13506-25010i3T..TX30198001-198008

sub13506-73010

main13506-33010i18R#..RX3#197612-198008

main13506-41010i4M..MX3#197612-198008

13522GEAR, PUMP DRIVE SHAFT

main13522-33010i18R#..RX3#197612-198008

N=36

main13522-41011i4M..MX3#197612-198008

N=30

13522AKEY, WOODRUFF(FOR PUMP DRIVE SHAFT GEAR)

main90280-05008i4M..MX3#197612-198008

main90280-05010i18R#..RX3#197612-198008

13522BWASHER, PLATE(FOR PUMP DRIVE SHAFT GEAR)

main90201-08020i4M..MX3#197908-198008

main90201-08120i4M..MX3#197612-197908

13540TENSIONER ASSY, CHAIN, NO.1

main13540-25010i3T..TX30198001-198008

main13540-33014i18R#..RX3#197612-198008

main13540-45010i4M..MX3#197612-198008

13540CGASKET(FOR CHAIN TENSIONER)

main90430-22135i4M..MX3#197612-198008

sub90430-22009

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-25010i3T..TX30198001-198008

main13561-34010i18R#..RX3#197612-198008

main13561-45010i4M..MX3#197908-198008

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-34020i18R#..RX3#197612-198008

main13562-45010i4M..MX3#197612-198008

13566GUIDE, CHAIN DAMPER

main13566-45010i4M..MX3#197612-197908

13574PLATE, PUMP DRIVE SHAFT

main13574-33010i18R#..RX3#197612-198008

main13574-41010i4M..MX3#197612-198008

13594SHAFT, TENSION GEAR ARM

main13594-45010i4M..MX3#197612-198008

13612SHAFT, PUMP DRIVE

main13612-33011i18R#..RX3#197612-198008

main13612-41010i4M..MX3#197612-198008

9161140812

main91611-40812

9161140816

main91611-40816

9161160832

main91611-60832

9165140840

main91651-40840

22 parts on this diagram · 3 diagrams in section
