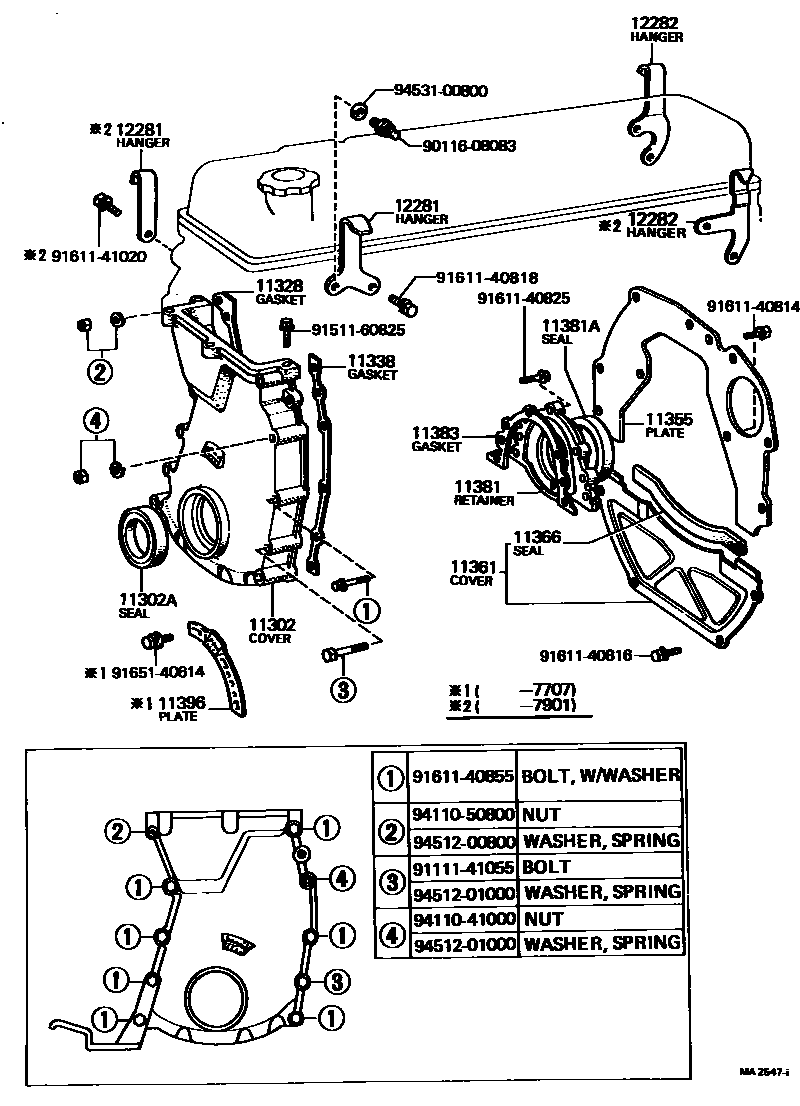

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-28010i3T..TX30198001-198008

main11321-34010i18R#..RX3#197612-198008

main11321-41020i4M..MX3#197707-198008

sub11321-41030

main11321-45011i4M..MX3#197612-197707

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38013i3T..TX30198001-198008

main90311-45069i4M..MX3#197612-198008

TC3 45 68 12

sub90311-45002

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-25011i3T..TX30198001-198008

sub11328-25012

main11328-33014i18R#..RX3#197612-197912

sub11328-33016

main11328-33016i18R#..RX3#197912-198008

sub11328-33017

main11328-41010i4M..MX3#197612-198008

sub11328-43020

11338GASKET, TIMING CHAIN COVER, NO.2

main11338-41010i4M..MX3#197612-198008

sub11329-43030

11355PLATE, REAR END

main11355-25011i3T..TX30..4F198001-198008

sub11355-25012

main11355-25022i3T..TX30..3FC198001-198008

sub11355-25023

main11355-33012i18R#..RX3#..MTM197612-198008

main11355-36010i18R#..RX3#..3FC197612-198008

main11355-41010i4M..MX3#197612-198008

11361COVER, FLYWHEEL HOUSING UNDER

main11361-45010i4M..MX3#197612-198008

11366SEAL, FLYWHEEL HOUSING UNDER COVER DUST

main31131-30010i4M..MX3#197612-198008

11381RETAINER, ENGINE REAR OIL SEAL

main11381-25010i3T..TX30198001-198008

main11381-33010i18R#..RX3#197612-197712

main11381-38010i18R#..RX3#197712-198008

main11381-41011i4M..MX3#197612-198008

sub11381-43010

11381ASEAL, ENGINE REAR OIL

main90311-75113i3T..TX30198001-198008

HTC 75 100 13

sub90311-75004

main90311-80001i18R#..RX3#197712-198008

HTC 80 100 12

main90311-80068i18R#..RX3#197612-197712

TC 80 100 12

sub90311-80001

main90311-80139i4M..MX3#197612-198008

HTC 80 100 12

sub90311-80001

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-25010i3T..TX30198001-198008

main11383-33010i18R#..RX3#197612-198008

sub11383-35010

main11383-41010i4M..MX3#197612-198008

11396PLATE, TIMING MARK

main11396-45010i4M..MX3#197612-197703

sub11396-45011

main11396-45011i4M..MX3#197703-197707

12281HANGER, ENGINE, NO.1

main12281-26010i3T..TX30198001-198008

main12281-41080i4M..MX32..SA197707-197901

main12281-45020i4M..MX3#197901-198008

sub12281-41090

main12282-36010i18R#..RX3#197612-198008

main88892-22100i18R..RX3#..EUR,GEN197612-197707

W/COOLER

12282HANGER, ENGINE, NO.2

main12281-26010i3T..TX30198001-198008

main12281-45012i4M..MX3#197612-197901

main12281-45030i4M..MX3#197901-198008

main12282-36010i18R#..RX3#197612-198008

9011608083

main90116-08083

9111141055

main91111-41055

9151160825

main91511-60825

9161140814

main91611-40814

9161140816

main91611-40816

9161140818

main91611-40818

9161140825

main91611-40825

9161140855

main91611-40855

9161141020

main91611-41020

9165140614

main91651-40614

9411041000

main94110-41000

9411050800

main94110-50800

9451200800

main94512-00800

9451201000

main94512-01000

9453100800

main94531-00800

28 parts on this diagram · 3 diagrams in section
