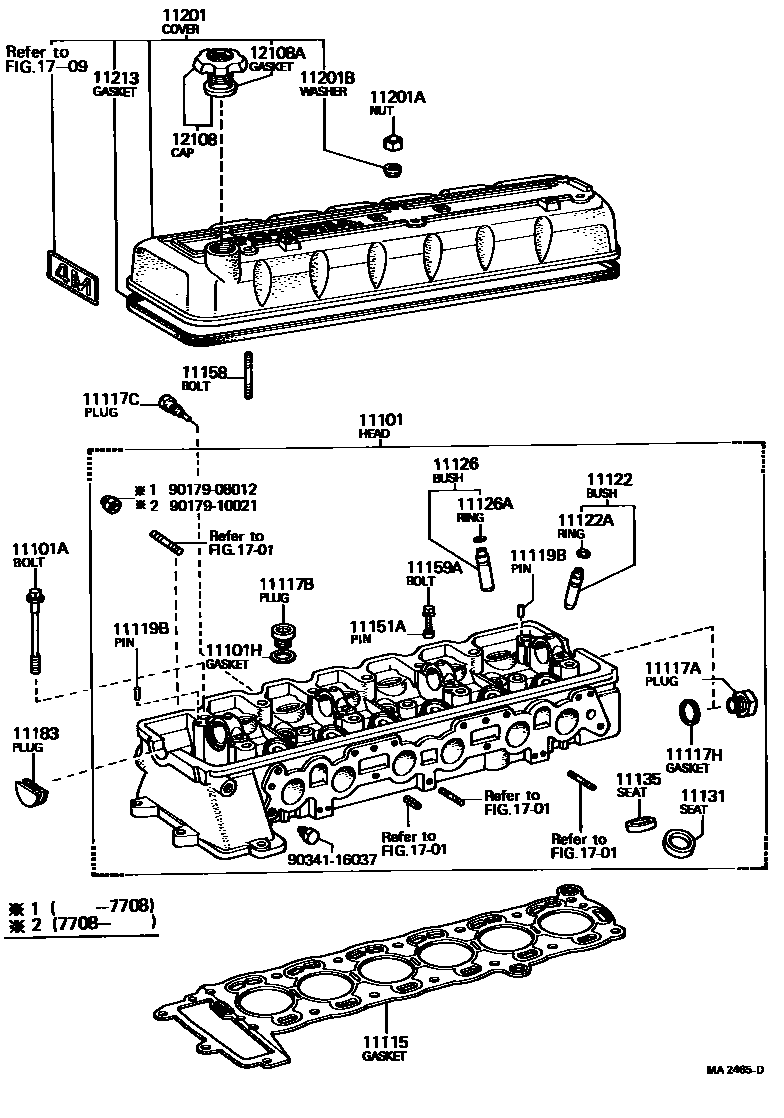

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-29229
sub11101-34113
sub11101-49208
sub11101-49207
sub11101-49208
11101ABOLT(FOR CYLINDER HEAD SET)
12-1.25PX166.5-21
12-1.25PX80-24
11101HGASKET(FOR CYLINDER HEAD SCREW PLUG)
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117CPLUG, W/HEAD TAPER SCREW, NO.3
11117HGASKET(FOR WATER HOLE)
11119BPIN, STRAIGHT, NO.2
L=18,OD=7.9,L=18,OD=7.9
11122BUSH, INTAKE VALVE GUIDE
STD,STD
STD
STD
STD,STD
O/S 0.05,O/S 0.05
O/S 0.05
O/S 0.05
O/S 0.05,O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
STD,STD
STD
O/S 0.05,O/S 0.05
O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
STD,STD
STD,STD
STD,STD
O/S 0.03,O/S 0.03
O/S 0.03,O/S 0.03
O/S 0.03,O/S 0.03
11135SEAT, EXHAUST VALVE
STD,STD
STD,STD
O/S 0.03,O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=8,OD=11,L=8,OD=11
11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
L=51,L=51,S=14&8.5
L=32,S=7&14
L=28,S=8&15
L=29,S=9&9
11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
L=34.7,S=13&13.7
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
sub91611-B0825
11201COVER SUB-ASSY, CYLINDER HEAD
sub11201-39175
sub11201-39176
sub11201-39177
sub11201-39178
sub11201-49146
sub11211-45021
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
CENTER,REAR
FRONT
12108AGASKET(FOR OIL FILLER CAP)
1701
1709
9017908012
main90179-08012
9017910021
main90179-10021
9034116037
main90341-16037
