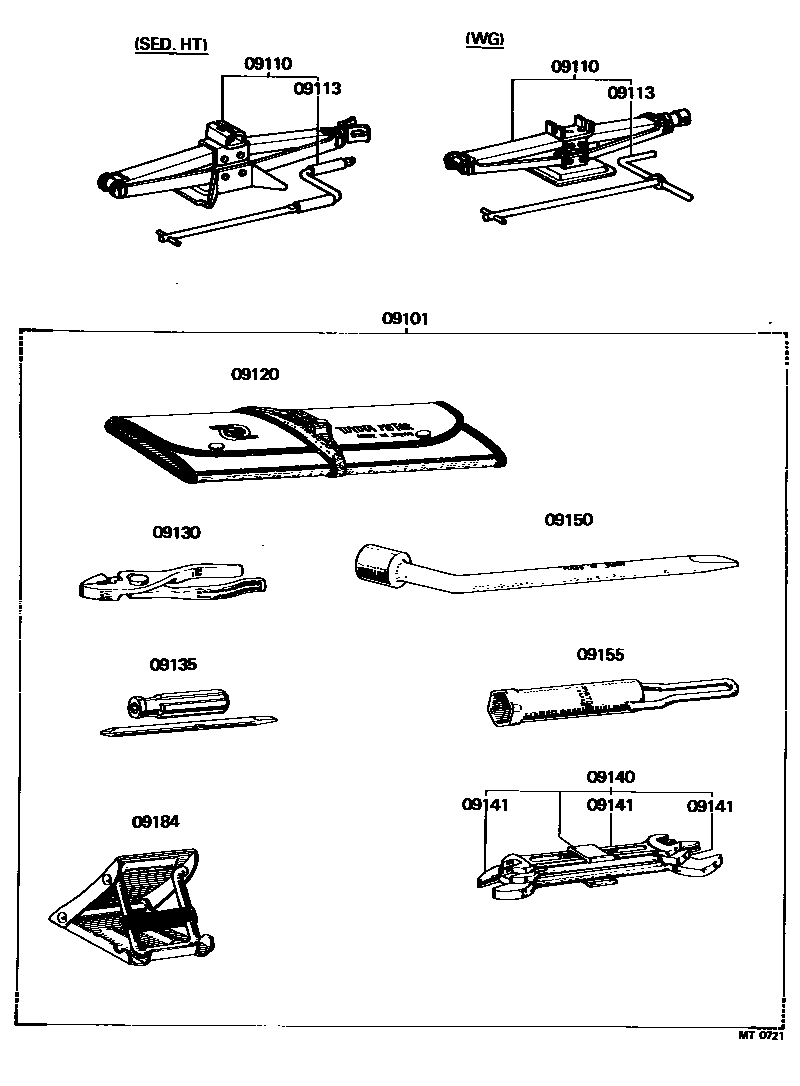

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-30020iMX3#,RX3#197612-198008

sub09101-30021

09110JACK ASSY

main09110-22020iMX32,RX30197612-198008

sub09110-22030

main09110-23021iMX36,RX35197612-198008

09113HANDLE, JACK

main09113-22010iMX32,RX30197612-198008

sub09113-14010

main09113-23021iMX36,RX35197612-198008

sub09113-13021

09120BAG, TOOL

main09120-20020iMX3#,RX3#197612-198008

09130PLIERS

main09130-00011iMX3#,RX3#197612-198008

sub99913-21500

09135DRIVER, SCREW

main09135-00010iMX3#,RX3#197612-198008

(+),(-)

sub99915-10700

09140SPANNER SET

main09140-00013iMX3#,RX3#197612-198008

sub09140-00060

09141SPANNER

main09141-00011iMX3#,RX3#197612-198008

8X10

sub09141-00110

main09141-00030iMX3#,RX3#197612-198008

10X12

sub09141-00120

main09141-00050iMX3#,RX3#197612-198008

14X17

sub09141-00130

09150WRENCH, HUB NUT BOX

main09150-30011iMX3#,RX3#197612-198008

sub09150-40010

09155WRENCH, SPARK PLUG

main09155-22010iMX3#,RX3#197612-198008

sub09155-41010

09184STOPPER, WHEEL

main09184-00010iMX3#,RX3#197612-198008

11 parts on this diagram · 1 diagram in section
