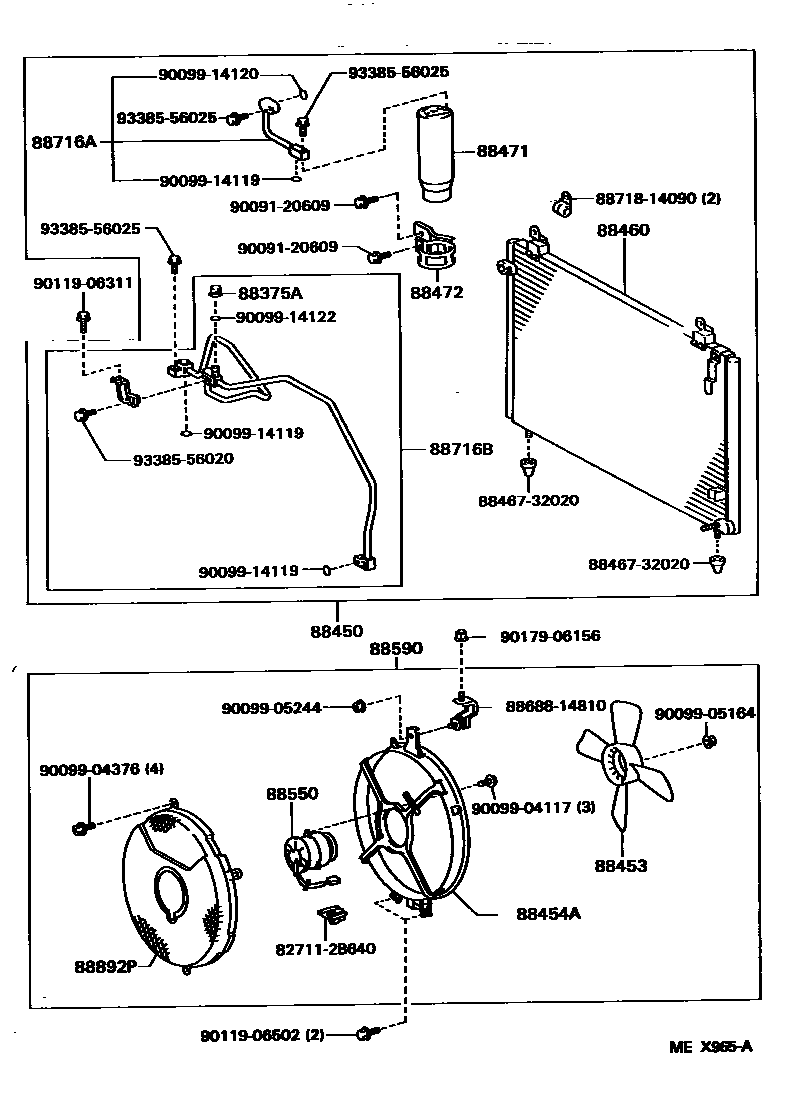

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iJZA80199305-199808

88450CONDENSER ASSY, W/RECEIVER

main88450-14160iJZA80199305-199808

88453FAN, COOLING (FOR CONDENSER)

main16361-15060iJZA80..4FC..TWT199305-199808

88454ASHROUD, FAN

main88454-14070iJZA80..4FC..TWT199305-199808

88460CONDENSER ASSY, COOLER

main88460-14310iJZA80199305-199808

88471TANK, RECEIVER AIR CONDITIONER

main88471-34010iJZA80199305-199808

88472BRACKET, RECEIVER TANK, NO.1

main88472-14200iJZA80199305-199808

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-32110iJZA80..4FC..TWT199305-199808

88590BLOWER ASSY, W/SHROUD

main88590-14090iJZA80..4FC..TWT199305-199808

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-1B210iJZA80199305-199808

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88706-14100iJZA80199305-199808

88892PNET, FAN SHROUD

main88891-14080iJZA80..4FC..TWT199305-199808

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8846732020CUSHION, COOLER CONDENSER, NO.1

main88467-32020

8868814810BRACKET, COOLER DIAPHRAGM

main88688-14810

8871814090PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14090

9009120609

main90091-20609

9009904117

main90099-04117

9009904376

main90099-04376

9009905164

main90099-05164

9009905244

main90099-05244

9009914119

main90099-14119

9009914120

main90099-14120

9009914122

main90099-14122

9011906311

main90119-06311

9011906502

main90119-06502

9017906156

main90179-06156

9338556020

main93385-56020

9338556025

main93385-56025

29 parts on this diagram · 2 diagrams in section
