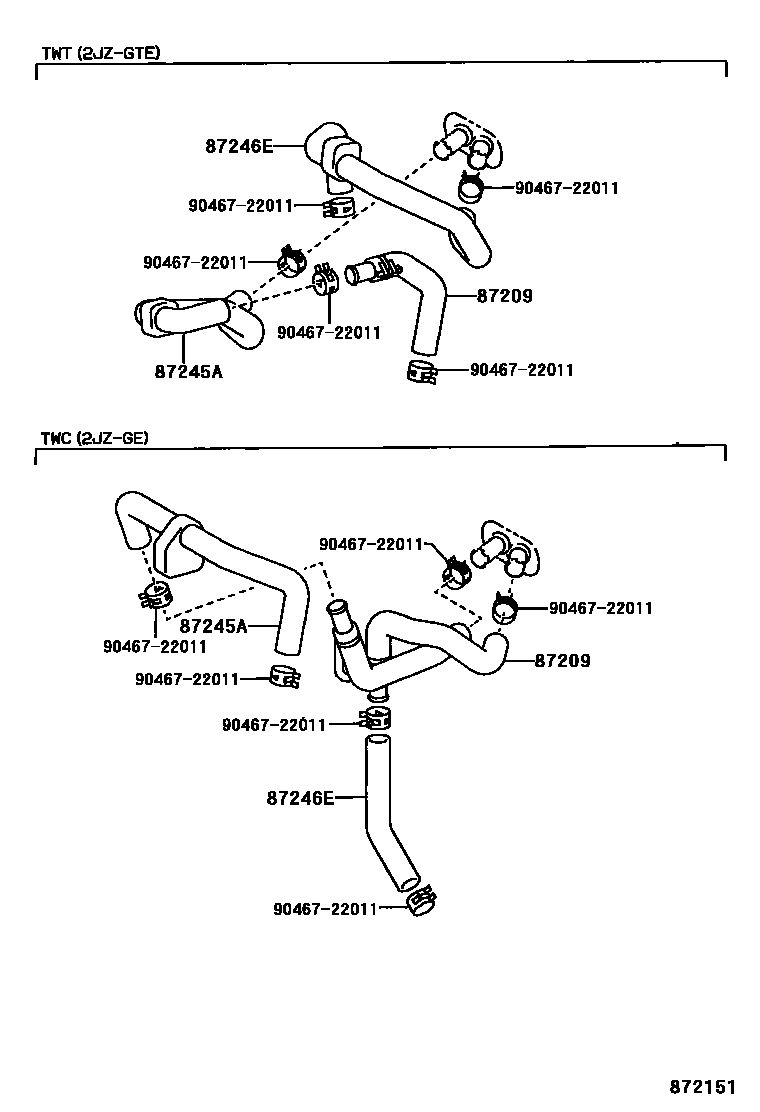

HEATING & AIR CONDITIONING - WATER PIPING

87209HOSE SUB-ASSY, WATER

main87209-14840iJZA80..TWT199305-199808

main87209-14850iJZA80..TWC199305-199808

87245AHOSE, HEATER WATER, INLET A

main87245-1B320iJZA80..TWT199305-199808

main87245-1B340iJZA80..TWC199305-199808

87246EHOSE, HEATER WATER, OUTLET E

main87245-1B310iJZA80..TWC199305-199808

main87245-1B330iJZA80..TWT199305-199808

9046722011

main90467-22011

4 parts on this diagram · 1 diagram in section
