HEATING & AIR CONDITIONING - COOLER UNIT

8202

87010UNIT ASSY, AIR CONDITIONER

main87010-14020iJZA80199305-199607

main87010-14040iJZA80199607-199808

87105DFAN SUB-ASSY, BLOWER

main87105-14050iJZA80199305-199808

87106GSERVO SUB-ASSY, DAMPER(FOR BLOWER)

main87106-14110iJZA80199305-199808

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-14120iJZA80199305-199808

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-14130iJZA80199305-199808

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-14200iJZA80199305-199808

8715

87165CCONTROL, BLOWER MOTOR

main87165-14010iJZA80199305-199808

sub87165-14020

87211KDUCT, AIR

main87211-14100iJZA80199305-199808

87240CVALVE ASSY, HEATER WATER

main87240-14160iJZA80199305-199808

87248NPIPE, HEATER WATER INLET

main87248-14250iJZA80199305-199808

87248PPIPE, HEATER WATER OUTLET

main87248-14260iJZA80199305-199808

87615ARETAINER, INSULATOR

main87615-24020iJZA80199305-199808

88326APLATE, COVER

main88326-24020iJZA80199305-199808

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-14250iJZA80199305-199410

sub88501-14251

main88501-14251iJZA80199410-199808

sub88501-24091

88515VALVE, COOLER EXPANSION

main88515-20100iJZA80199305-199808

sub88515-22240

88524PANEL, COOLING BOX, BOTTOM

main88524-14020iJZA80199305-199808

LOWER

main88524-14040iJZA80199305-199808

UPPER

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-14120iJZA80199305-199808

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88539-14110iJZA80199305-199408

sub88539-24090

main88539-24090iJZA80199408-199808

88625THERMISTOR, COOLER, NO.1

main88625-14120iJZA80199305-199808

sub88625-24050

88625ATHERMISTOR, COOLER NO.2

main88790-14130iJZA80199305-199808

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14270iJZA80199305-199508

sub88650-14271

main88650-14271iJZA80199508-199607

sub88650-14272

main88650-14272iJZA80199607-199808

88669BHOSE, COOLER AIR

main88669-14040iJZA80199305-199808

88710ATUBE ASSY, AIR CONDITIONER

main88710-14120iJZA80199305-199607

main88710-14170iJZA80199607-199808

88897UPIPE, ASPIRATOR

main88897-30730iJZA80199305-199808

8889114090PACKING (FOR COOLER)

main88891-14090

9009904381

main90099-04381

9009914119

main90099-14119

9009914121

main90099-14121

9010906228

main90109-06228

9011906465

main90119-06465

9015950204

main90159-50204

9048026014

main90480-26014

9165160816

main91651-60816

9356715012

main93567-15012

9356755014

main93567-55014

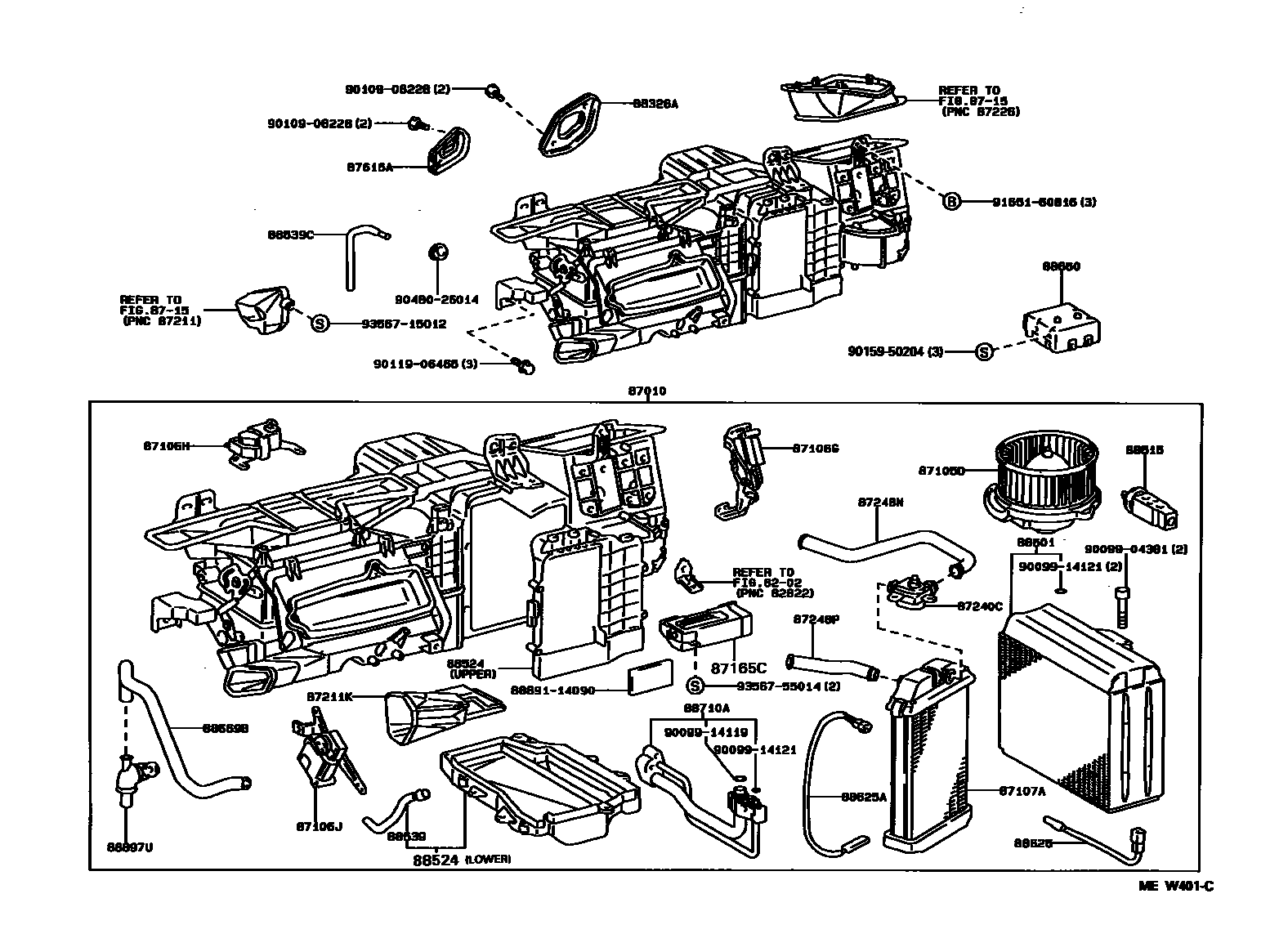

37 parts on this diagram · 1 diagram in section
