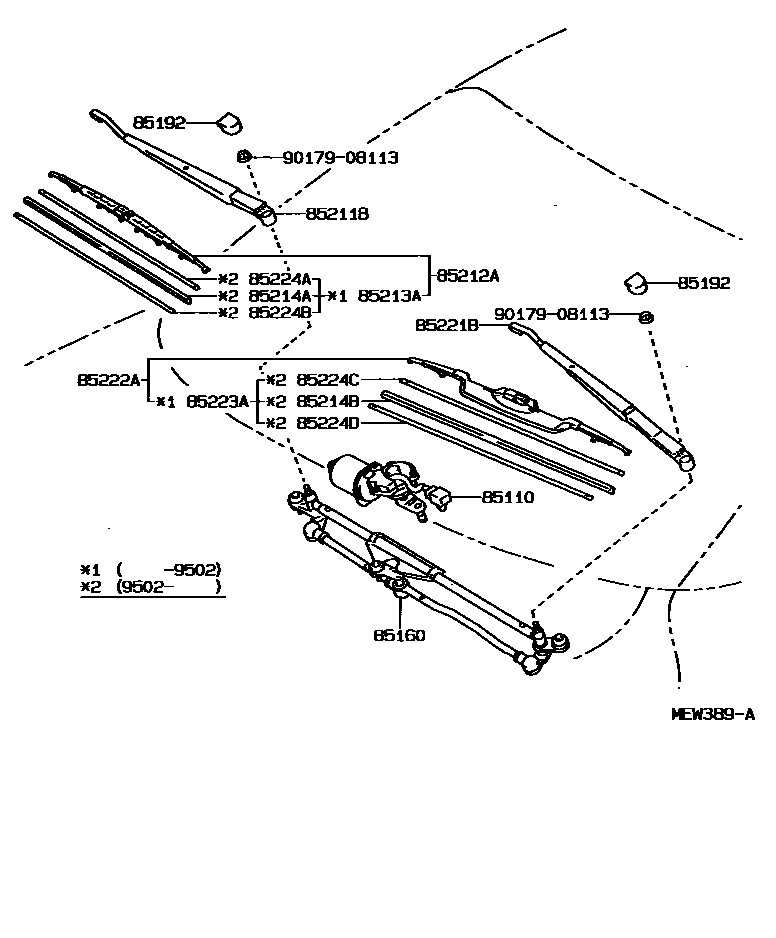

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-14330iJZA80199305-199808

85160LINK ASSY, WINDSHIELD WIPER

main85150-14330iJZA80199305-199808

85192COVER, WINDSHIELD WIPER ARM

main85292-12020×2iJZA80199305-199808

85211BARM, FRONT WIPER, RH

main85211-14310iJZA80199305-199808

85212ABLADE, FR WIPER, RH

main85212-33011iJZA80199305-199808

sub85212-34012

85213ARUBBER, WIPER BLADE, RH

main85213-33041iJZA80199305-199502

85214ARUBBER, WIPER, RH

main85214-33020iJZA80199502-199607

sub85214-34010

85214BRUBBER, WIPER, LH

main85214-33050iJZA80199502-199607

sub85214-40080

85221BARM, FRONT WIPER, LH

main85221-14310iJZA80199305-199808

85222ABLADE, FR WIPER, LH

main85222-14610iJZA80199305-199808

sub85222-30490

85223ARUBBER, FRONT WIPER BLADE, LH

main85223-33022iJZA80199305-199502

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-20300iJZA80199502-199607

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-20300iJZA80199502-199607

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-33050iJZA80199502-199607

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-33050iJZA80199502-199607

9017908113

main90179-08113

16 parts on this diagram · 1 diagram in section
