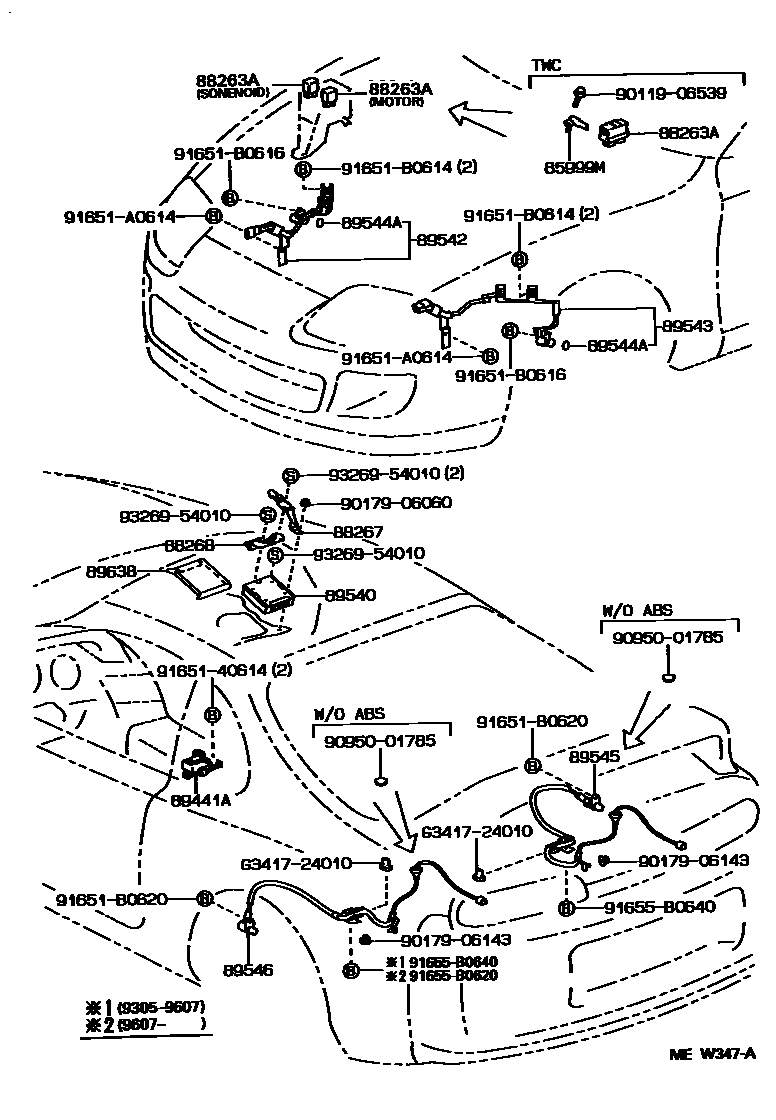

ABS & VSC

85999MBRACKET, RELAY

main85999-14230iJZA80..TWC199305-199808

88263ARELAY, SKID CONTROL

main88263-12070iJZA80..TWC199305-199604

sub88263-12080

main88263-24020iJZA80..TWT199305-199808

MOTOR

main88263-24030iJZA80..TWT199305-199808

SOLENOID

main88263-35090iJZA80..TWC199604-199808

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-14130iJZA80..TWT199305-199607

main88267-14140iJZA80..TWC199305-199607

main88267-14150iJZA80199607-199808

88268BRACKET, SKID CONTROL COMPUTER, NO.2

main88268-14130iJZA80..TWT199305-199607

main88268-14140iJZA80..TWC199305-199607

main88268-14150iJZA80199607-199808

89441ASENSOR, DECELERATION

main89440-14010iJZA80..MTM199305-199607

main89440-14020iJZA80..4FC199305-199607

main89441-20050iJZA80..TWT199607-199808

sub89441-42010

89540COMPUTER ASSY, SKID CONTROL

main89541-14040iJZA80..TWC199305-199607

main89541-14050iJZA80..TWT199305-199601

main89541-14060iJZA80..TWC199607-199808

main89541-14070iJZA80..TWT199607-199808

89542SENSOR, SPEED, FRONT RH

main89542-14020iJZA80199305-199607

sub89542-14030

main89542-14030iJZA80199607-199808

89543SENSOR, SPEED, FRONT LH

main89543-14020iJZA80199305-199607

sub89543-14030

main89543-14030iJZA80199607-199808

89544ARING, O (FOR SKID CONTROL SENSOR)

main96721-19016iJZA80199305-199808

89545SENSOR, SPEED, REAR RH

main89545-14010iJZA80199305-199607

main89545-14020iJZA80199607-199808

89546SENSOR, SPEED, REAR LH

main89546-14010iJZA80199305-199607

main89546-14020iJZA80199607-199808

89638COVER, BRAKE CONTROL COMPUTER

main89638-14010iJZA80..TWC199305-199607

9011906539

main90119-06539

9017906060

main90179-06060

9017906143

main90179-06143

9095001785

main90950-01785

9165140614

main91651-40614

91651A0614

main91651-A0614

91651B0614

main91651-B0614

91651B0616

main91651-B0616

91651B0620

main91651-B0620

91655B0620

main91655-B0620

91655B0640

main91655-B0640

9326954010

main93269-54010

G341724010

mainG3417-24010

25 parts on this diagram · 1 diagram in section
