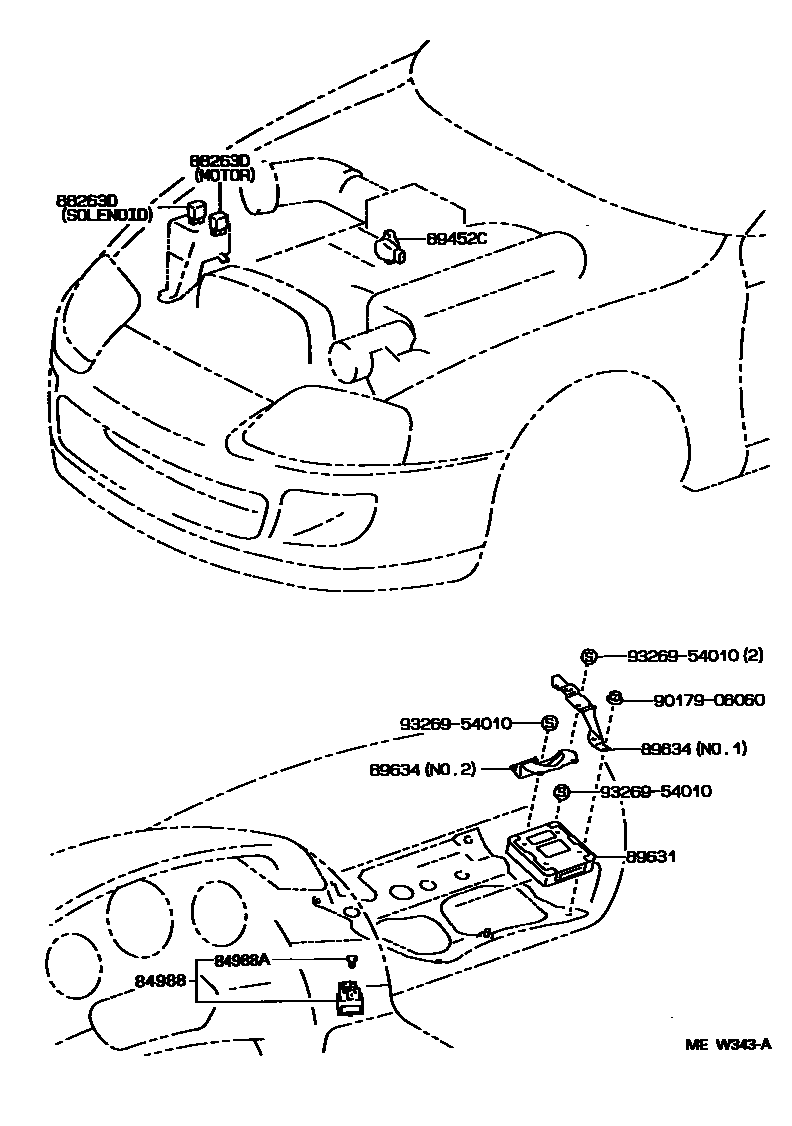

TRACTION CONTROL

0001 1 0002 1

84988SWITCH, TRACTION CONTROL

main84988-14020iJZA80..TWT199305-199601

main84988-14030iJZA80..TWT199601-199808

84988ABULB, TRACTION CONTROL SWITCH

main84999-10490iJZA80..TWT199601-199808

14V 0.84W

main84999-10700iJZA80..TWT199601-199808

14V 0.63W

main84999-10750iJZA80..TWT199305-199601

14V 0.84W

88263DRELAY, TRACTION CONTROL

main88263-24020iJZA80..TWT199305-199601

MOTOR

main88263-24030iJZA80..TWT199305-199601

SOLENOID

89452CSENSOR, THROTTLE POSITION

main89452-22090iJZA80..TWT199305-199808

89631COMPUTER, TRACTION CONTROL

main89631-14010iJZA80..TWT199305-199601

89634BRACKET, TRACTION CONTROL COMPUTER

main88267-14140iJZA80..TWT199305-199601

NO.1

main88268-14140iJZA80..TWT199305-199601

NO.2

9017906060

main90179-06060

9326954010

main93269-54010

8 parts on this diagram · 2 diagrams in section
