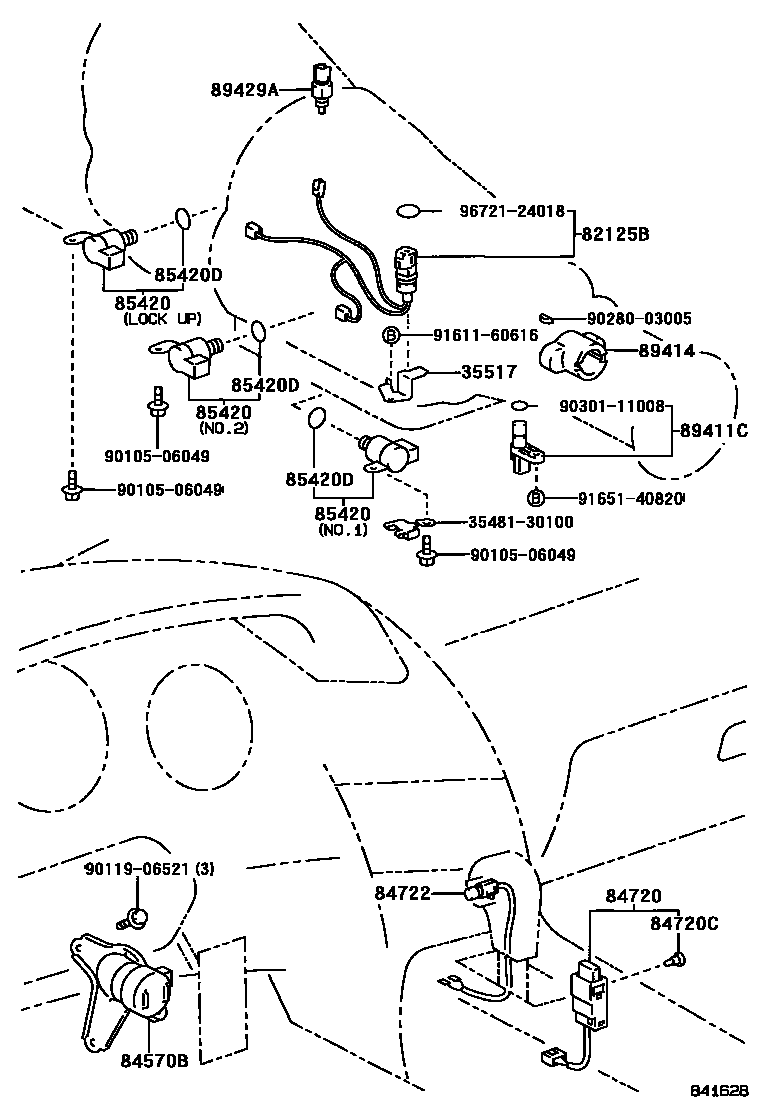

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

35517PLATE, TRANSMISSION WIRE LOCK

main35517-50010iJZA80..4FC199305-199808

82125BWIRE, TRANSMISSION

main82125-14180iJZA80..4FC..TWT199611-199808

main82125-30170iJZA80..4FC..TWT199607-199611

main82125-30400iJZA80..4FC..TWC199502-199709

main82125-35120iJZA80..4FC..TWC199305-199502

main82125-40050iJZA80..TWC199709-199808

84570BSWITCH ASSY, KICK DOWN

main84570-24020iJZA80..4FC..USA199601-199607

84720SWITCH ASSY, PATTERN SELECT

main84720-14080iJZA80..4FC199305-199808

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-10760iJZA80..4FC199305-199808

84722SWITCH, TRANSMISSION CONTROL

main84722-14090iJZA80..4FC199305-199808

85420SOLENOID ASSY, TRANSMISSION

main85420-22080×2iJZA80..4FC..TWC199305-199502

NO.1 OR NO.2

main85420-30110iJZA80..4FC..TWC199305-199502

LOCK UP,AISIN

main85420-30120iJZA80..4FC..TWC199305-199502

LOCK UP,NIPPONDENSO

main85420-30200×2iJZA80..4FC..TWC199607-199709

NO.1 & NO.2

sub85420-21090

main85420-30220iJZA80..4FC..TWC199502-199709

LOCK UP

sub85420-30260

main85420-50020×2iJZA80..4FC..TWT199607-199709

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×3iJZA80..4FC..TWT199305-199709

89411CSENSOR, SPEED

main89411-50010×2iJZA80..TWT..USA199601-199607

main89413-24010iJZA80..4FC..TWC199305-199709

89414ROTOR, SENSOR

main89414-22010iJZA80..4FC..TWC199305-199709

main89414-30040iJZA80..TWC199709-199808

89429ASENSOR, TEMPERATURE

main89429-30010iJZA80..4FC199607-199709

3548130100BODY, GOVERNOR

main35481-30100

9010506049

main90105-06049

9011906521

main90119-06521

9028003005

main90280-03005

9030111008

main90301-11008

9161160616

main91611-60616

9165140820

main91651-40820

9672124018

main96721-24018

19 parts on this diagram · 2 diagrams in section
