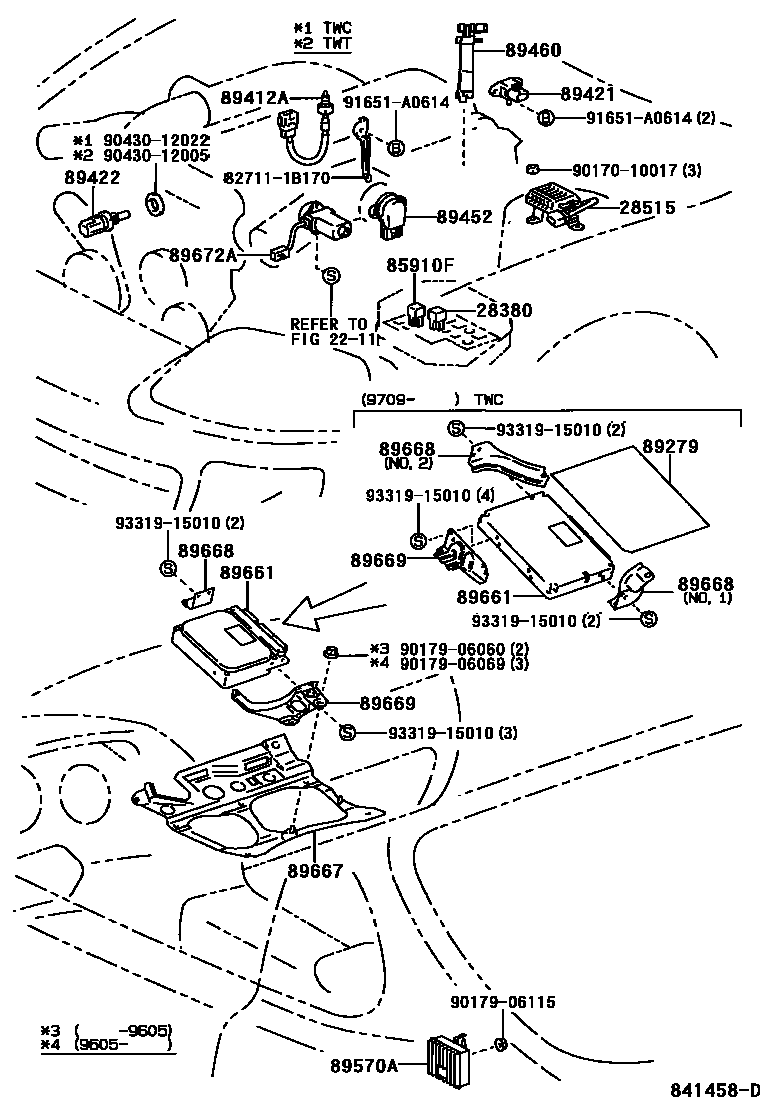

ELECTRONIC FUEL INJECTION SYSTEM

2211

28380RELAY ASSY, FUEL PUMP

main90987-02009i2JZGTE..JZA80199305-199808

28515RESISTOR, SOLENOID

main28510-46020i2JZGTE..JZA80..USA199305-199808

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iJZA80199305-199808

89279COVER, ENGINE CONTROL COMPUTER

main89279-24040iJZA80..TWC199709-199808

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-14010iJZA80..TWT199305-199404

sub89412-14011

main89412-14011iJZA80..TWT199404-199601

main89412-14030iJZA80..TWT199601-199808

main89412-24030iJZA80..TWC199305-199404

sub89412-24031

main89412-24031iJZA80..TWC199404-199709

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-12111iJZA80..TWT199305-199808

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iJZA80..TWC199305-199808

main89422-35010iJZA80..TWT199305-199808

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22080iJZA80..TWT199305-199808

main89452-22090iJZA80..TWC199305-199709

main89452-30150iJZA80..TWC199709-199808

89460SENSOR ASSY, VAPOR PRESSURE

main89460-14020iJZA80..TWC199709-199808

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-14200iJZA80..TWC199305-199311

sub89570-14240

main89570-14230iJZA80..TWT199305-199808

main89570-14240iJZA80..TWC199311-199709

main89570-14250iJZA80..TWC199709-199808

89661COMPUTER, ENGINE CONTROL

main89661-14510iJZA80..4FC..TWT199305-199310

sub89661-14511

main89661-14511iJZA80..4FC..TWT199310-199601

main89661-14520iJZA80..6F199305-199310

sub89661-14521

main89661-14521iJZA80..6F199310-199601

main89661-14560iJZA80..4FC..TWC199305-199508

CALIFORNIA SPEC

main89661-14570iJZA80..5F199305-199508

CALIFORNIA SPEC

main89661-14580iJZA80..4FC..TWC199305-199508

main89661-14590iJZA80..5F199305-199508

main89661-14690iJZA80..4FC..TWC199508-199607

sub89661-14691

main89661-14700iJZA80..5F199508-199607

sub89661-14701

main89661-14710iJZA80..TWT..USA199601-199607

main89661-14720iJZA80..4FC..TWT199709-199808

main89661-14730iJZA80..TWC199709-199802

sub89661-14731

main89661-14731iJZA80..TWC199802-199808

main89661-14740iJZA80..5F199607-199611

sub89661-14741

main89661-14741iJZA80..5F199611-199709

main89661-14750iJZA80..4FC..TWC199607-199611

sub89661-14751

main89661-14751iJZA80..4FC..TWC199611-199709

main89661-14790iJZA80..6F199607-199808

main89661-14800iJZA80..4FC..TWT199607-199709

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-14090iJZA80..USA199305-199808

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-14030iJZA80199305-199808

main89668-14050iJZA80..TWC199709-199808

NO.1

main89668-14070iJZA80..TWC199709-199808

NO.2

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-14030iJZA80..TWC199305-199508

main89669-14050iJZA80..TWT199305-199808

main89669-14090iJZA80..TWC199709-199808

89672AMOTOR, THROTTLE CONTROL

main89672-30020iJZA80..TWC199709-199808

827111B170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1B170

9017010017

main90170-10017

9017906060

main90179-06060

9017906069

main90179-06069

9017906115

main90179-06115

9043012005

main90430-12005

9043012022

main90430-12022

91651A0614

main91651-A0614

9331915010

main93319-15010

25 parts on this diagram · 1 diagram in section
