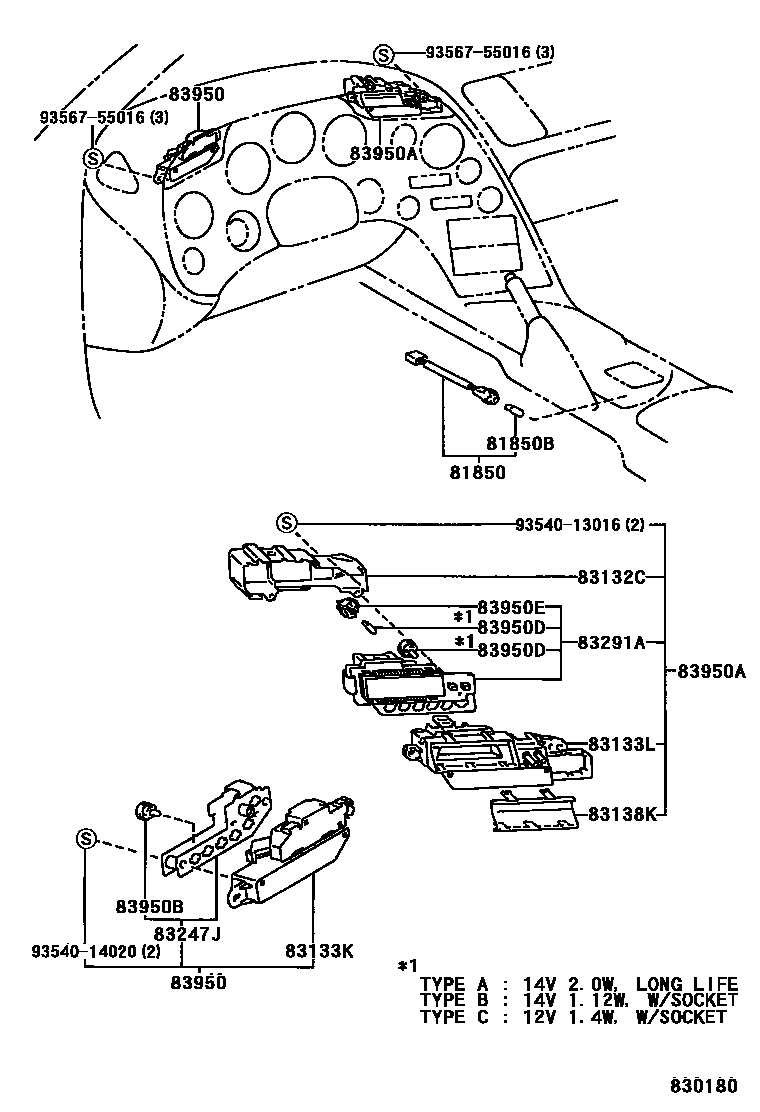

INDICATOR

81850LAMP ASSY, INDICATOR

main81850-33010iJZA80199305-199808

81850BBULB, INDICATOR LAMP

main90981-11014iJZA80199305-199808

14V 1.4W

83132CCASE, TELLTALE LAMP

main83132-1J340iJZA80199305-199808

83133KPLATE, TELLTALE LAMP

main83133-1D410iJZA80..AET;JZA80..LB..(4FC,6F)199305-199408

main83133-1D510iJZA80..LB..5F199305-199607

main83133-1D530iJZA80..CND199408-199709

83133LPLATE SUB-ASSY, TELLTALE LAMP

main83133-1D330iJZA80199305-199808

sub83133-1D350

83138KGLASS, TELLTALE LAMP

main83138-1B290iJZA80199305-199808

83247JCIRCUIT SUB-ASSY, TELLTALE LAMP

main83247-1U230iJZA80..AET;JZA80..LB..(4FC,6F)199305-199607

sub83247-1U270

main83247-1U290iJZA80..LB..5F199305-199607

sub83247-1U270

83291ACOMPUTER, COMBINATION METER

main83291-14090iJZA80..USA199305-199808

main83291-14100iJZA80..CND199308-199709

83950LAMP ASSY, TELLTALE

main83950-14030iJZA80..AET;JZA80..LB..(4FC,6F)199305-199408

main83950-14060iJZA80..LB..5F199305-199607

main83950-14160iJZA80..CND199408-199709

83950ALAMP ASSY, TELLTALE

main83950-14100iJZA80..USA199305-199808

main83950-14110iJZA80..CND199308-199709

83950BBULB, TELLTALE LAMP

main83119-24070iJZA80199305-199607

12V 1.4W W(SOCKET)

83950DBULB, TELLTALE LAMP

main83109-30070iJZA80199305-199808

14V 2.0W,W/O SOCKET,TYPE A:REFER TO ILLUSTRATION

main83119-24670iJZA80199305-199808

14V 1.12W W(SOCKET),TYPE B:REFER TO ILLUSTRATION

main90981-11018×3iJZA80199305-199808

12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION

83950ESOCKET, TELLTALE LAMP

main83101-14040×4iJZA80199305-199808

9354013016

main93540-13016

9354014020

main93540-14020

9356755016

main93567-55016

16 parts on this diagram · 1 diagram in section
