METER

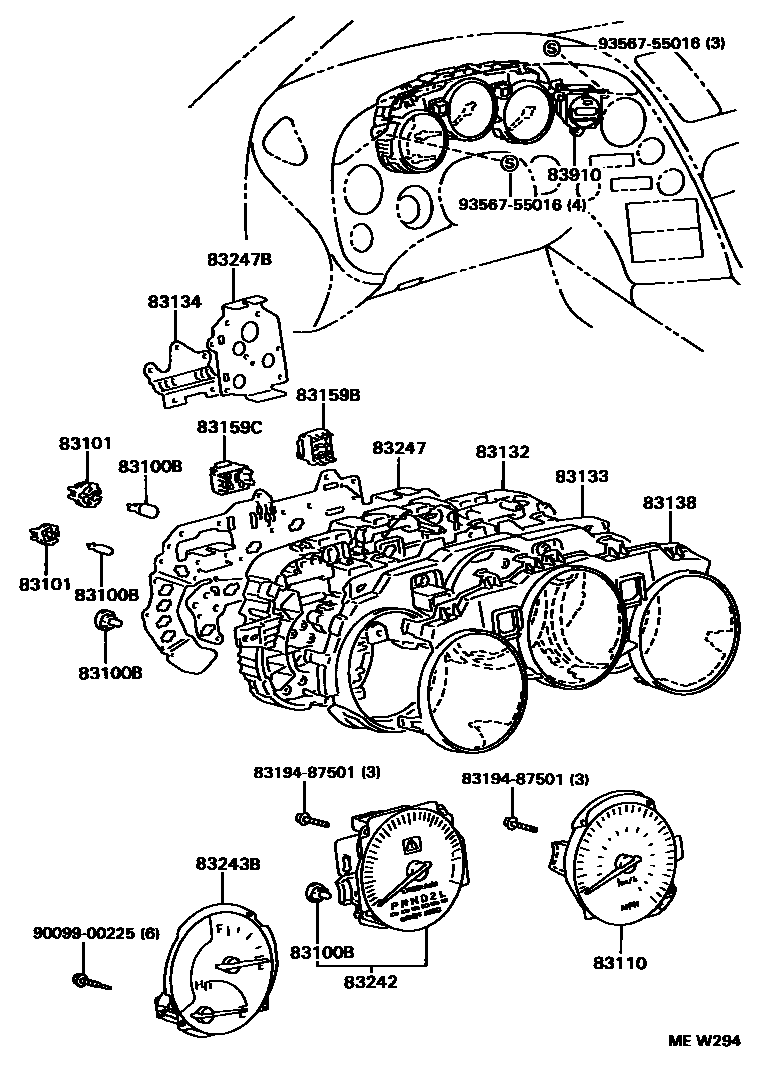

Parts diagram

83100BBULB, COMBINATION METER, NO.1

main83101-20080i199305-199808

12V 1.4W,W(SOCKET)

main83109-24010i199305-199808

12V 1.4W,GREEN CAP

main83109-24020×3i199305-199808

12V3.4W W(GREEN CAP)

main83119-24670×8i199305-199808

14V 1.12W W(SOCKET)

main83119-32010×3i199305-199808

14V 3.0W

main90981-11018×4i199305-199607

12V 1.2W W/O SOCKET

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×3i199305-199808

12V 3.4W

main83101-14040×5i199305-199607

12V 1.4W

main83101-24010×3i199305-199607

14V 3.0W

83110SPEEDOMETER ASSY

main83110-1B290i199305-199808

main83110-1B300i199308-199709

83132CASE, COMBINATION METER

main83132-1J300i199305-199808

main83132-1J320i199305-199808

83133PLATE, COMBINATION METER, NO.1

main83133-1D290i199305-199808

83134COVER, COMBINATION METER, NO.1

main83133-1D310i199305-199808

83138GLASS, SPEEDOMETER

main83138-1B270i199305-199808

83159BRELAY ASSY, METER

main83159-22370i199305-199808

83159CRELAY ASSY, METER

main83159-22170i199305-199808

83242TACHOMETER ASSY, ENGINE

main83242-1U270i199308-199709

main83242-1U310i199305-199808

main83242-1U330i199305-199709

main83242-1U350i199305-199607

main83242-1U351i199607-199808

main83242-1U352i199709-199808

main83242-1U370i199305-199607

main83242-1U371i199607-199709

main83242-1U390i199308-199607

main83242-1U391i199607-199709

83243BGAUGE ASSY, COMBINATION

main83243-1B530i199305-199601

main83243-1B531i199607-199709

main83243-1B532i199709-199808

main83243-1B550i199308-199601

main83243-1B551i199601-199709

83247PLATE, METER CIRCUIT

main83247-1U110i199305-199808

83247BPLATE, METER CIRCUIT, NO.2

main83247-1U190i199305-199808

83910CLOCK ASSY

main83910-14400i199305-199808

8319487501

main83194-87501

9009900225

main90099-00225

9356755016

main93567-55016

17 parts on this diagram · 2 diagrams in section
