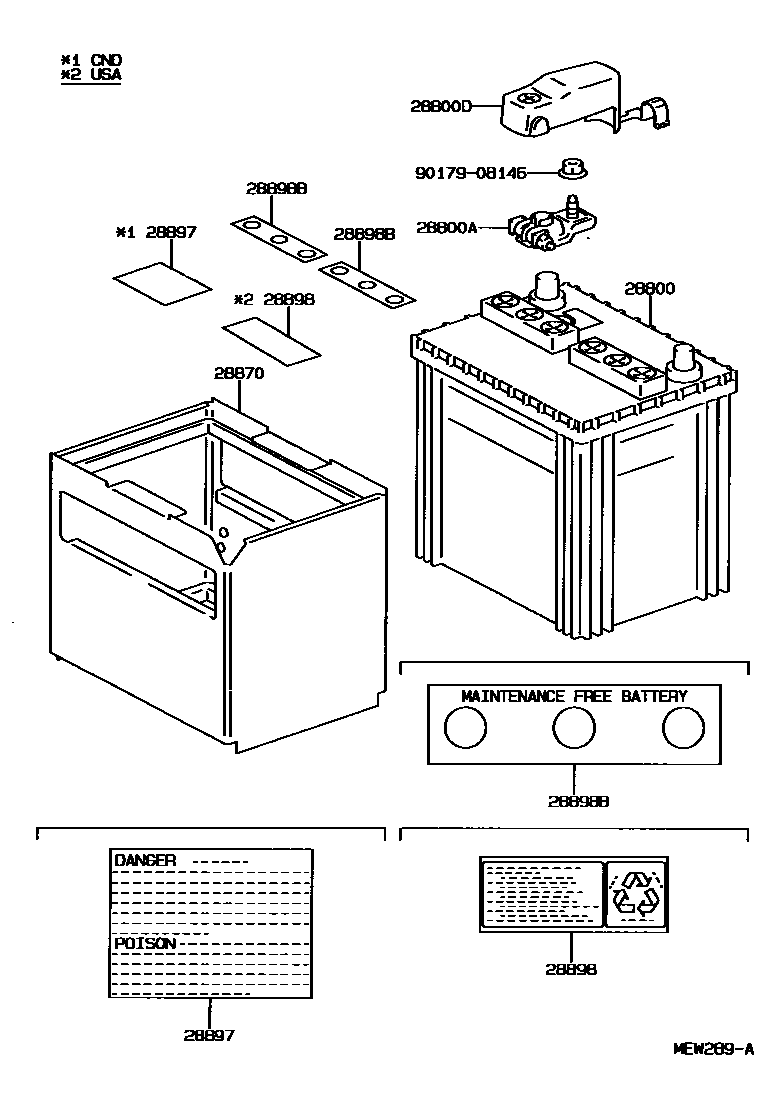

BATTERY & BATTERY CABLE

28800BATTERY

main28800-74141i2JZ#..JZA80..4FC199305-199610

80D26L

sub28800-74142

main28800-74142i2JZ#..JZA80..4FC199610-199808

80D26L

sub28800-64132

main28800-74151i2JZ#..JZA80..MTM199305-199610

75D26L

main28800-74152i2JZ#..JZA80..MTM199610-199808

75D26L

28800ATERMINAL, BATTERY POSITIVE

main90982-05037i2JZ#..JZA80199305-199808

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-50050i2JZ#..JZA80199305-199808

28870INSULATOR ASSY, BATTERY

main28870-46050i2JZ#..JZA80199305-199607

main28870-46080i2JZ#..JZA80199607-199808

28897PLATE, BATTERY CAUTION

main28897-38010i2JZGTE..JZA80..CND199308-199610

main28897-46020i2JZGTE..JZA80..CND199610-199709

28898PLATE, BATTERY

main28898-26010i2JZ#..JZA80..USA199305-199610

28898BPLATE, BATTERY

main28898-50130i2JZ#..JZA80199410-199808

9017908146

main90179-08146

8 parts on this diagram · 1 diagram in section
