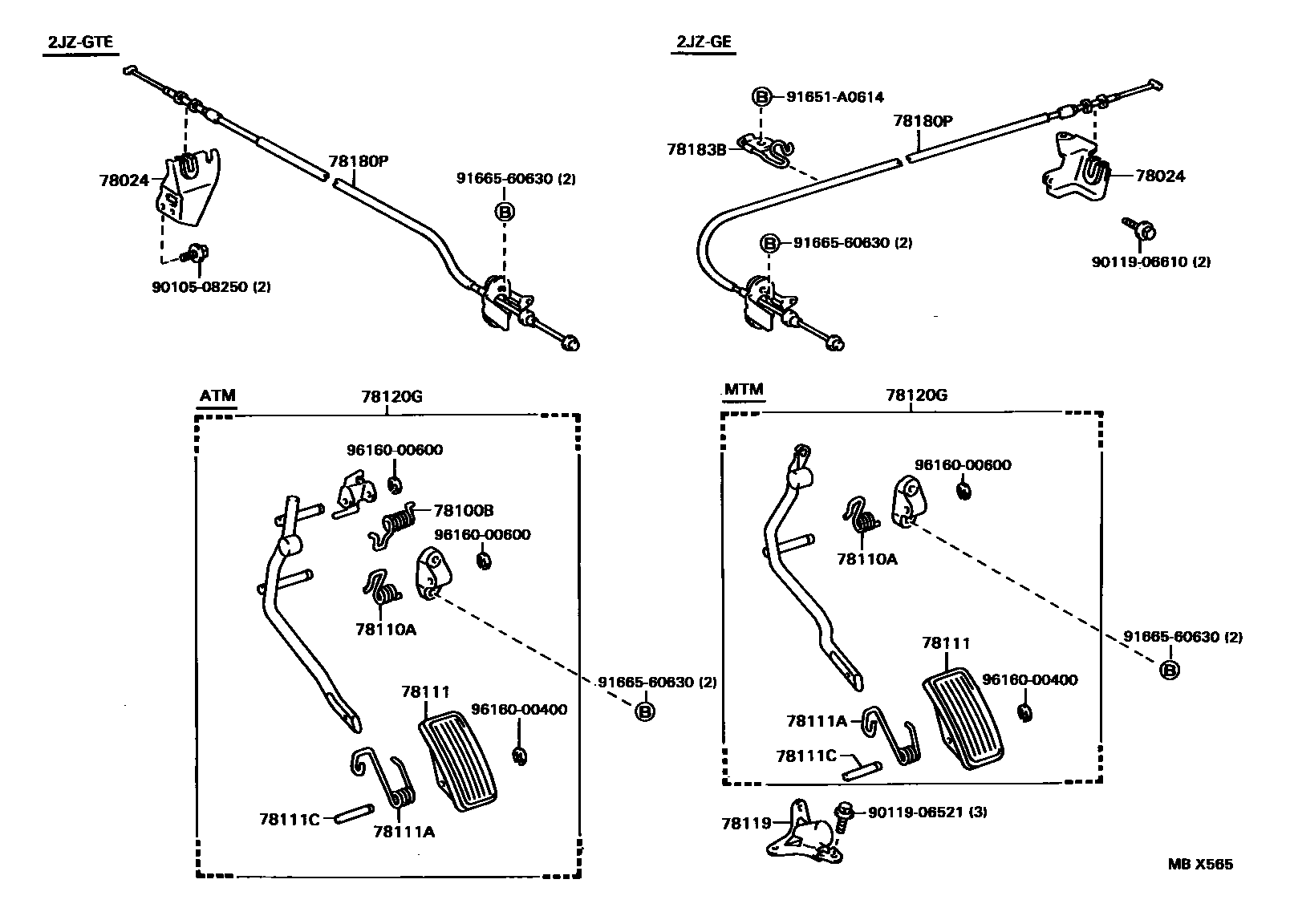

ACCELERATOR LINK

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-14140iJZA80..TWT199305-199808

main78024-24020iJZA80..5F199305-199709

main78024-24030iJZA80..4FC..TWC199305-199512

sub78024-24031

main78024-24031iJZA80..4FC..TWC199512-199709

78100BSPRING (FOR ACCELERATOR LINK)

main90508-29022iJZA80..4FC199305

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-23076iJZA80199305-199808

78111PEDAL, ACCELERATOR

main78111-12100iJZA80199305-199808

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23088iJZA80..4FC199305-199808

main90508-23121iJZA80..MTM199305-199808

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iJZA80199305-199808

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-24020iJZA80..MTM199305-199808

78120GROD ASSY, ACCELERATOR PEDAL

main78120-14500iJZA80..4FC199305-199808

main78120-14510iJZA80..MTM199305-199808

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-1B090iJZA80..TWT199305-199808

main78180-24070iJZA80..5F199305-199709

main78180-24130iJZA80..4FC..TWC199305-199709

sub78180-24131

main78180-24131iJZA80..TWC199709-199808

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-24030iJZA80..TWC199305-199808

9010508250

main90105-08250

9011906521

main90119-06521

9011906610

main90119-06610

91651A0614

main91651-A0614

9166560630

main91665-60630

9616000400

main96160-00400

9616000600

main96160-00600

17 parts on this diagram · 1 diagram in section
