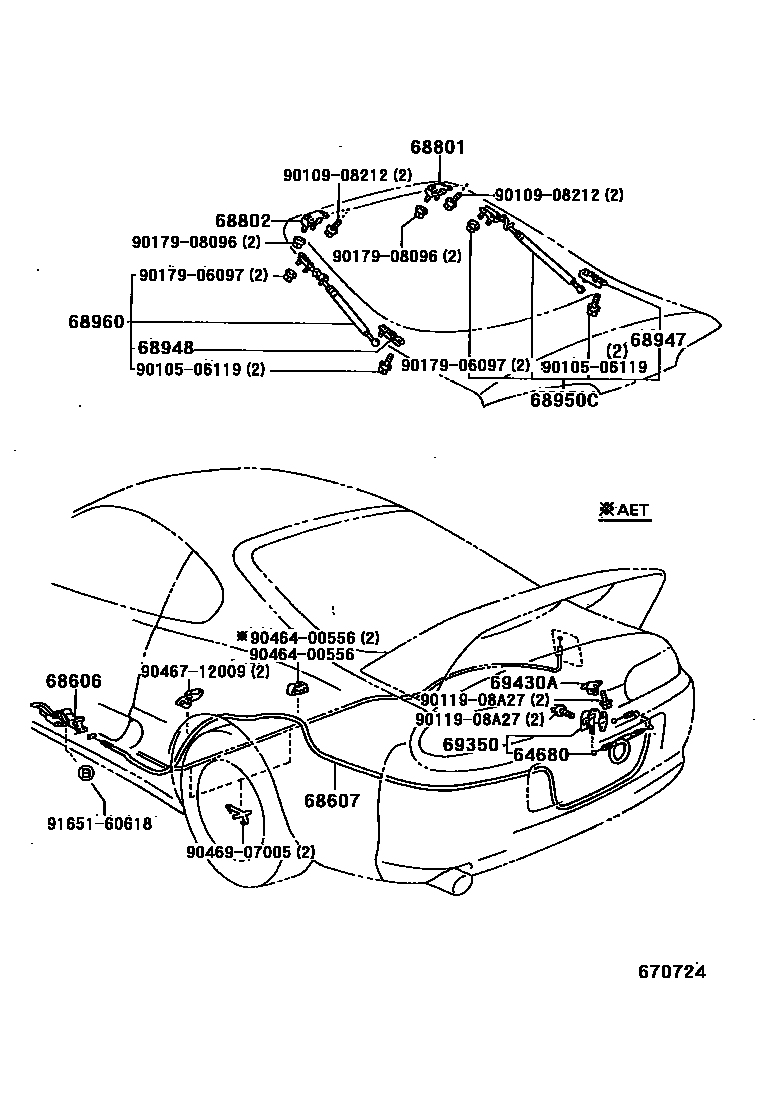

BACK DOOR LOCK & HANDLE

64680CABLE ASSY, BACK DOOR LOCK CONTROL

main64680-14110iJZA80199305-199808

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-20090iJZA80199305-199508

sub64606-20091

main64606-20091iJZA80199508-199808

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-14360iJZA80199305-199808

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-14050iJZA80199305-199808

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68801-14050iJZA80199305-199808

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-14010iJZA80199305-199808

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-14010iJZA80199305-199808

68950CSTAY ASSY, BACK DOOR, RH

main68950-19885iJZA80199305-199808

main68950-19895iJZA80199305-199808

W(REAR SPOILER)

68960STAY ASSY, BACK DOOR, LH

main68960-19575iJZA80199305-199808

main68960-19585iJZA80199305-199808

W(REAR SPOILER)

69350LOCK ASSY, BACK DOOR

main69350-14140iJZA80199305-199709

main69350-14150iJZA80199709-199808

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-14100iJZA80199305-199709

main69430-14110iJZA80199709-199808

9010506119

main90105-06119

9010908212

main90109-08212

9011908A27

main90119-08A27

9017906097

main90179-06097

9017908096

main90179-08096

9046400556

main90464-00556

9046712009

main90467-12009

9046907005

main90469-07005

9165160618

main91651-60618

20 parts on this diagram · 1 diagram in section
