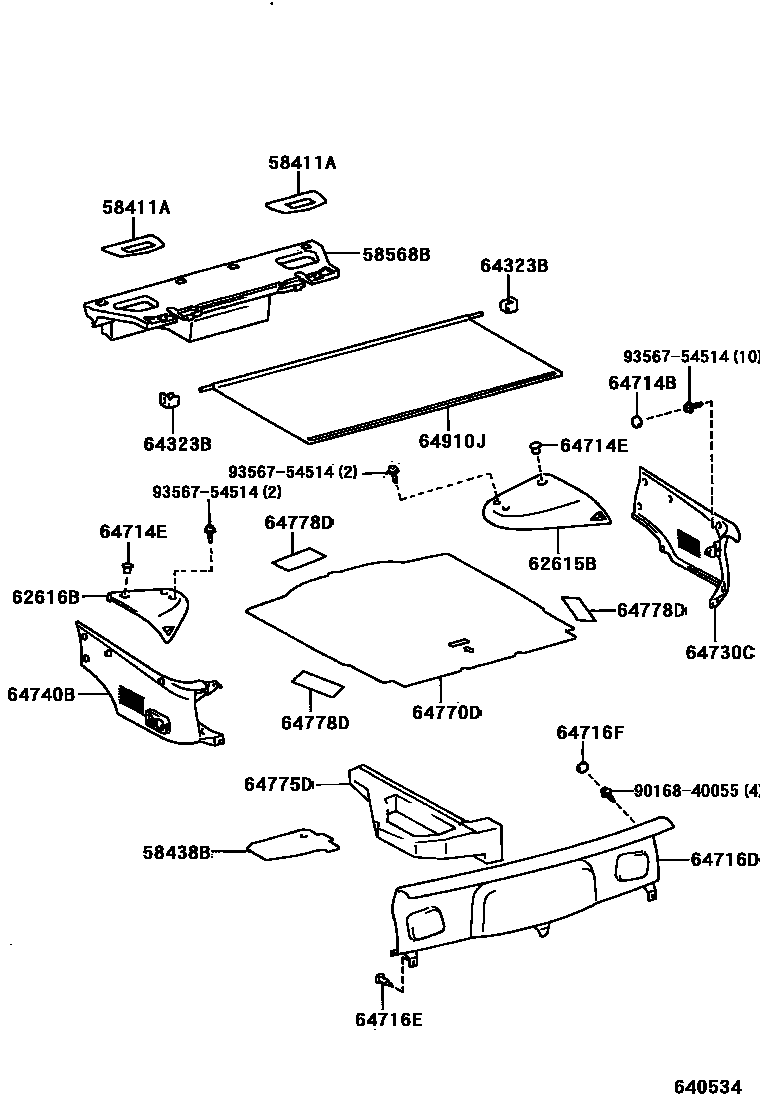

DECK BOARD & DECK TRIM COVER
58411ABOARD, DECK, NO.1
62615BCOVER, QUARTER WHEEL HOUSE, INNER RH
BLACK,TRIM0#,2#
62616BCOVER, QUARTER WHEEL HOUSE, INNER LH
BLACK,TRIM0#,2#
64323BCLAMP, TONNEAU COVER
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
64714BPLUG, HOLE(FOR DECK TRIM SIDE COVER)
64714ECLIP(FOR DECK TRIM SIDE COVER)
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
64716ECLIP(FOR DECK TRIM REAR COVER)
64716FPLUG, HOLE(FOR DECK TRIM REAR COVER)
64730CBOARD, DECK TRIM SIDE, RH
BLACK,TRIM0#,2#
64740BBOARD, DECK TRIM SIDE, LH
BLACK,TRIM0#,2#
64770DCOVER ASSY, SPARE WHEEL
64775DGUARD, SPARE WHEEL
64778DPROTECTOR, SPARE WHEEL
sub64768-53011
64910JCOVER ASSY, TONNEAU
BLACK,TRIM0#,2#
9016840055
main90168-40055
9356754514
main93567-54514
19 parts on this diagram · 1 diagram in section
