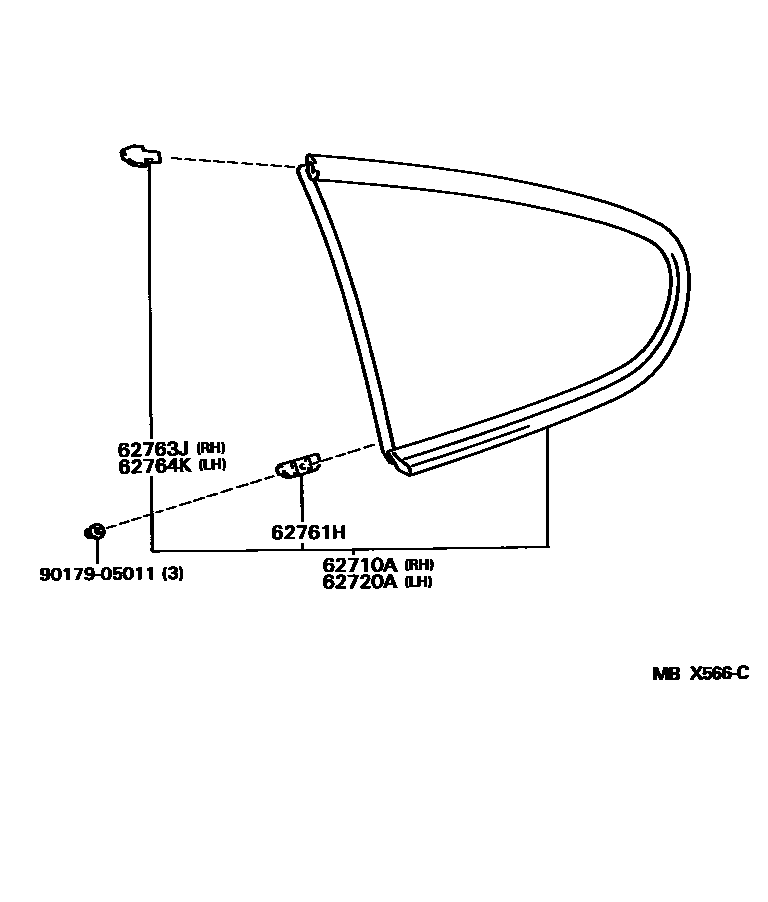

QUARTER WINDOW

0001 1 0002 1

62710AWINDOW ASSY, QUARTER, RH

main62710-14260iJZA80..LB199305-199505

*TT,T=3.1,BLUE

main62710-14261iJZA80..LB199505-199607

*TT,T=3.1,BLUE

sub62710-14280

main62710-14270iJZA80..AET199305-199505

*TT,T=3.1,BLUE

main62710-14271iJZA80..AET199505-199607

*TT,T=3.1,BLUE

sub62710-14290

main62710-14280iJZA80..LB199607-199808

*TT,T=3.1,GREEN

main62710-14290iJZA80..AET199607-199808

*TT,T=3.1,GREEN

62720AWINDOW ASSY, QUARTER, LH

main62720-14260iJZA80..LB199305-199505

*TT,T=3.1,BLUE

main62720-14261iJZA80..LB199505-199607

*TT,T=3.1,BLUE

main62720-14270iJZA80..AET199305-199505

*TT,T=3.1,BLUE

main62720-14271iJZA80..AET199505-199607

*TT,T=3.1,BLUE

main62720-14280iJZA80..LB199607-199808

*TT,T=3.1,GREEN

main62720-14290iJZA80..AET199607-199808

*TT,T=3.1,GREEN

62761HRETAINER, QUARTER WINDOW GLASS, FRONT

main62761-14050iJZA80199305-199505

62763JRETAINER, QUARTER WINDOW GLASS, UPPER

main62763-14060iJZA80..LB199305-199808

main62763-14070iJZA80..AET199305-199808

62764KRETAINER, QUARTER WINDOW GLASS, UPPER

main62763-14060iJZA80..LB199305-199808

main62764-14050iJZA80..AET199305-199808

9017905011

main90179-05011

6 parts on this diagram · 2 diagrams in section
