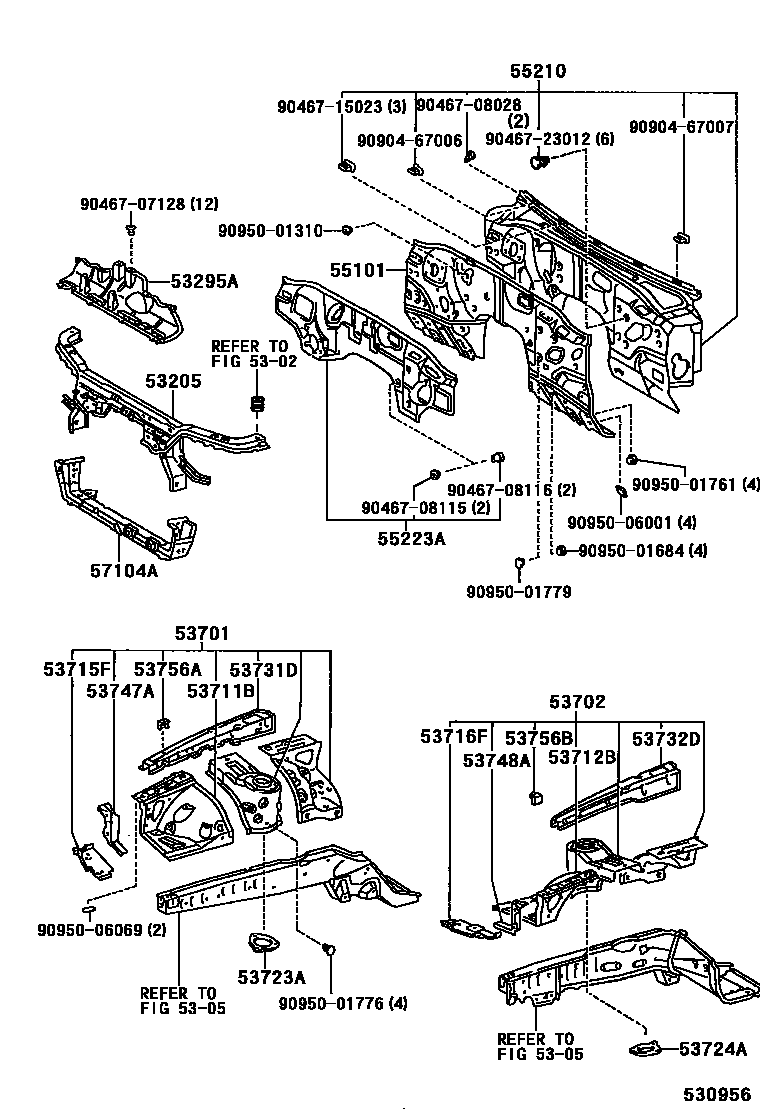

FRONT FENDER APRON & DASH PANEL
5302
5305
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53295ADEFLECTOR, RADIATOR UPPER AIR
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53715FAPRON, FENDER SIDE, RH
53716FAPRON, FENDER SIDE, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53747AEXTENSION, APRON FENDER SIDE, RH
53748AEXTENSION, APRON FENDER SIDE, LH
53756ABRACKET, SPEED CONTROL MOUNTING
53756BBRACKET, SPEED, CONTROL MOUNTING, LH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55223AINSULATOR, DASH PANEL, OUTER
57104AMEMBER SUB-ASSY, FRONT CROSS
9046707128
main90467-07128
9046708028
main90467-08028
9046708115
main90467-08115
9046708116
main90467-08116
9046715023
main90467-15023
9046723012
main90467-23012
9090467006
main90904-67006
9090467007
main90904-67007
9095001310
main90950-01310
9095001684
main90950-01684
9095001761
main90950-01761
9095001776
main90950-01776
9095001779
main90950-01779
9095006001
main90950-06001
9095006069
main90950-06069
37 parts on this diagram · 1 diagram in section
