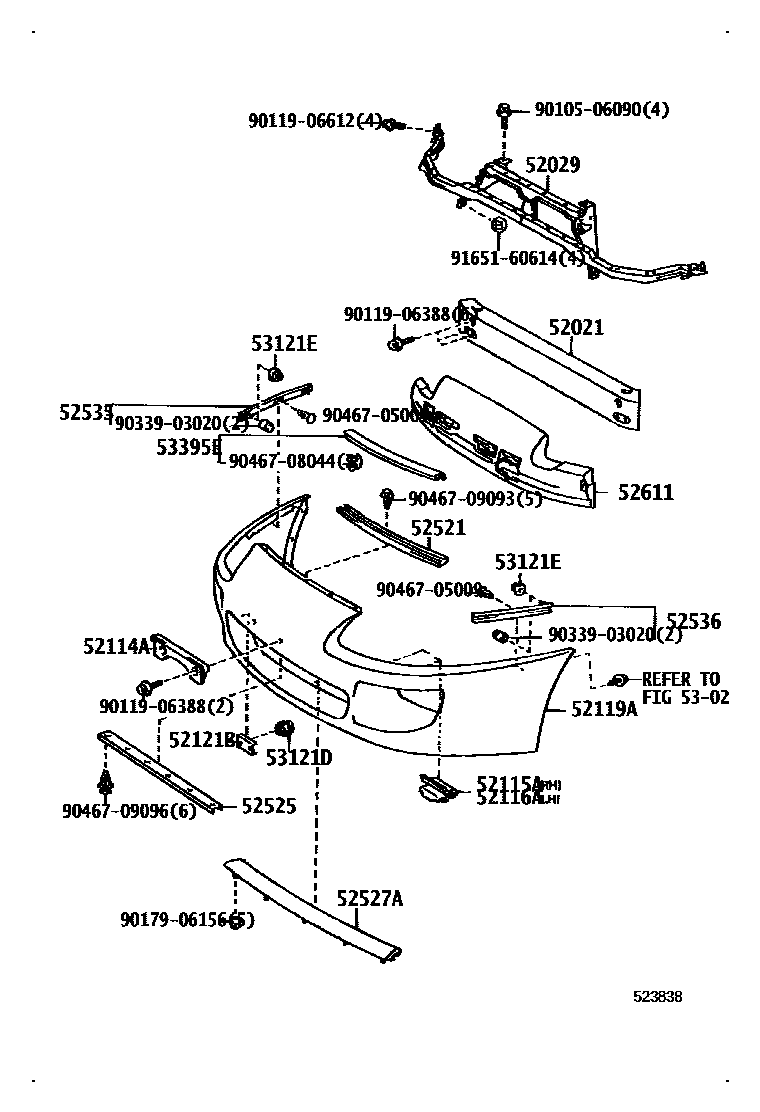

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-14180iJZA80199305-199808

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-14030iJZA80199305-199808

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-14100iJZA80199305-199808

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-14130×2iJZA80199305-199808

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-14130×2iJZA80199305-199808

52119ACOVER, FRONT BUMPER

main52119-14917iJZA80199305-199607

main52119-14921iJZA80199607-199808

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52121-24020×2iJZA80199305-199808

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-14090iJZA80199305-199808

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52525-24030×2iJZA80199305-199808

52527ARETAINER, FRONT BUMPER, LOWER CENTER NO.2

main52527-14050iJZA80199305-199808

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-14070iJZA80199305-199808

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-14030iJZA80199305-199808

52611ABSORBER, FRONT BUMPER ENERGY

main52611-14120iJZA80199305-199808

5302

53121DCLIP(FOR FRONT BUMPER), NO.2

main90468-04079×2iJZA80199305-199808

53121ECLIP(FOR FRONT BUMPER), NO.1

main90179-06097×4iJZA80199305-199408

sub90179-06206

main90179-06132×4iJZA80199408-199607

sub90179-06274

53395ESEAL, HOOD TO FRONT END PANEL

main53395-14010iJZA80199305-199808

9010506090

main90105-06090

9011906388

main90119-06388

9011906612

main90119-06612

9017906156

main90179-06156

9033903020

main90339-03020

9046705009

main90467-05009

9046708044

main90467-08044

9046709093

main90467-09093

9046709096

main90467-09096

9165160614

main91651-60614

27 parts on this diagram · 1 diagram in section
