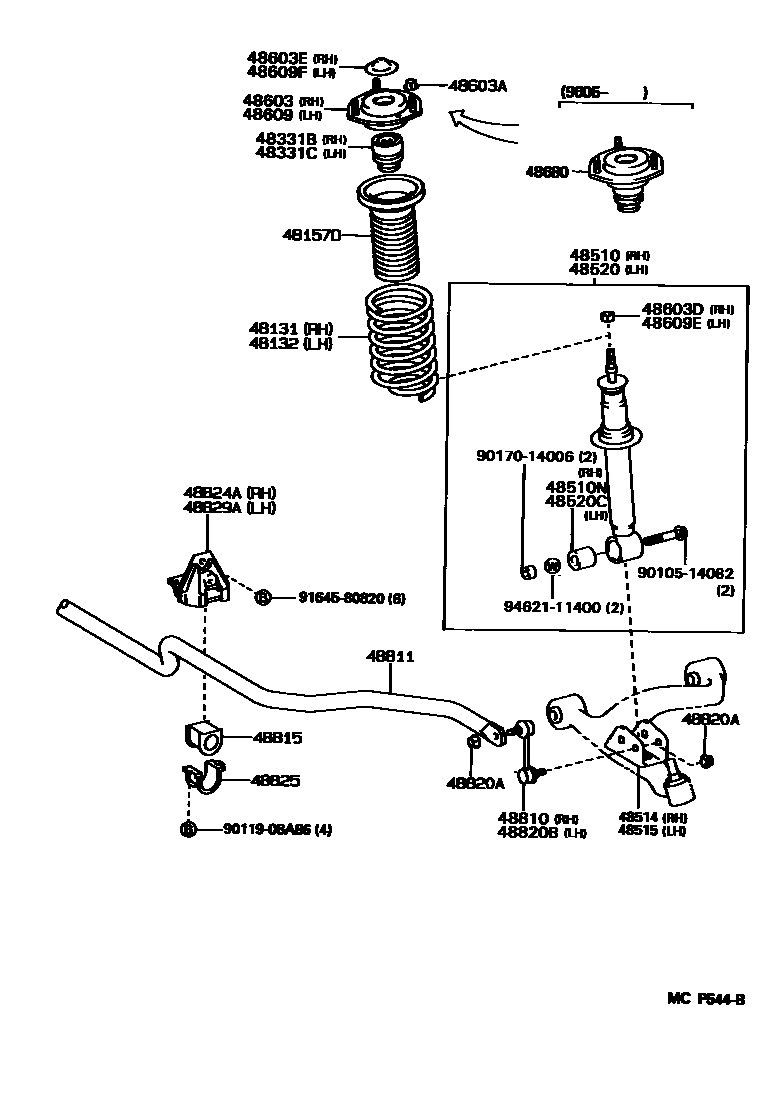

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-1D571iJZA80..TWC199305-199312

sub48131-1D572

main48131-1D572iJZA80..TWC199312-199607

main48131-1D591iJZA80..TWT199305-199312

sub48131-1D612

main48131-1D612iJZA80..TWT199312-199607

main48131-1D630iJZA80..6F199607-199808

main48131-1D670iJZA80..TWC199607-199808

main48131-1D690iJZA80..4FC..TWT199607-199808

sub48131-1D630

48132SPRING, FRONT COIL, LH

main48131-1D561iJZA80..TWC199312-199607

sub48131-1D572

main48131-1D581iJZA80..TWC199305-199312

sub48131-1D582

main48131-1D601iJZA80..TWT199305-199312

sub48131-1D602

main48131-1D602iJZA80..TWT199312-199607

sub48131-1D612

main48131-1D630iJZA80..4FC..TWT199607-199808

main48131-1D680iJZA80..TWC199607-199808

sub48131-1D670

main48131-24450iJZA80..6F199607-199808

48157DINSULATOR, FRONT COIL SPRING

main48157-24010iJZA80199305-199808

48331BBUMPER, FRONT SPRING, RH

main48331-14080iJZA80199305-199607

48331CBUMPER, FRONT SPRING, LH

main48331-14080iJZA80199305-199607

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-19275iJZA80..TWT199305-199607

main48510-19295iJZA80..TWC199305-199607

sub48510-19296

main48510-19555iJZA80..TWC199607-199808

main48510-19565iJZA80..6F199607-199808

main48510-19575iJZA80..4FC..TWT199607-199808

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main90389-14028iJZA80199305-199808

48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH

main48514-24010iJZA80199305-199808

48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH

main48515-24010iJZA80199305-199808

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-19275iJZA80..TWT199305-199607

main48510-19295iJZA80..TWC199305-199607

sub48510-19296

main48510-19555iJZA80..TWC199607-199808

main48510-19565iJZA80..6F199607-199808

main48510-19575iJZA80..4FC..TWT199607-199808

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main90389-14028iJZA80199305-199808

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48680-14050iJZA80199305-199506

sub48680-14051

main48680-14051iJZA80199506-199607

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-10200iJZA80199305-199808

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main94187-11200iJZA80199305-199808

sub90177-12002

48603EPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT RH)

main90950-01659iJZA80199305-199808

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48680-14050iJZA80199305-199506

sub48680-14051

main48680-14051iJZA80199506-199607

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main94187-11200iJZA80199305-199808

sub90177-12002

48609FPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT LH)

main90950-01659iJZA80199305-199808

48680SUPPORT ASSY, FRONT SUSPENSION

main48680-14060iJZA80199607-199808

48810LINK ASSY, FRONT STABILIZER, LH

main48820-24010iJZA80199305-199808

48811BAR, STABILIZER, FRONT

main48811-14460iJZA80..TWC199607-199808

main48811-24100iJZA80199305-199808

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14080iJZA80199305-199808

main48815-14090iJZA80..TWC199607-199808

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10054iJZA80199305-199808

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-24010iJZA80199305-199808

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-24010iJZA80199305-199808

48825BRACKET, STABILIZER, NO.2

main48824-24030iJZA80199305-199808

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48809-24020iJZA80199305-199808

9010514082

main90105-14082

9011908A86

main90119-08A86

9017014006

main90170-14006

9164580820

main91645-80820

9462111400

main94621-11400

32 parts on this diagram · 1 diagram in section
