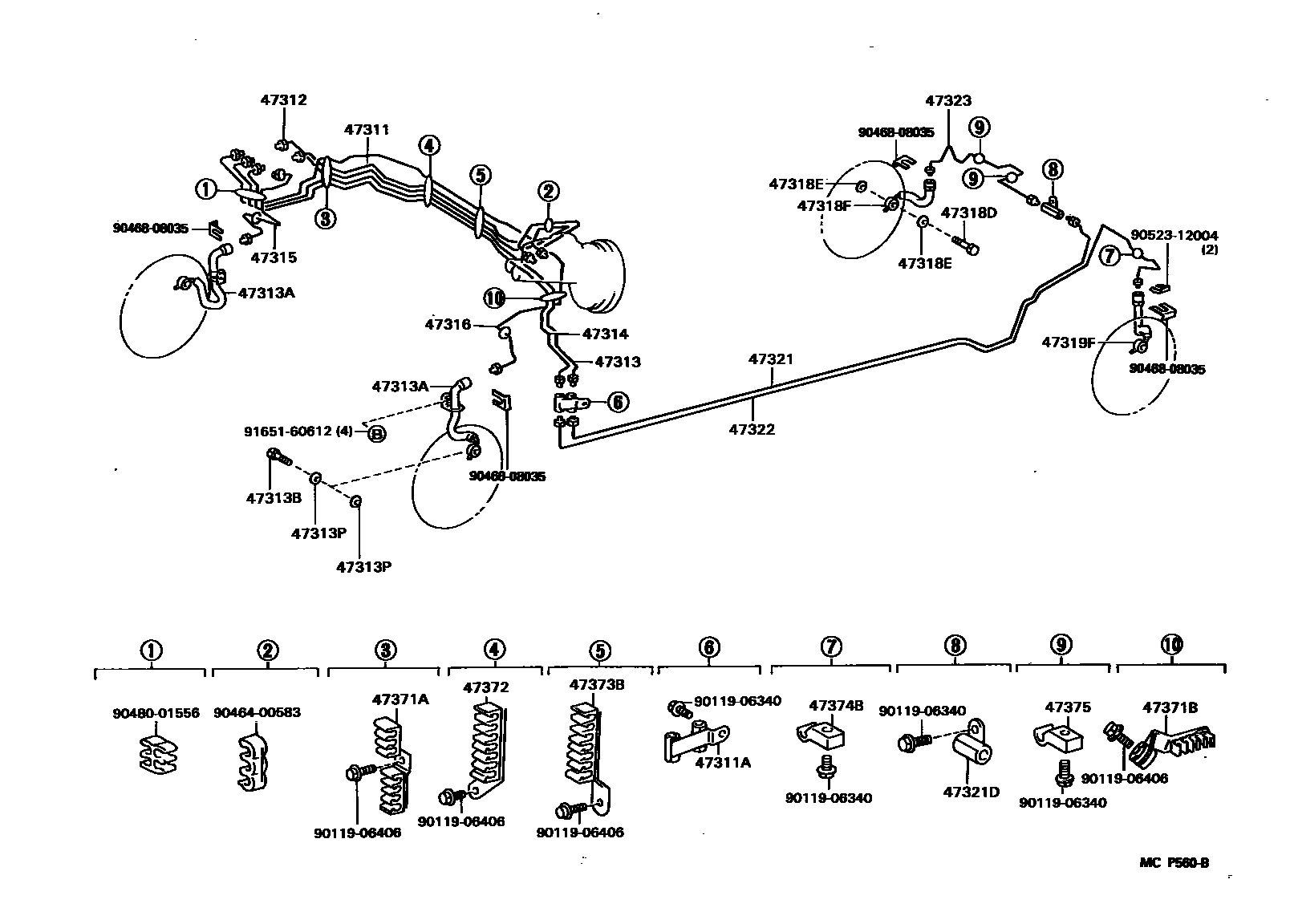

BRAKE TUBE & CLAMP

0001 1 0003 1 0004 1 0006 1 0007 1 0008 1 0009 1

47311TUBE, FRONT BRAKE, NO.1

main47311-14430iJZA80..TWT199305-199601

main47311-14440iJZA80199305-199607

main47311-14470iJZA80..TWC199607-199808

main47311-14480iJZA80..TWT199607-199808

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10213iJZA80..TWC199607-199808

main90412-10220iJZA80..TWT199305-199808

47312TUBE, FRONT BRAKE, NO.2

main47312-14310iJZA80199607-199808

main47321-14280iJZA80199305-199607

main47324-14150iJZA80..TWT199305-199601

47313TUBE, FRONT BRAKE, NO.3

main47313-14340iJZA80..TWC199607-199808

main47313-14350iJZA80..TWT199607-199808

main47322-14340iJZA80..TWT199305-199601

main47322-14350iJZA80..TWC199305-199607

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main47330-14010iJZA80199305-199508

RH

sub47330-14011

sub90468-08035

main47330-14011iJZA80199508-199808

RH

main47340-14010iJZA80199305-199508

LH

sub47340-14011

sub90468-08035

main47340-14011iJZA80199508-199808

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10042iJZA80199305-199808

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-24010iJZA80199305-199808

47314TUBE, FRONT BRAKE, NO.4

main47323-14130iJZA80199305-199607

47315TUBE, FRONT BRAKE, NO.5

main47312-14270iJZA80199305-199607

47316TUBE, FRONT BRAKE, NO.6

main47313-14290iJZA80199305-199310

sub47313-14291

main47313-14291iJZA80199310-199607

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10042iJZA80199305-199808

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-24010iJZA80199305-199808

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02745iJZA80199305-199508

sub90947-02872

sub90468-08035

main90947-02872iJZA80199508-199609

sub90947-02948

main90947-02948iJZA80199609-199808

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02745iJZA80199305-199508

sub90947-02872

sub90468-08035

main90947-02872iJZA80199508-199609

sub90947-02948

main90947-02948iJZA80199609-199808

47321TUBE, REAR BRAKE, NO.1

main47321-14300iJZA80199607-199808

main47326-14040iJZA80199305-199607

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10213iJZA80199305-199808

main90413-10286iJZA80..TWC199607-199808

47322TUBE, REAR BRAKE, NO.2

main47322-14400iJZA80199607-199808

main47327-14030iJZA80199305-199607

47323TUBE, REAR BRAKE, NO.3

main47323-14150iJZA80..TWT199607-199808

main47328-14030iJZA80199305-199607

47371ACLAMP, BRAKE TUBE, NO.1

main47371-14130iJZA80..TWT199305-199601

main47371-14190iJZA80..TWC199305-199808

47371BCLAMP, BRAKE TUBE, NO.6

main47371-14170iJZA80..4FC199305-199808

47372CLAMP, BRAKE TUBE, NO.2

main47371-14140iJZA80..TWT199305-199601

main47371-14200iJZA80..TWC199305-199808

47373BCLAMP, BRAKE TUBE, NO.3

main47371-14150iJZA80..TWT199305-199601

main47371-14210iJZA80..TWC199305-199808

47374BCLAMP, BRAKE TUBE, NO.4

main47371-30180iJZA80199305-199808

47375CLAMP, BRAKE TUBE, NO.5

main47371-30180iJZA80199305-199808

9011906340

main90119-06340

9011906406

main90119-06406

9046400583

main90464-00583

9046808035

main90468-08035

9048001556

main90480-01556

9052312004

main90523-12004

9165160612

main91651-60612
