04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-14130i199305-199808

main04479-24030i199305-199808

04492PAD KIT, DISC BRAKE, REAR

main04492-14150i199305-199309

sub04492-30140

main04492-14161i199305-199505

sub04466-14040

main04492-30140i199309-199401

sub04492-50040

main04492-50040i199401-199505

sub04466-30030

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-14010i199305-199808

main31478-30010i199305-199808

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20030i199305-199808

main47547-27030i199305-199808

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-50010i199305-199808

SUB PIN SIDE

main47715-50030i199305-199808

MAIN PIN SIDE

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-50020i199305-199808

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47716-50040i199305-199808

47718BPLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)

main47717-50020i199305-199808

47719BPLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)

main47717-50040i199305-199808

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-24060i199305-199808

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164i199305-199808

*8-1.00PX23-15

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-24060i199305-199808

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-14240i199305-199808

main47730-14270i199305-199808

47731BPISTON, REAR DISC BRAKE

main47731-14120i199305-199808

main47731-50040i199305-199808

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-45002i199305-199808

main90522-50002i199305-199808

47742ASHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47744-24020i199305-199607

main47745-14090i199305-199607

RH

main47745-14120i199305-199607

LH

47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47743-50020i199305-199808

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47744-14160i199305-199607

RH

main47744-14180i199305-199607

LH

main47745-24020i199305-199607

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47744-14160i199305-199607

LH

main47744-14180i199305-199607

RH

main47745-24020i199305-199607

47745DSHIM, ANTI-SQUEAL, NO.4(FOR REAR DISC BRAKE)

main47744-24020i199305-199607

main47745-14090i199305-199607

LH

main47745-14120i199305-199607

RH

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-14250i199305-199808

main47750-14280i199305-199808

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010i199305-199808

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-50010i199305-199808

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174i199305-199808

9011016001

main90110-16001

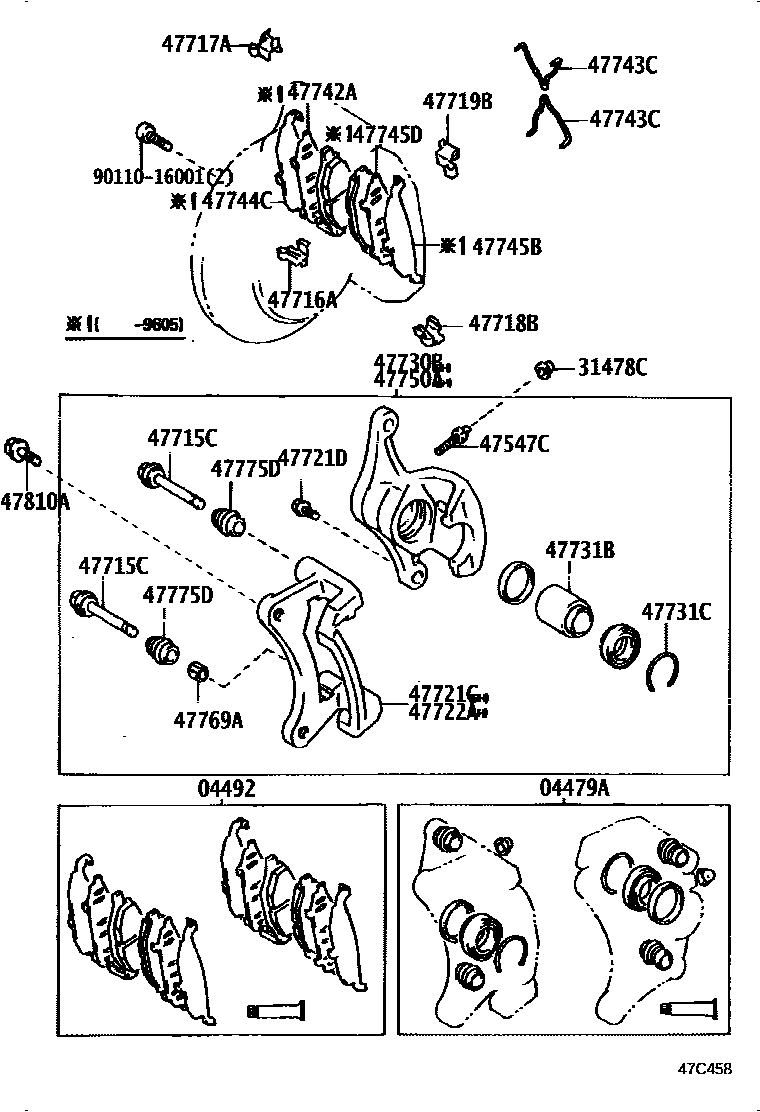

REAR DISC BRAKE CALIPER & DUST COVER
