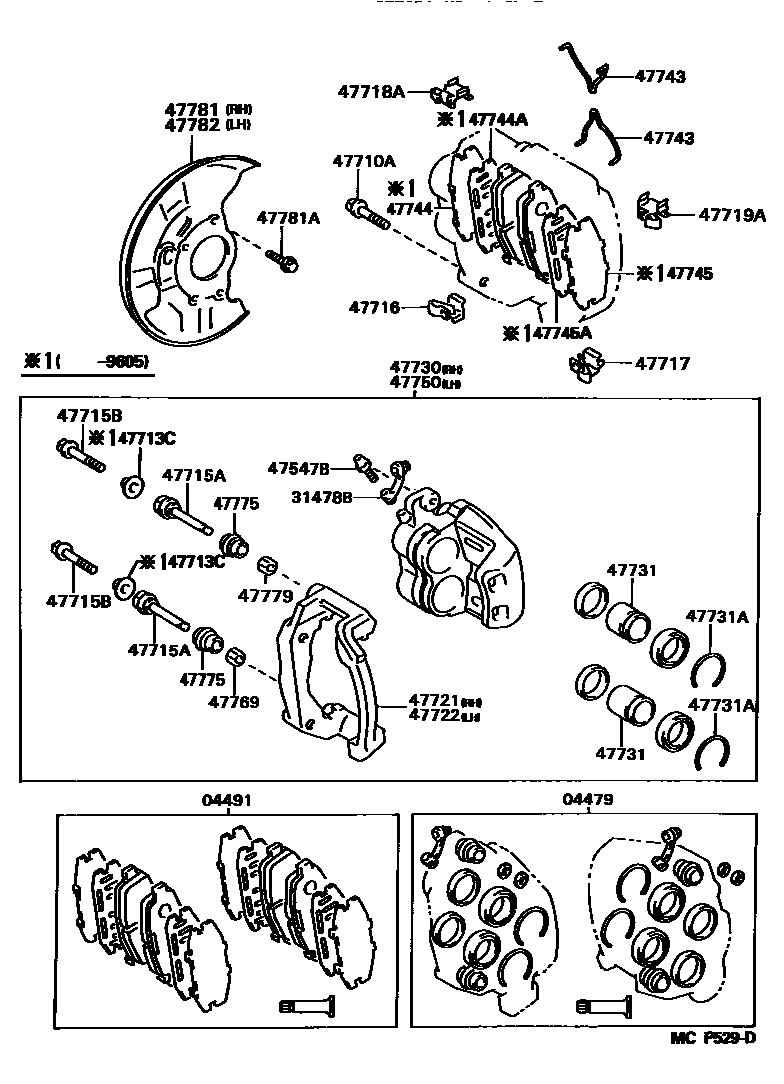

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-14120iJZA80..TWC¥2,940199305-199808

main04479-14140iJZA80..TWT¥3,360199305-199808

04491PAD KIT, DISC BRAKE, FRONT

main04491-14320iJZA80..TWC¥14,200199305-199401

sub04491-14360¥14,200

main04491-14331iJZA80..TWT¥13,600199305-199505

sub04465-14150¥14,300

main04491-14360iJZA80..TWC¥14,200199401-199505

sub04465-14080¥13,400

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iJZA80..TWT¥190199305-199808

main31478-24030iJZA80..TWC¥270199305-199808

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030iJZA80..TWT¥230199305-199808

main47547-27040iJZA80..TWC¥300199305-199808

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12175iJZA80¥160199305-199808

*12-1.25PX35-27

47713CCOLLAR(FOR FRONT DISC BRAKE CYLINDER)

main90389-08101iJZA80..TWC¥190199305-199508

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-24010iJZA80..TWC¥750199305-199808

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90109-08214iJZA80..TWC¥140199305-199808

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-24010iJZA80..TWC¥460199305-199808

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-24020iJZA80..TWC¥460199305-199808

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-24010iJZA80..TWC¥390199305-199808

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-24020iJZA80..TWC¥390199305-199808

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-14170iJZA80..TWC¥11,600199305-199808

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-14060iJZA80..TWC¥11,600199305-199808

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-14250iJZA80..TWC¥53,700199305-199408

sub47730-24082¥54,300

main47730-14260iJZA80..TWT¥46,900199305-199808

main47730-14280iJZA80..TWC¥41,600199408-199508

sub47730-14281¥53,600

main47730-14281iJZA80..TWC¥53,600199508-199808

47731PISTON, FRONT DISC BRAKE

main47731-14110iJZA80..TWT¥950199305-199808

main47731-14130iJZA80..TWC¥1,940199305-199808

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-48044iJZA80..TWT¥210199305-199808

main90522-50002iJZA80..TWC¥230199305-199808

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-24020iJZA80..TWC¥320199305-199808

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47745-14060iJZA80..TWC¥270199305-199607

main47745-14100iJZA80..TWT¥270199305-199607

RH

main47745-14110iJZA80..TWT¥270199305-199607

LH

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-14130iJZA80..TWC¥270199305-199607

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-14060iJZA80..TWC¥270199305-199607

main47745-14100iJZA80..TWT¥270199305-199607

LH

main47745-14110iJZA80..TWT¥270199305-199607

RH

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47744-14130iJZA80..TWC¥270199305-199607

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-14260iJZA80..TWC¥53,700199305-199408

sub47750-24082¥54,300

main47750-14270iJZA80..TWT¥46,900199305-199808

main47750-14290iJZA80..TWC¥41,600199408-199508

sub47750-14291¥53,600

main47750-14291iJZA80..TWC¥53,600199508-199808

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iJZA80..TWC¥50199305-199808

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-50010iJZA80..TWC¥580199305-199808

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47769-50020iJZA80..TWC¥360199305-199808

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-14150iJZA80..TWC¥1,980199305-199808

main47781-14160iJZA80..TWT¥2,190199305-199808

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iJZA80¥90199305-199808

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-14150iJZA80..TWC¥1,980199305-199808

main47782-14160iJZA80..TWT¥2,190199305-199808

29 parts on this diagram · 3 diagrams in section
