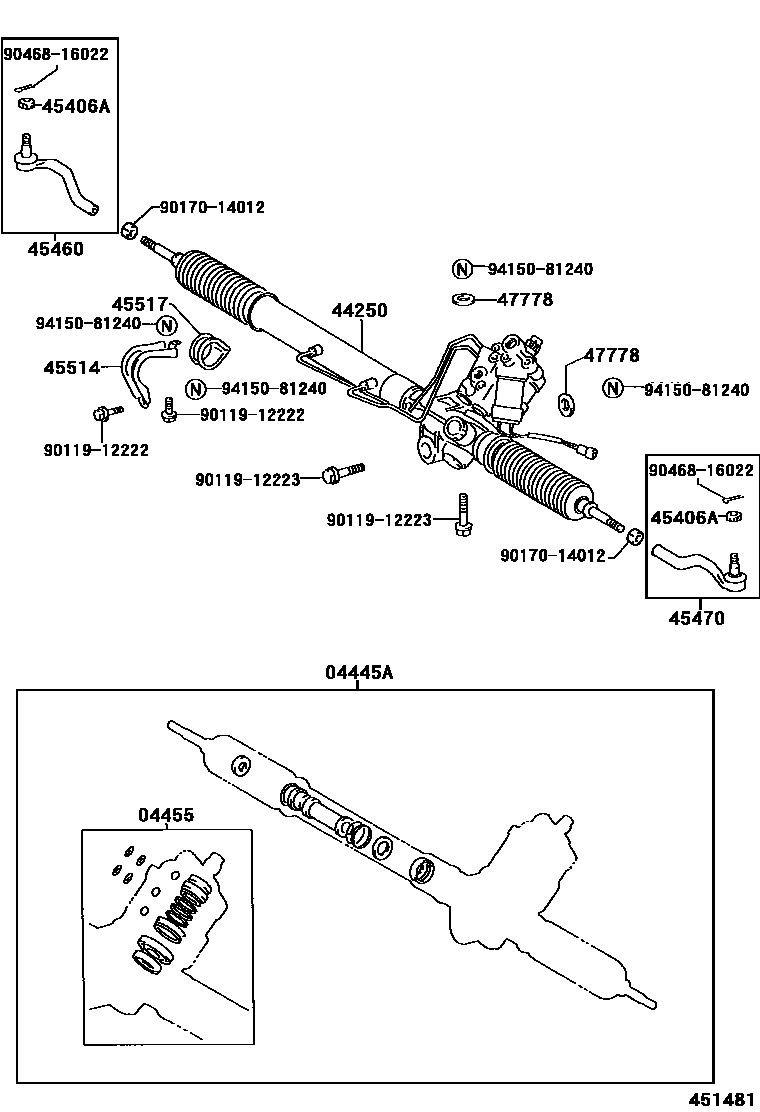

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-14040iJZA80199305-199808

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-24051iJZA80199305-199808

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-14220iJZA80199305-199408

sub44250-14221

sub89656-14010

main44250-14221iJZA80199408-199505

sub44250-14222

sub89650-14082

sub89650-14102

main44250-14222iJZA80199505-199607

sub44250-14240

main44250-14240iJZA80199607-199808

45406ANUT, CASTLE(FOR TIE ROD)

main90171-12002iJZA80199305-199808

45460ROD ASSY, TIE, RH

main45460-19235iJZA80199305

45470ROD ASSY, TIE, LH

main45470-19065iJZA80199305

45514BRACKET, STEERING RACK HOUSING, NO.1

main45515-24030iJZA80199305-199808

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-14040iJZA80199305-199808

47778RETAINER, STEERING RACK HOUSING

main47778-24010iJZA80199305-199808

9011912222

main90119-12222

9011912223

main90119-12223

9017014012

main90170-14012

9046816022

main90468-16022

9415081240

main94150-81240

14 parts on this diagram · 2 diagrams in section
