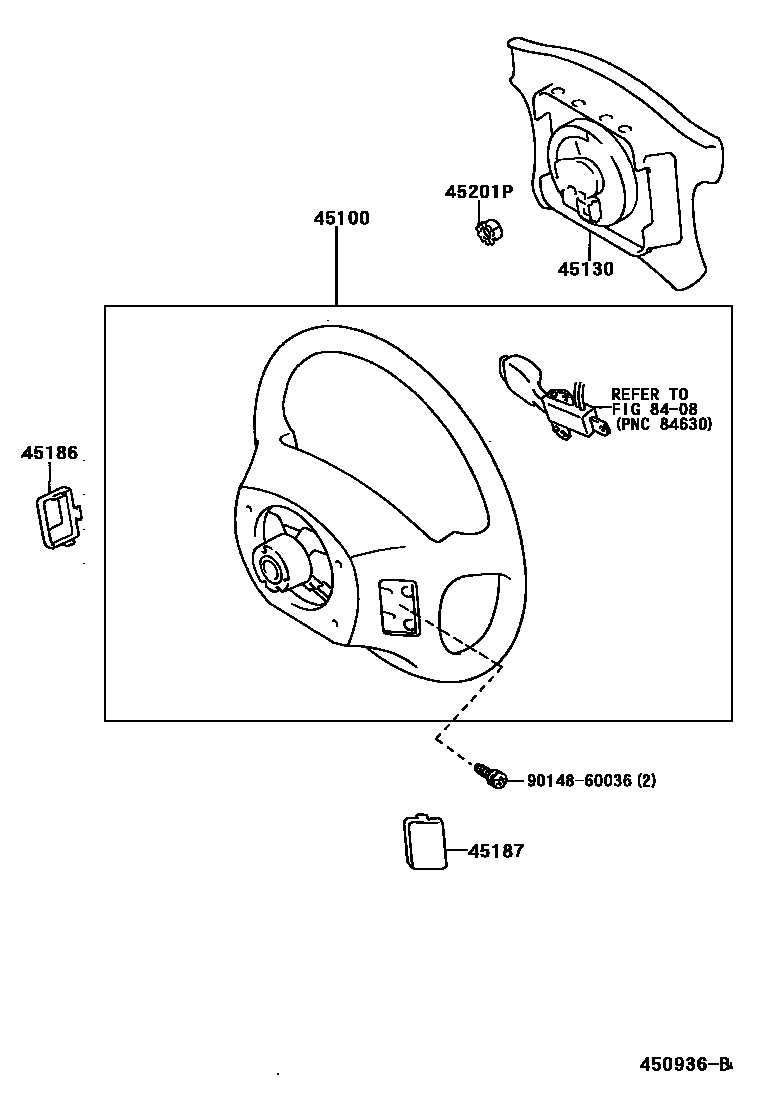

STEERING WHEEL

0001 14-SPOKE, W(*80 & CRUISE CONTR0002 13-SPOKE, W(*80 & CRUISE CONTR

45100WHEEL ASSY, STEERING

main45100-14550-C0iJZA80199305-199607

4-SPOKE,W(*80 & CRUISE CONTROL),BLACK,TRIM0#,2#

main45100-14630-C0iJZA80199607-199709

4-SPOKE,LEATHER,W(*80 & CRUISE CONTROL),BLACK,TRIM0#,2#

main45100-14650-C0iJZA80199709-199808

3-SPOKE,LEATHER,W(*80 & CRUISE CONTROL),BLACK,TRIM0#,2#

sub45100-14650

45130BUTTON ASSY, HORN

main45130-14300-C0iJZA80199305-199607

BLACK,TRIM0#,2#

sub45130-14330

main45130-14330-C0iJZA80199607-199709

BLACK,TRIM0#,2#

main45130-14360-C0iJZA80199709-199808

BLACK,TRIM0#,2#

sub45130-14360

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-14020-C0iJZA80199305-199709

BLACK,TRIM0#,2#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-14020-C0iJZA80199305-199709

BLACK,TRIM0#,2#

45201PNUT, STEERING WHEEL SET

main90179-12071iJZA80199305-199808

9014860036

main90148-60036

6 parts on this diagram · 2 diagrams in section
