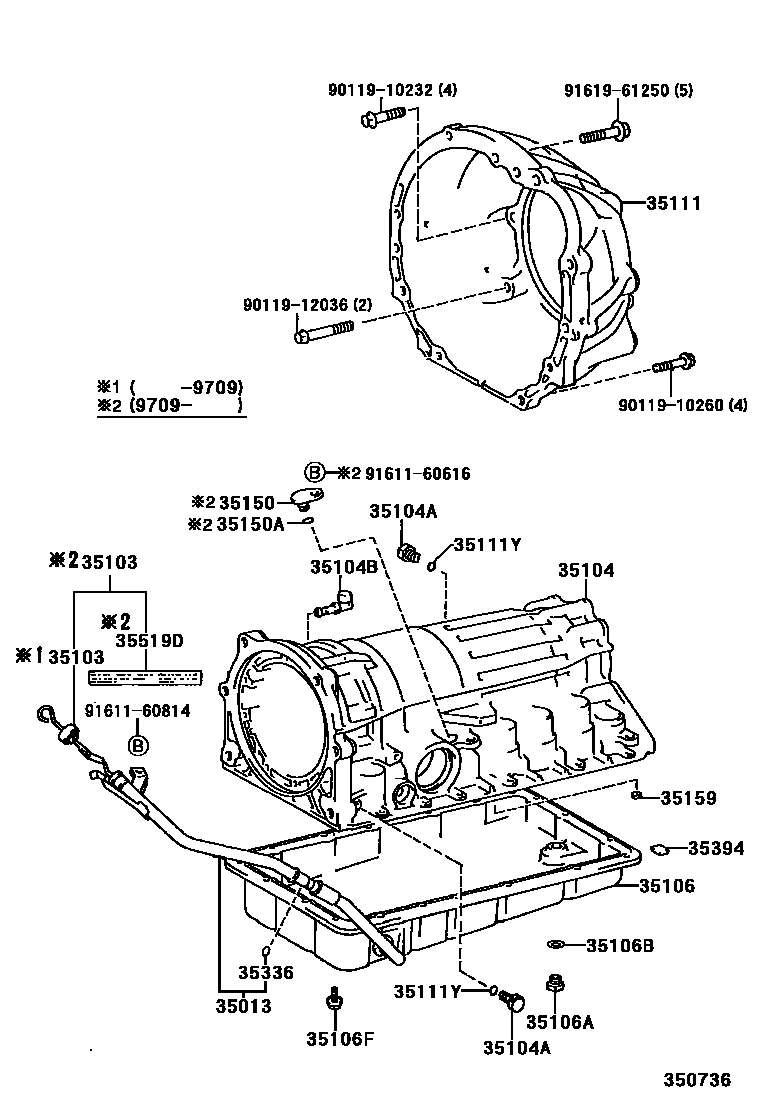

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A340E 0002 1A340E

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-14150iJZA80..4FC..TWT199305-199607

main35013-14160iJZA80..4FC..TWT199607-199808

main35013-24050iJZA80..4FC..TWC199305-199505

main35013-24090iJZA80..4FC..TWC199505-199808

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-14100iJZA80..4FC..TWT199305-199309

sub35103-14101

main35103-14101iJZA80..4FC..TWT199309-199607

main35103-14110iJZA80..4FC..TWT199607-199707

sub35103-14111

main35103-14111iJZA80..4FC..TWT199707-199808

main35103-24040iJZA80..4FC..TWC199305-199505

main35103-24080iJZA80..4FC..TWC199505-199709

main35103-24100iJZA80..TWC199709-199808

sub35103-24101

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-30133iJZA80..4FC..TWC199305-199709

main35104-30170iJZA80..4FC..TWT199305-199808

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iJZA80..4FC199305-199808

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03108iJZA80..4FC199305-199808

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-24020iJZA80..4FC..TWC199305-199709

main35106-30130iJZA80..4FC..TWT199305-199808

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iJZA80..4FC..TWC199305-199709

sub90341-10011

main90341-10012iJZA80..4FC..TWT199305-199808

sub90341-10011

main90341-10018iJZA80..TWC199709-199808

sub90341-10011

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iJZA80..4FC..TWC199305-199709

main35178-50010iJZA80..4FC..TWT199305-199808

sub35178-30010

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06513iJZA80..4FC199305-199808

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-22081iJZA80..4FC..TWC199305-199709

main35111-30140iJZA80..4FC..TWT199305-199808

main35111-30150iJZA80..TWC199709-199808

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iJZA80..4FC199305-199808

35150PLUG ASSY, TRANSMISSION CASE

main35150-30010iJZA80..4FC..TWT199305-199808

35150ARING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)

main90301-09012iJZA80..4FC..TWT199305-199808

35159GASKET, BRAKE DRUM

main35159-30010iJZA80..4FC199305-199808

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iJZA80..4FC199305-199808

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iJZA80..4FC199305-199808

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-24020iJZA80..4FC..TWT199309-199707

main35519-30010iJZA80..4FC..TWT199707-199808

9011910232

main90119-10232

9011910260

main90119-10260

9011912036

main90119-12036

9161160616

main91611-60616

9161160814

main91611-60814

9161961250

main91619-61250

23 parts on this diagram · 2 diagrams in section
