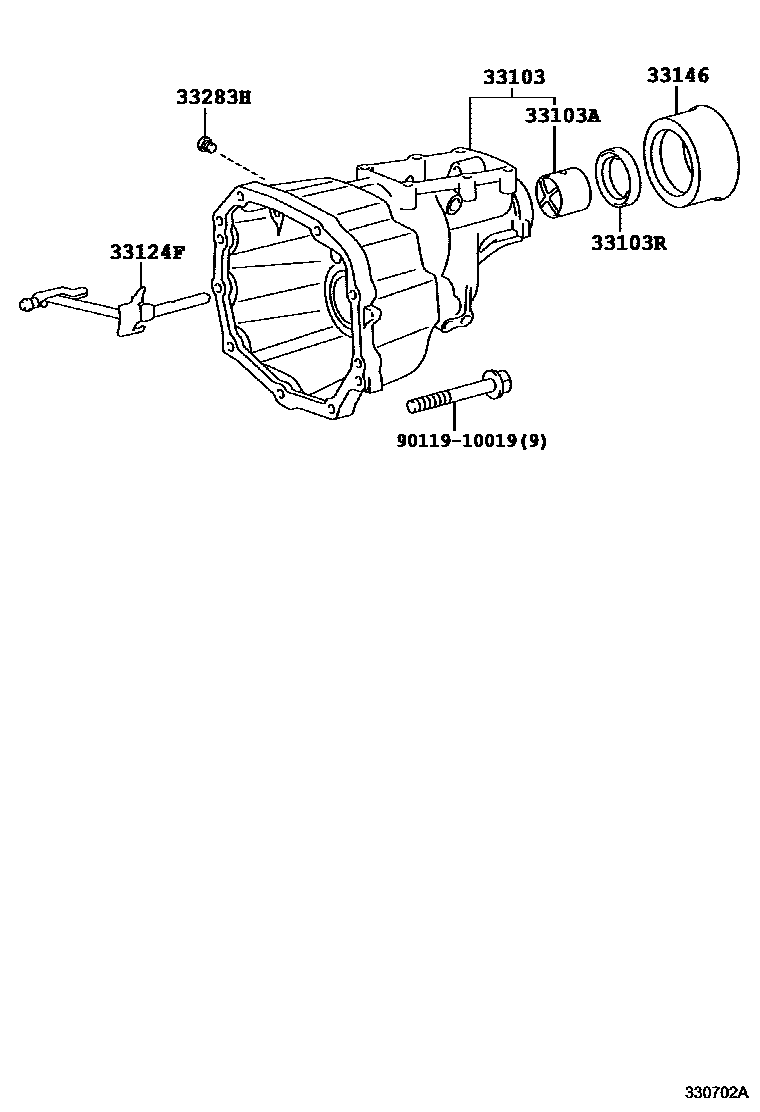

EXTENSION HOUSING (MTM)

0001 1W58 0002 1V160

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-0W040iJZA80..6F199305-199410

main33103-0W041iJZA80..6F199607-199808

main33103-30201iJZA80..5F199305-199709

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-73105iJZA80..5F199305-199709

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90080-31029iJZA80..6F199305-199808

main90311-38032iJZA80..5F199305-199709

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33106-30040iJZA80..5F199305-199709

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30020iJZA80..5F199305-199709

33283HPLUG, W/HEAD STRAIGHT SCREW

main90341-10065iJZA80..5F199305-199709

9011910019

main90119-10019

7 parts on this diagram · 2 diagrams in section
