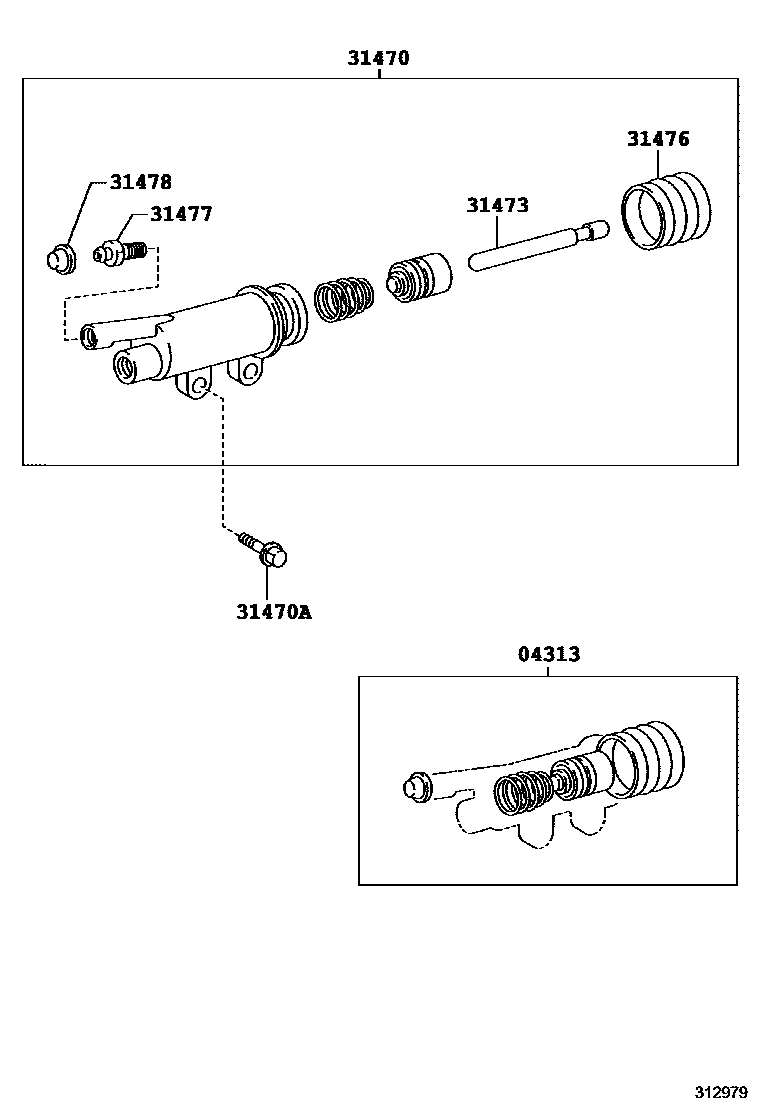

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-14020iJZA80..6F199305-199808

main04313-17010iJZA80..5F199305-199605

main04313-22030iJZA80..5F199605-199709

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-14060iJZA80..6F199305-199808

main31470-22120iJZA80..5F199305-199709

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iJZA80..MTM199305-199808

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14030iJZA80..6F199305-199808

main31473-20031iJZA80..5F199605-199709

main31473-22010iJZA80..5F199305-199605

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iJZA80..MTM199305-199808

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iJZA80..MTM199305-199808

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iJZA80..MTM199305-199808

7 parts on this diagram · 1 diagram in section
