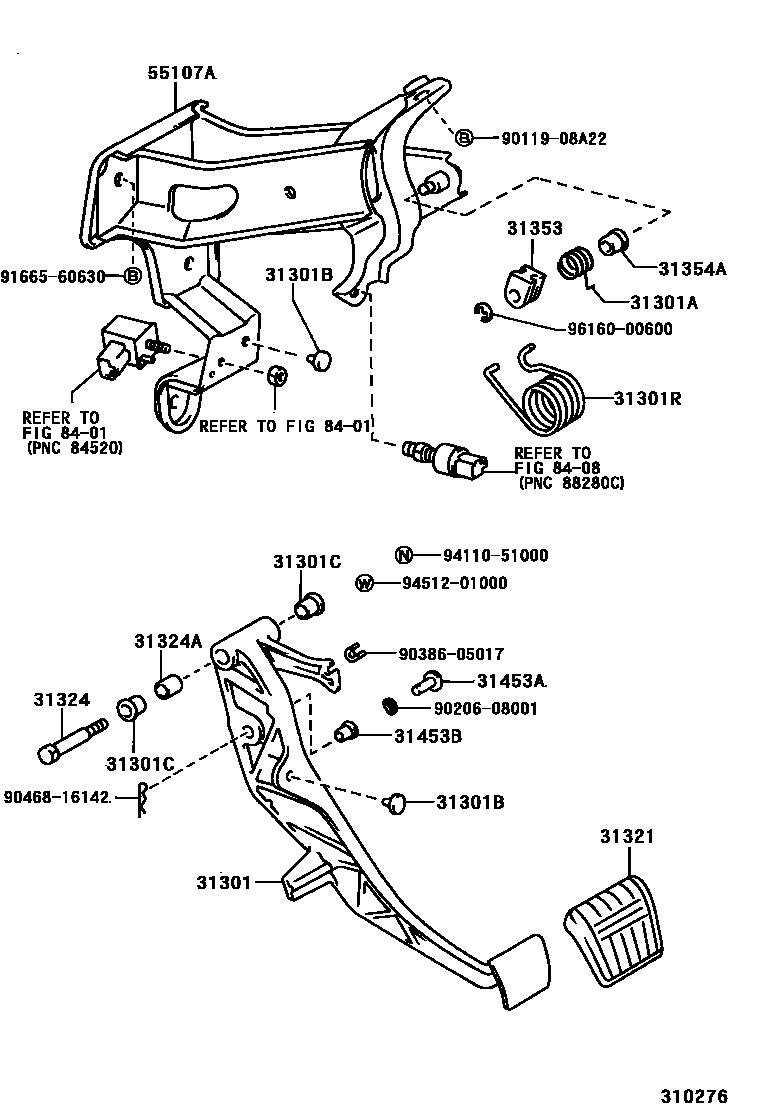

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31311-14120iJZA80..MTM199305-199808

31301ASPRING(FOR CLUTCH PEDAL)

main90949-03011iJZA80..MTM199305-199808

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iJZA80..MTM199305-199808

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iJZA80..MTM199305-199808

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03013iJZA80..MTM199305-199808

31321PAD, CLUTCH PEDAL

main31321-14020iJZA80..MTM199305-199808

31324SHAFT, CLUTCH PEDAL

main90101-10015iJZA80..MTM199305-199808

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iJZA80..MTM199305-199808

31353HOLDER, CLUTCH PEDAL SPRING

main31353-14010iJZA80..MTM199305-199808

31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90386-13015iJZA80..MTM199305-199808

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iJZA80..MTM199305-199808

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08010iJZA80..MTM199305-199808

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-14140iJZA80..MTM199305-199808

8401

8408

9011908A22

main90119-08A22

9020608001

main90206-08001

9038605017

main90386-05017

9046816142

main90468-16142

9166560630

main91665-60630

9411051000

main94110-51000

9451201000

main94512-01000

9616000600

main96160-00600

23 parts on this diagram · 3 diagrams in section
