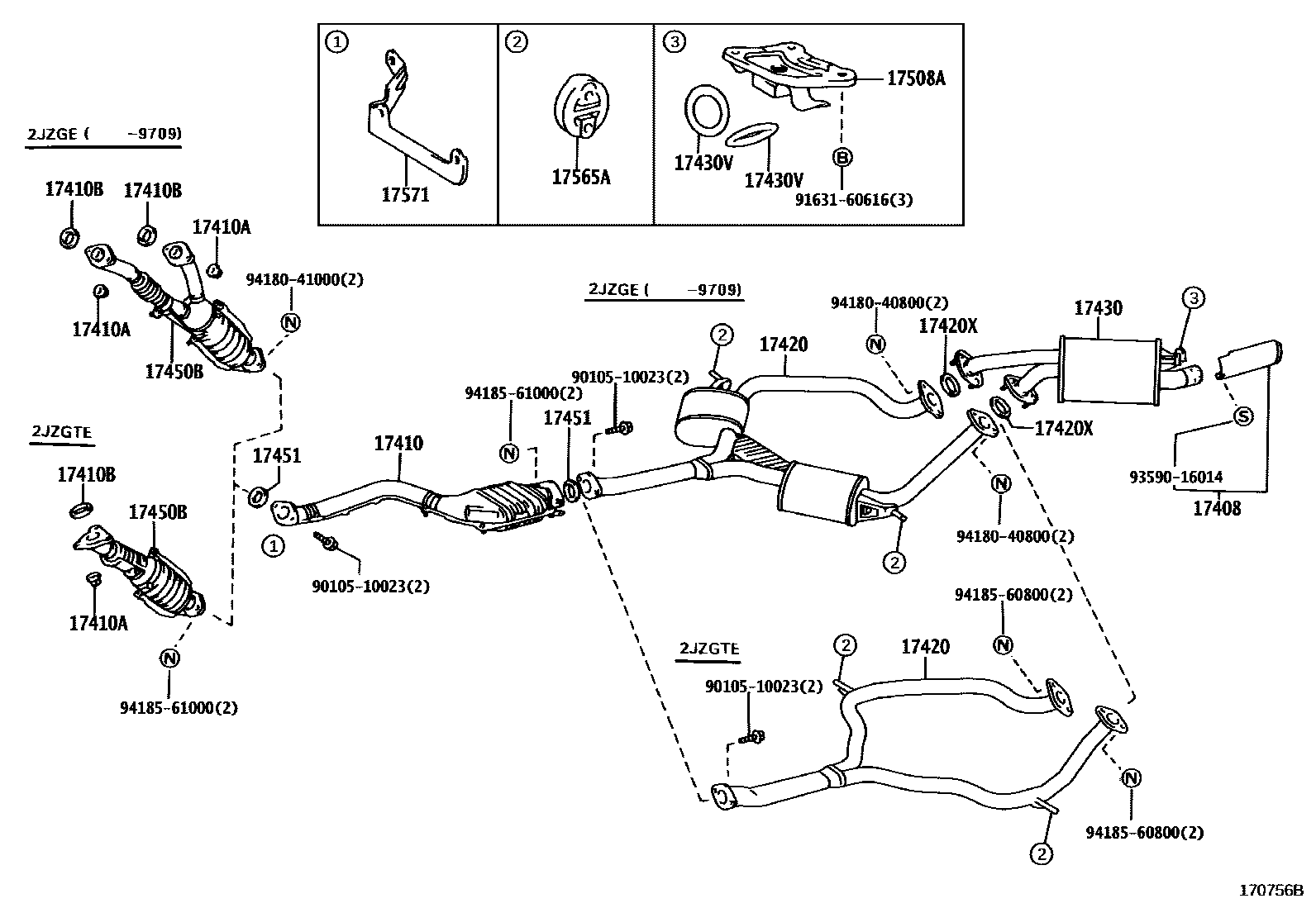

EXHAUST PIPE
17408BAFFLE SUB ASSY, EXHAUST TAILPIPE
17410PIPE ASSY, EXHAUST, FRONT
CALIFORNIA SPEC
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17450BPIPE ASSY, EXHAUST, FRONT NO.2
CALIFORNIA SPEC
17451GASKET, EXHAUST PIPE
17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
9010510023
main90105-10023
9163160616
main91631-60616
9359016014
main93590-16014
9418040800
main94180-40800
9418041000
main94180-41000
9418560800
main94185-60800
9418561000
main94185-61000
20 parts on this diagram · 2 diagrams in section
