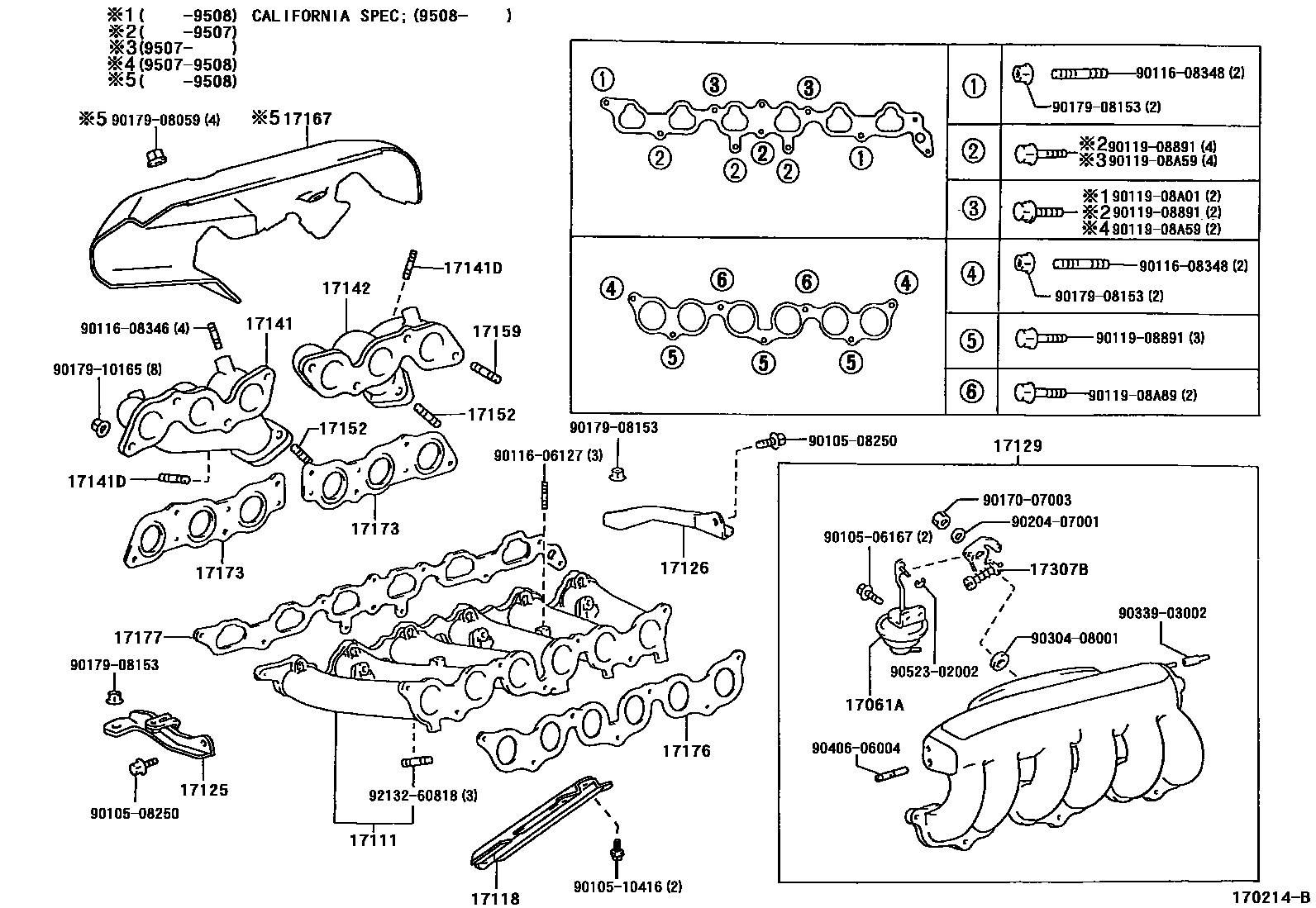

MANIFOLD
17061ADIAPHRAGM SUB-ASSY
17111MANIFOLD, INTAKE
CALIFORNIA SPEC
sub17111-46042
17125STAY, SURGE TANK, NO.1
17126STAY, SURGE TANK, NO.2
17141MANIFOLD, EXHAUST
17141DBOLT, STUD(FOR OXYGEN SENSOR)
17142CASE, EXHAUST MANIFOLD, NO.2
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17307BLEVER SUB-ASSY, INTAKE AIR CONTROL
9010506167
main90105-06167
9010508250
main90105-08250
9010510416
main90105-10416
9011606127
main90116-06127
9011608346
main90116-08346
9011608348
main90116-08348
9011908891
main90119-08891
9011908A01
main90119-08A01
9011908A59
main90119-08A59
9011908A89
main90119-08A89
9017007003
main90170-07003
9017908059
main90179-08059
9017908153
main90179-08153
9017910165
main90179-10165
9020407001
main90204-07001
9030408001
main90304-08001
9033903002
main90339-03002
9040606004
main90406-06004
9052302002
main90523-02002
9213260818
main92132-60818
36 parts on this diagram · 3 diagrams in section
