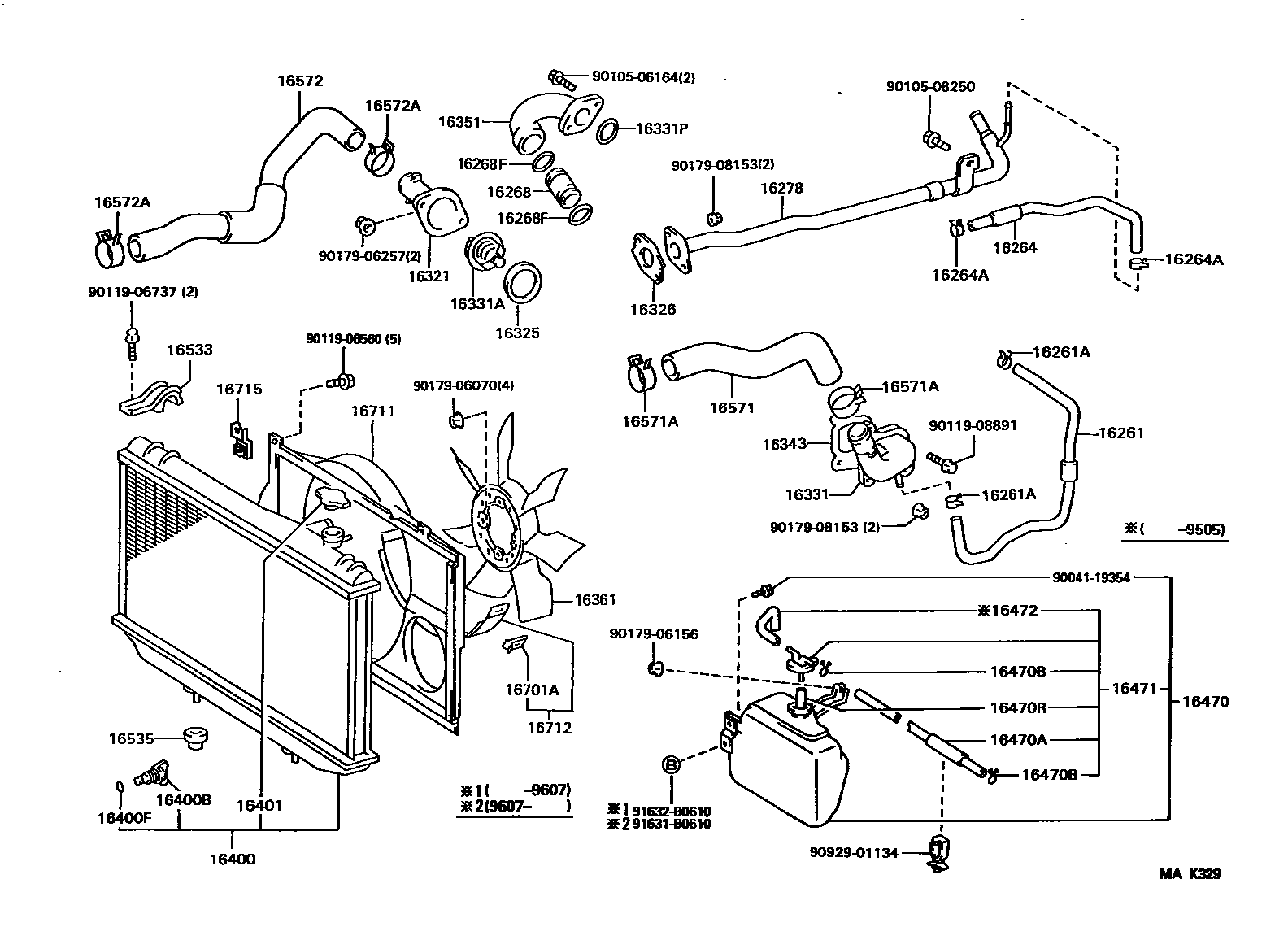

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
sub96135-51300
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51300
16268PIPE, WATER BY-PASS, NO.1
16268FRING, O(FOR WATER BY-PASS PIPE)
16278PIPE, WATER BY-PASS, NO.2
16321INLET, WATER
16325GASKET, WATER INLET HOUSING, NO.1
16326GASKET, WATER INLET HOUSING, NO.2
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
16331PRING,O(FOR WATER OUTLET)
16343GASKET, WATER OUTLET HOUSING
16351OUTLET, WATER BY-PASS
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
sub16401-31520
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=1000(*H,L=750)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
L=600(*H,L=135)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-37005
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16701ACLIP(FOR FAN SHROUD)
16711SHROUD, FAN
NO.1
NO.2
16712SHROUD, FAN, NO.2
16715BRACKET, FAN SHROUD
9004119354
main90041-19354
9010506164
main90105-06164
9010508250
main90105-08250
9011906560
main90119-06560
9011906737
main90119-06737
9011908891
main90119-08891
9017906070
main90179-06070
9017906156
main90179-06156
9017906257
main90179-06257
9017908153
main90179-08153
9092901134
main90929-01134
91631B0610
main91631-B0610
91632B0610
main91632-B0610
49 parts on this diagram · 3 diagrams in section
