WATER PUMP

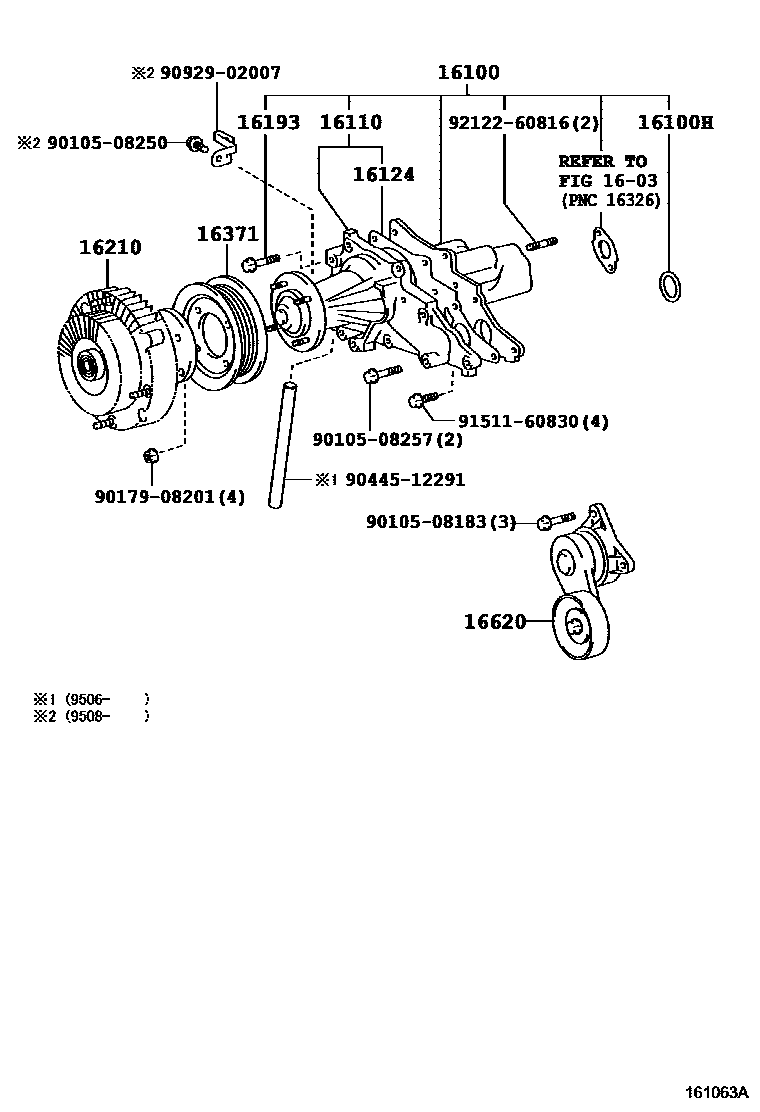

Parts diagram

1603

16100PUMP ASSY, ENGINE WATER

main16100-49835i199305-199506

main16100-49836i199506-199808

main16100-49845i199305-199506

main16100-49846i199506-199808

16100HRING, O(FOR WATER PUMP)

main96761-24040i199305-199808

16110PUMP ASSY, WATER, W/O COUPLING

main16110-49115i199305-199506

main16110-49116i199506-199808

main16110-49125i199305-199506

main16110-49126i199506-199808

16124GASKET, WATER PUMP COVER

main16124-46030i199305-199808

main16124-46040i199305-199608

main16124-46041i199608-199808

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-46040i199305-199808

16210COUPLING ASSY, FLUID

main16210-46030i199305-199808

16371PULLEY, FAN

main16371-46020i199305-199808

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W020i199305-199307

main16620-0W021i199307-199505

main16620-0W022i199505-199508

main16620-0W023i199508-199610

main16620-0W024i199610-199808

main16620-46060i199305-199709

main16620-46070i199305-199808

9010508183

main90105-08183

9010508250

main90105-08250

9010508257

main90105-08257

9017908201

main90179-08201

9044512291

main90445-12291

9092902007

main90929-02007

9151160830

main91511-60830

9212260816

main92122-60816

17 parts on this diagram · 2 diagrams in section
