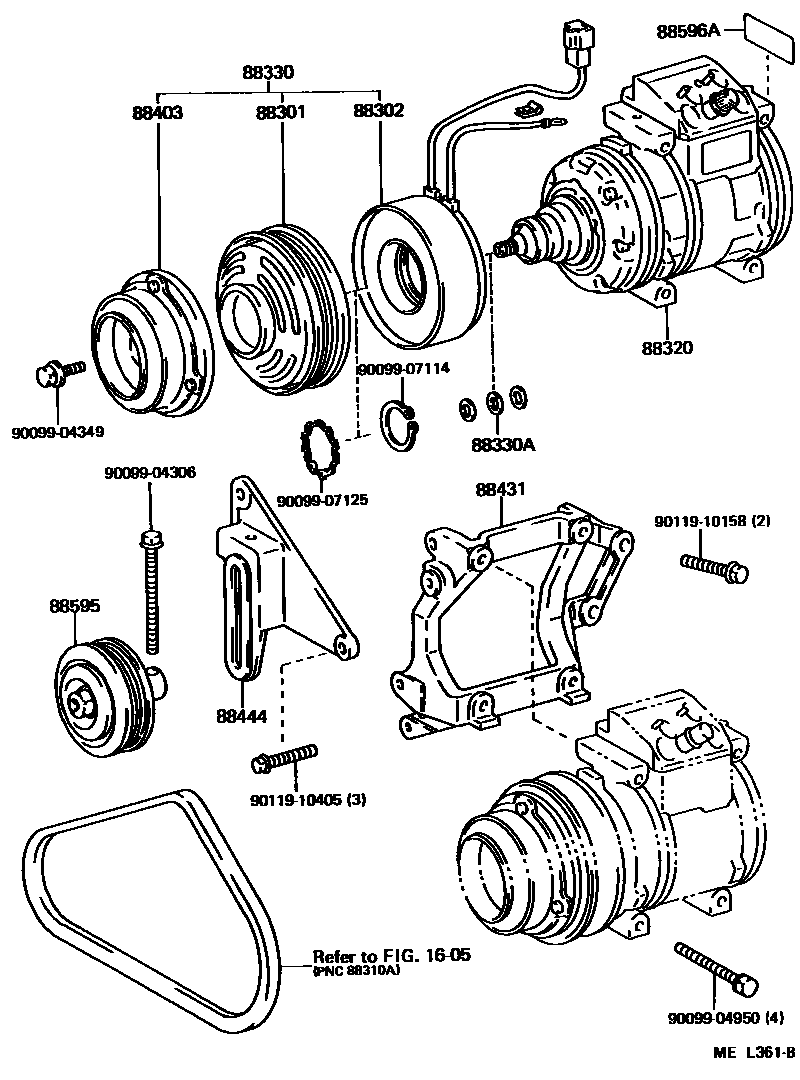

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12160iMA70198808-199305

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14120iMA70198808-199305

88320COMPRESSOR ASSY, COOLER

main88320-14560iMA70198808-199008

sub88320-14561

main88320-14561iMA70199008-199305

sub88320-22H91

88330CLUTCH ASSY, MAGNET

main88410-14210iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iMA70198808-199305

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iMA70198808-199305

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-24070iMA70198808-199305

88444BRACKET, IDLE PULLEY

main88444-24010iMA70198808-199305

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-17010iMA70198808-199305

88596APLATE, CAUTION

main88356-12010iMA70198808-199305

9009904306

main90099-04306

9009904349

main90099-04349

9009904950

main90099-04950

9009907114

main90099-07114

9009907125

main90099-07125

9011910158

main90119-10158

9011910405

main90119-10405

18 parts on this diagram · 2 diagrams in section
