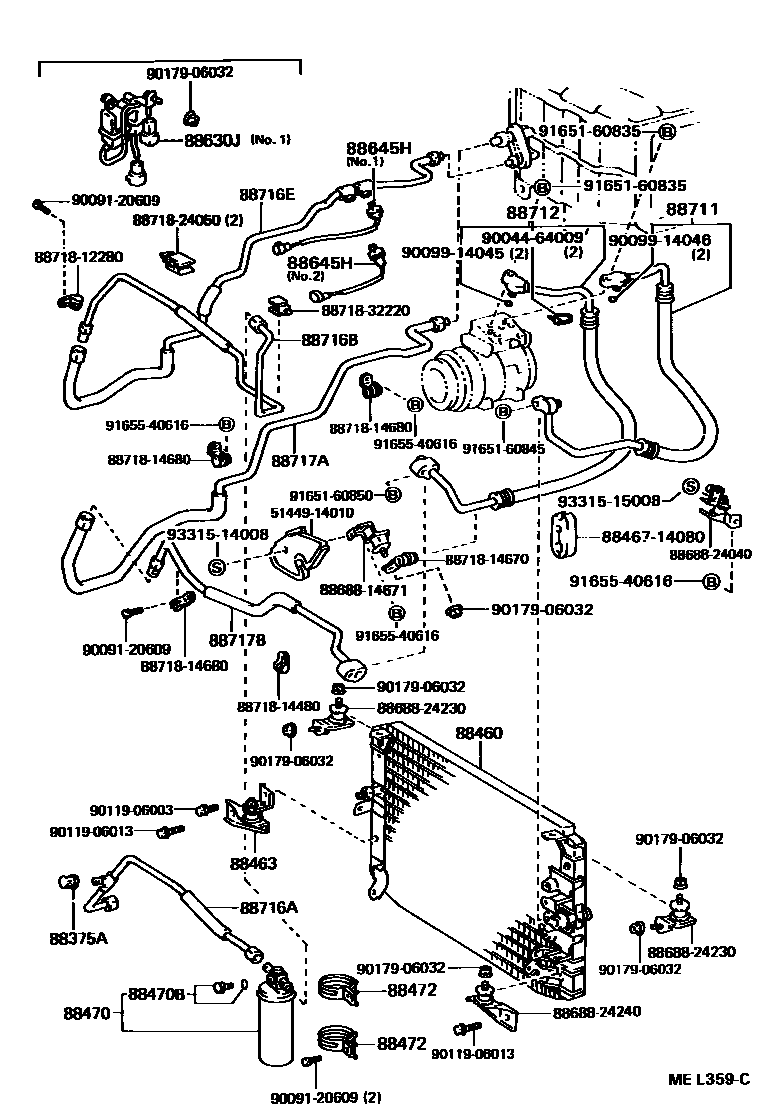

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-20010iMA70198808-199305

88460CONDENSER ASSY, COOLER

main88460-14252iMA70198808-199007

main88460-14290iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA199007-199305

88463BRACKET, COOLER CONDENSER, NO.1

main88463-24050iMA70198808-199305

88470RECEIVER & DRYER ASSY, COOLER

main88471-95401iMA70198808-199305

88470BBOLT, FUSE

main88475-12020iMA70198808-199305

88472BRACKET, RECEIVER TANK, NO.1

main88472-22090iMA70198808-199305

88630JRELAY ASSY (FOR CONDENSER MOTOR)

main88630-24060iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

NO.1

88645HSWITCH, PRESSURE NO.1

main88645-10020iMA70198808-199305

NO.2

main88645-14010iMA70198808-199305

NO.1

sub88645-24050

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-24070iMA70198808-199305

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-1B090iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-1B121iMA70198808-199305

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-1B073iMA70198808-199305

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-1B112iMA70198808-199305

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-14312iMA70198808-199305

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88717-14282iMA70198808-199305

5144914010COVER, FRONT FRAME UNDER, LH

main51449-14010

8846714080CUSHION, COOLER CONDENSER, NO.1

main88467-14080

8868814671BRACKET, COOLER DIAPHRAGM

main88688-14671

8868824040BRACKET, COOLER DIAPHRAGM

main88688-24040

8868824230BRACKET, COOLER DIAPHRAGM

main88688-24230

8868824240BRACKET, COOLER DIAPHRAGM

main88688-24240

8871812280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12280

8871814480PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14480

8871814670PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14670

8871814680PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14680

8871824050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-24050

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9004464009

main90044-64009

9009120609

main90091-20609

9009914045

main90099-14045

9009914046

main90099-14046

9011906003

main90119-06003

9011906013

main90119-06013

9017906032

main90179-06032

9165160835

main91651-60835

9165160845

main91651-60845

9165160850

main91651-60850

9165540616

main91655-40616

9331514008

main93315-14008

9331515008

main93315-15008

40 parts on this diagram · 2 diagrams in section
