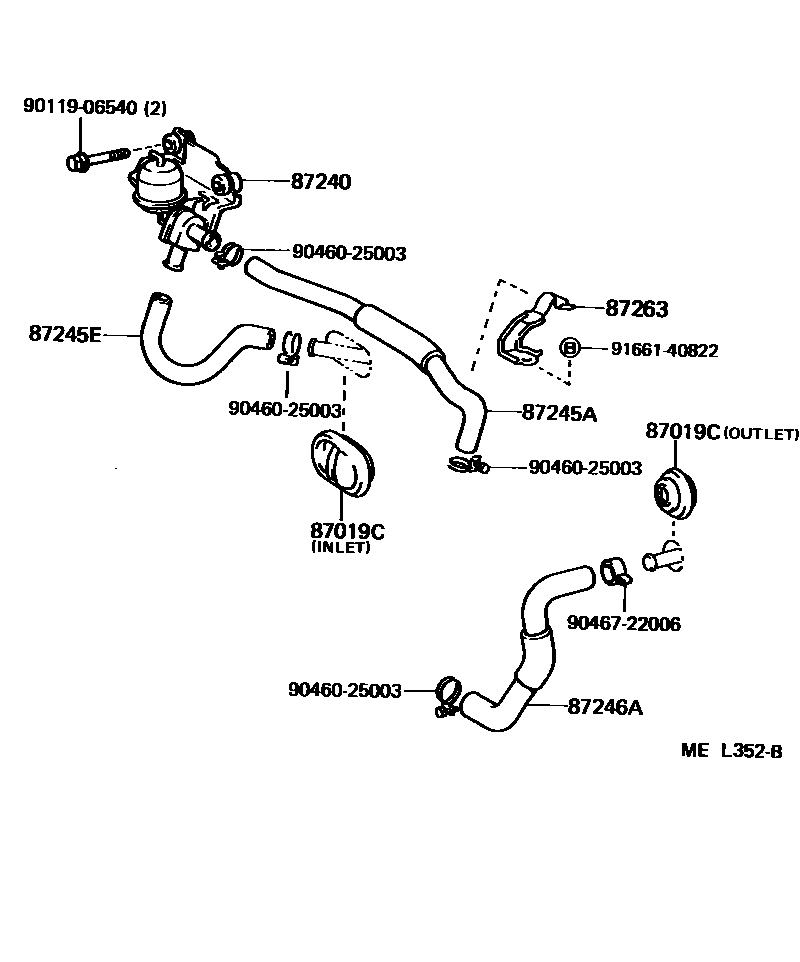

HEATING & AIR CONDITIONING - WATER PIPING

87019CGROMMET, HEATER HOSE

main90480-01272iMA70198808-198908

INLET

main90480-31007iMA70198808-198908

OUTLET

87240VALVE ASSY, HEATER WATER

main87240-14140iMA70198808-198908

87245AHOSE, HEATER WATER, INLET A

main87245-1B251iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

87245EHOSE, HEATER WATER, INLET E

main87245-1B220iMA70198808-198908

87246AHOSE, HEATER WATER, OUTLET A

main87245-1B262iMA70198808-198908

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-14170iMA70198808-198908

9011906540

main90119-06540

9046025003

main90460-25003

9046722006

main90467-22006

9166140822

main91661-40822

10 parts on this diagram · 1 diagram in section
