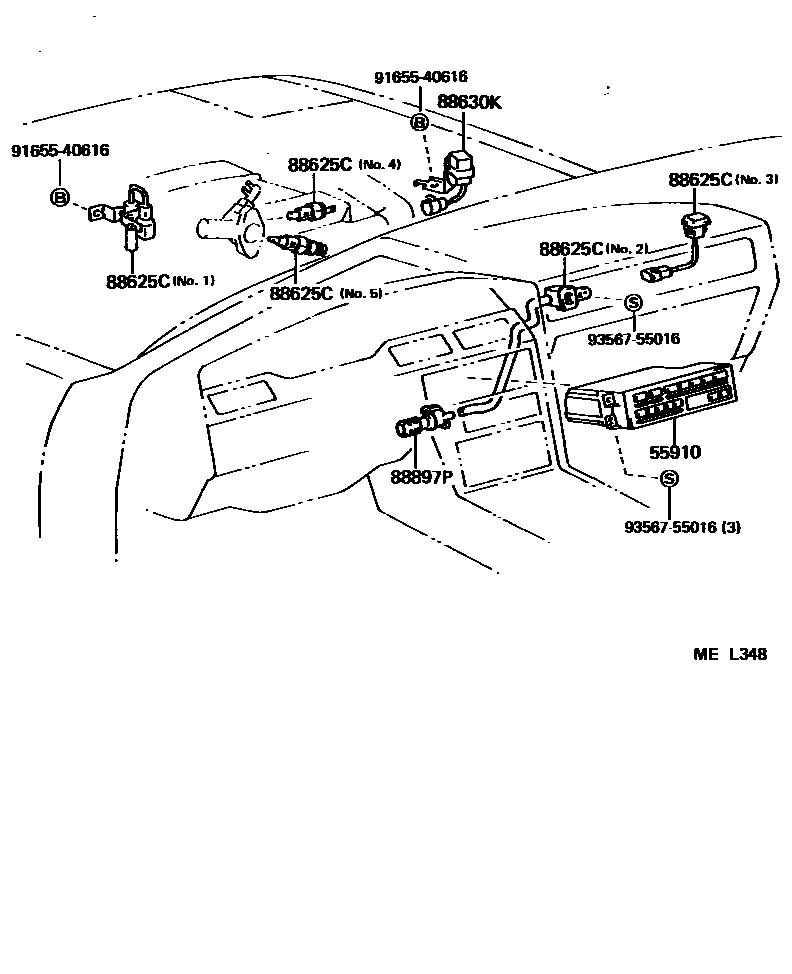

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55900-14500iMA70..USA198808-199305

main55900-14510iMA70..CND198808-199305

88625CTHERMISTOR, COOLER

main88625-20140iMA70198808-199305

NO.3

main88790-14100iMA70198808-199305

NO.2

main88790-14110iMA70198808-199305

NO.1

main88790-24090iMA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

NO.5

main88790-24110iMA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

NO.4

88630KRELAY ASSY

main88630-14090iMA70..4FC..TWT198808-199305

88897PASPIRATOR

main88897-14010iMA70198808-199305

9165540616

main91655-40616

9356755016

main93567-55016

6 parts on this diagram · 2 diagrams in section
