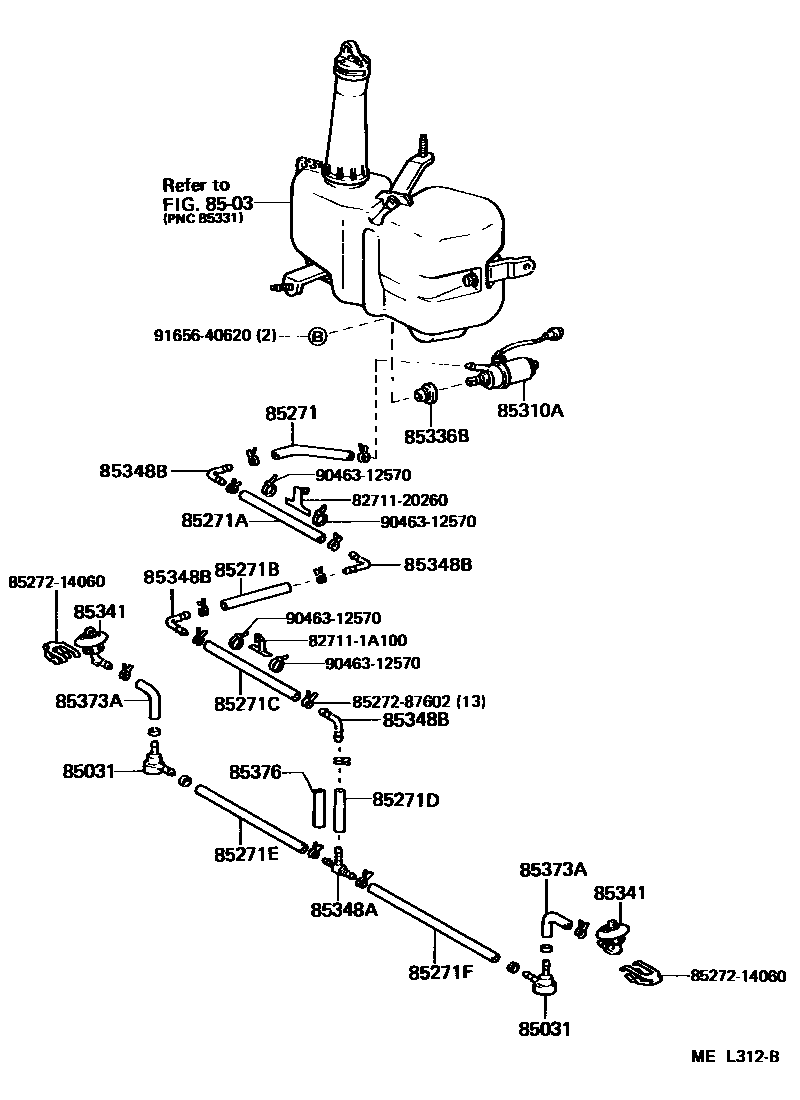

HEADLAMP CLEANER
8503
85031VALVE, HEADLAMP CLEANER WASHER HOSE
85271HOSE, HEADLAMP CLEANER, NO.1
85271AHOSE, HEADLAMP CLEANER, NO.2
85271BHOSE, HEADLAMP CLEANER, NO.3
L=190
85271CHOSE, HEADLAMP CLEANER, NO.4
L=640
85271DHOSE, HEADLAMP CLEANER, NO.5
L=90
85271EHOSE, HEADLAMP CLEANER, NO.6
L=640
85271FHOSE, HEADLAMP CLEANER, NO.7
L=640
85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85336BPACKING, HEADLAMP CLEANER WASHER
85341NOZZLE, HEADLAMP CLEANER WASHER
RH
LH
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
L=35
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
827111A100WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A100
8271120260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-20260
8527214060CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-14060
8527287602CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-87602
9046312570
main90463-12570
9165640620
main91656-40620
22 parts on this diagram · 1 diagram in section
