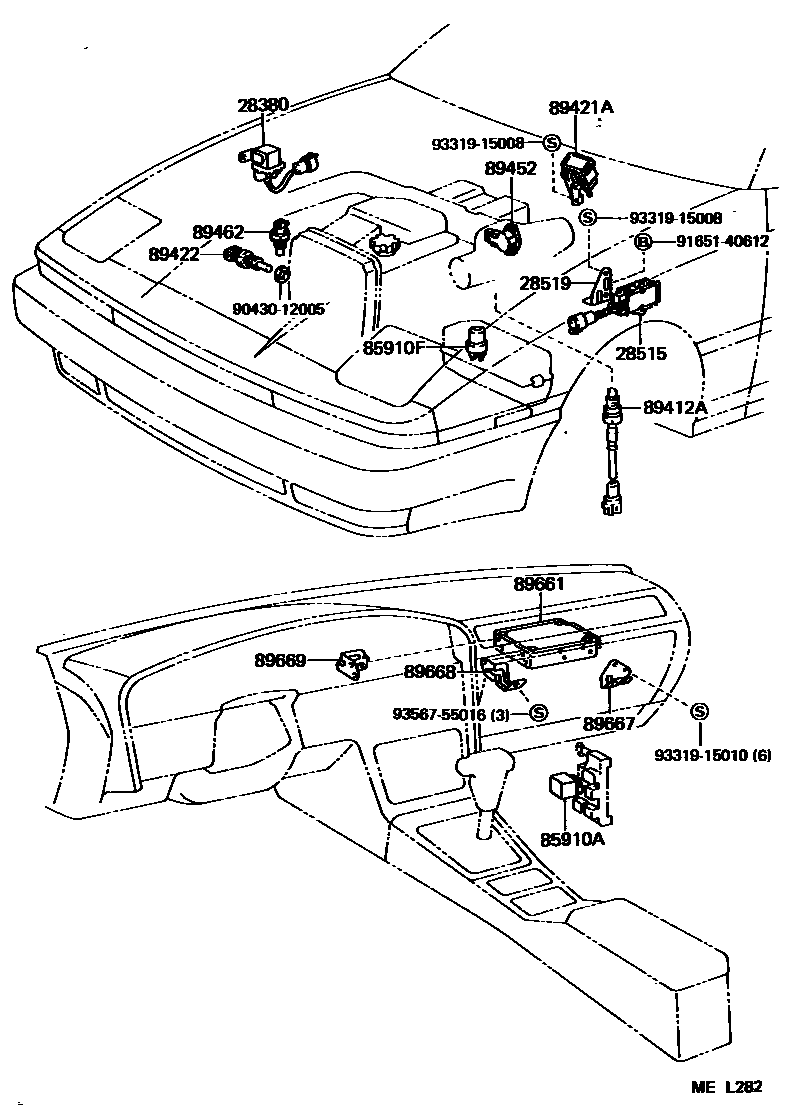

ELECTRONIC FUEL INJECTION SYSTEM

28380RELAY ASSY, FUEL PUMP

main28380-43010i7MG#..MA70198808-199305

28515RESISTOR, SOLENOID

main28515-43040i7MGTE..MA70198808-199305

28519BRACKET, SOLENOID RESISTOR

main28519-70020i7MGTE..MA70198808-199305

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iMA70198808-199305

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iMA70198808-199305

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-12010iMA70..USA198808-199305

89421ASENSOR, TURBO PRESSURE

main89420-14020iMA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iMA70198808-199305

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-14050iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

main89452-28030iMA70..TWT198808-198903

sub89452-20050

89462SWITCH, START INJECTOR TIME

main89462-20020iMA70198808-199305

89661COMPUTER, ENGINE CONTROL

main89661-14240iMA70..5F..TWT..USA198808-198908

*CAL

main89661-14241iMA70..5F..TWT..USA198908-198910

*CAL

sub89661-14242

main89661-14242iMA70..5F..TWT..USA198910-199305

*CAL

main89661-14250iMA70..4FC..TWT..USA198808-198908

*CAL

main89661-14251iMA70..4FC..TWT..USA198908-198910

*CAL

sub89661-14252

main89661-14252iMA70..4FC..TWT..USA198910-199305

*CAL

main89661-14260iMA70..5F..TWT198808-198908

main89661-14261iMA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-198910

sub89661-14450

main89661-14270iMA70..4FC..TWT198808-198908

main89661-14271iMA70..4FC..TWT198908-198910

sub89661-14460

main89661-14300iMA70..5F..TWC..USA198808-198908

*CAL

sub89661-14302

main89661-14301iMA70..5F..TWC..USA198908-198910

*CAL

sub89661-14302

main89661-14302iMA70..5F..TWC..USA198910-199305

*CAL

main89661-14310iMA70..4FC..TWC..USA198808-198908

*CAL

sub89661-14312

main89661-14311iMA70..4FC..TWC..USA198908-198910

*CAL

sub89661-14312

main89661-14312iMA70..4FC..TWC..USA198910-199305

*CAL

main89661-14320iMA70..5F..TWC198808-198908

main89661-14321iMA70..5F..TWC198908-198910

sub89661-14430

main89661-14330iMA70..4FC..TWC198808-198908

main89661-14331iMA70..4FC..TWC198908-198910

sub89661-14440

main89661-14430iMA70..5F..TWC198910-199305

main89661-14440iMA70..4FC..TWC198910-199305

main89661-14450iMA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198910-199305

main89661-14460iMA70..4FC..TWT198910-199305

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-14070iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-14020iMA70198808-199305

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-14020iMA70198808-199305

9043012005

main90430-12005

9165140612

main91651-40612

9331915008

main93319-15008

9331915010

main93319-15010

9356755016

main93567-55016

19 parts on this diagram · 1 diagram in section
