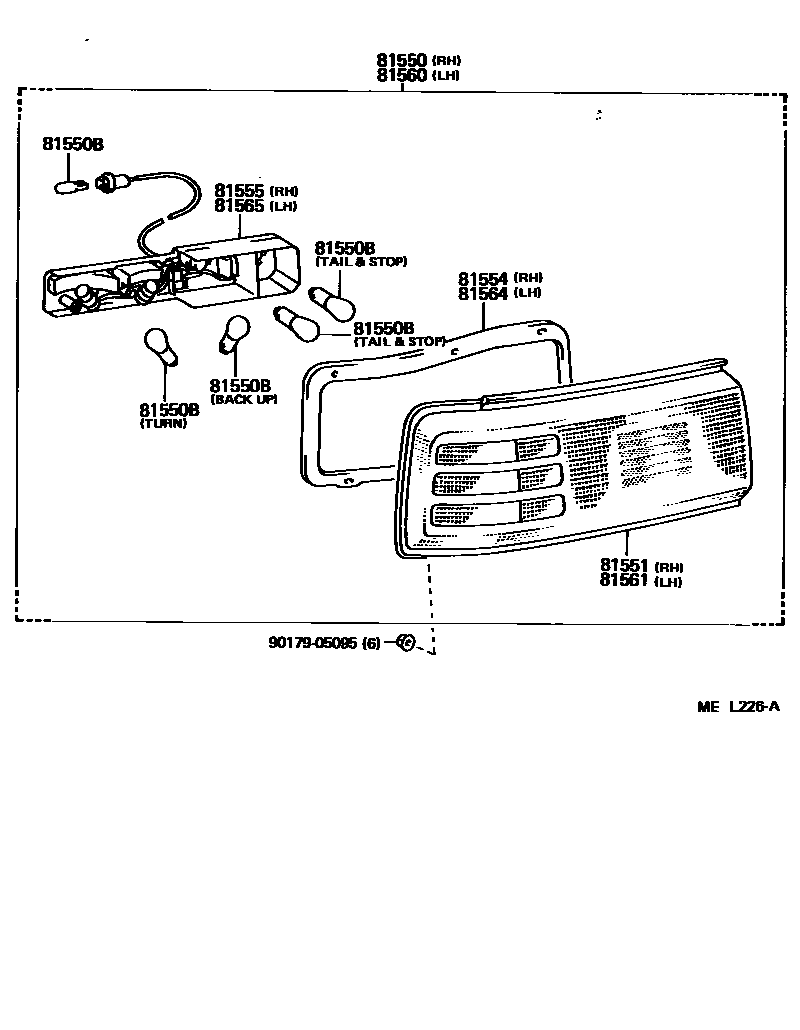

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-14651iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199008

sub81550-14652

main81550-14652iMA70199008-199305

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11020iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

12V 3.8W,SIDE MARKER

main99132-11270iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

12V 27W,TURN OR BACK

main99132-21270iMA70198808-199305

12V 27/8W,STOP/TAIL

81551LENS, REAR COMBINATION LAMP, RH

main81551-14651iMA70198808-199008

sub81551-14652

main81551-14652iMA70199008-199305

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-14580iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-14651iMA70198808-199305

81560LAMP ASSY, REAR COMBINATION, LH

main81560-14651iMA70198808-199008

sub81560-14652

main81560-14652iMA70199008-199305

81561LENS, REAR COMBINATION LAMP, LH

main81561-14651iMA70198808-199008

sub81561-14652

main81561-14652iMA70199008-199305

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-14610iMA70198808-199305

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-14651iMA70198808-199305

9017905095

main90179-05095

10 parts on this diagram · 1 diagram in section
