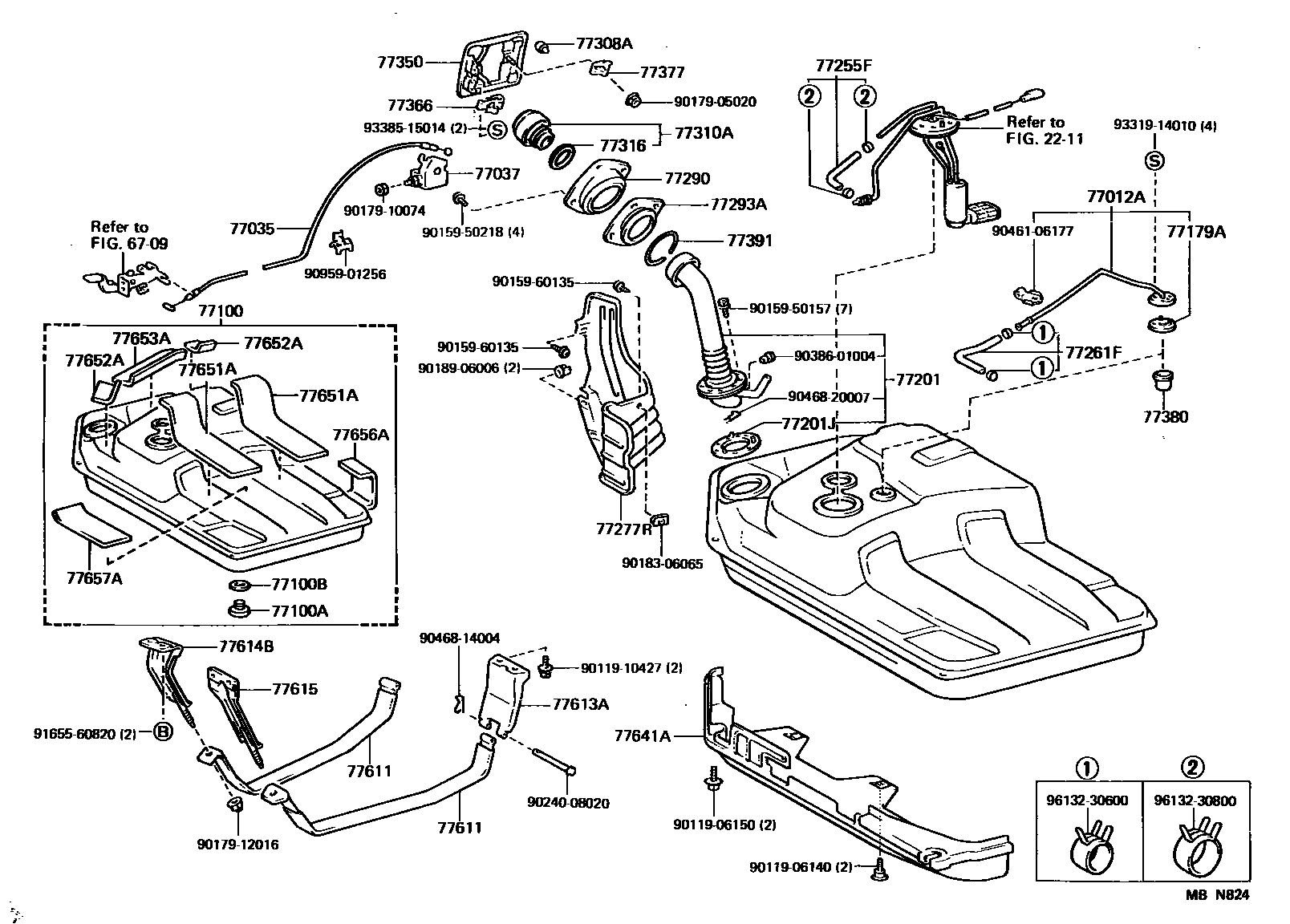

FUEL TANK & TUBE

0001 1 0002 1

2211

6709

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-14060iMA70198808-199305

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-14200iMA70198808-199305

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-90K00iMA70198808-199305

77100TANK ASSY, FUEL

main77001-19426iMA70198808-199305

77100APLUG(FOR FUEL TANK)

main90341-20004iMA70198808-199305

77100BGASKET(FOR FUEL TANK)

main90430-20007iMA70198808-199305

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-16010iMA70198808-199305

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-14300iMA70198808-198911

sub77201-14310

main77201-14310iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198911-199305

77201JGASKET(FOR FUEL TANK INLET PIPE)

main77169-14010iMA70198808-199305

77255FHOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

main77049-14040iMA70198808-199305

77261FHOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)

main77209-14080iMA70198808-199305

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-14120iMA70198808-199305

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-14080iMA70198808-199305

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-20010iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08019iMA70198808-199305

sub90541-08009

77310ACAP ASSY, FUEL TANK

main77310-12140iMA70198808-199305

77316GASKET, FUEL TANK CAP

main77316-16010iMA70198808-199305

77350LID ASSY, FUEL FILLER OPENING

main77350-14050iMA70198808-199305

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iMA70198808-199305

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iMA70198808-199305

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iMA70198808-199305

77391RING, FUEL INLET BOX

main77391-16011iMA70198808-199305

77611BAND, FUEL TANK

main77601-14070iMA70198808-199305

RH

main77602-14050iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

LH

77613ABRACKET, FUEL TANK BAND, NO.1

main77613-14050iMA70198808-199305

77614BBRACKET, FUEL TANK BAND, NO.2

main77614-14030iMA70198808-199305

77615BRACKET, FUEL TANK BAND, NO.3

main77615-14010iMA70198808-199305

77641APROTECTOR, FUEL TANK, NO.1

main77641-14090iMA70198808-199305

77651ACUSHION, FUEL TANK, NO.1

main77651-14090iMA70198808-199305

77652ACUSHION, FUEL TANK, NO.2

main77652-14110iMA70198808-199305

77653ACUSHION, FUEL TANK, NO.3

main77653-14070iMA70198808-199305

77656ACUSHION, FUEL TANK, NO.4

main77654-14040iMA70198808-199305

77657ACUSHION, FUEL TANK, NO.5

main77655-14020iMA70198808-199305

9011906140

main90119-06140

9011906150

main90119-06150

9011910427

main90119-10427

9015950157

main90159-50157

9015950218

main90159-50218

9015960135

main90159-60135

9017905020

main90179-05020

9017910074

main90179-10074

9017912016

main90179-12016

9018306065

main90183-06065

9018906006

main90189-06006

9024008020

main90240-08020

9038601004

main90386-01004

9046106177

main90461-06177

9046814004

main90468-14004

9046820007

main90468-20007

9095901256

main90959-01256

9165560820

main91655-60820

9331914010

main93319-14010

9338515014

main93385-15014

9613230600

main96132-30600

9613230800

main96132-30800

56 parts on this diagram · 2 diagrams in section
