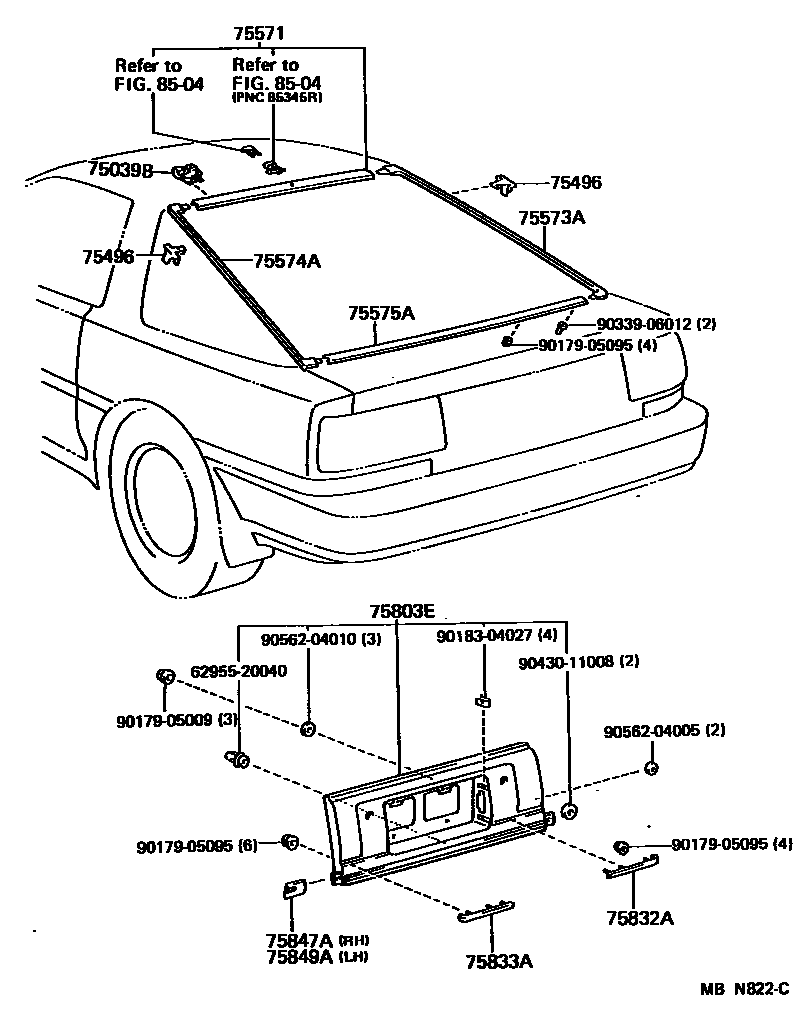

REAR MOULDING
75039BCLIP SUB-ASSY, BACK DOOR GLASS, NO.1
75496CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75571MOULDING, BACK WINDOW, OUTSIDE UPPER
75573AMOULDING, BACK WINDOW, OUTSIDE RH
75574AMOULDING, BACK WINDOW, OUTSIDE LH
75575AMOULDING, BACK WINDOW, OUTSIDE LOWER
75803EMOULDING SUB-ASSY, LOWER BACK PANEL
SUPER RED 2,3E5
CAMEL BEIGE M,4K9
DARK GRAY,182 ,202
DARK BROWN M-BROWN M,4J7
RED MICA,3H8
GRAY M-SILVER M,043 ,167 ,176 ,206 ,3E5 ,3H4
GRAY M-SILVER M,042 ,043 ,167 ,176 ,206 ,3E5 ,3H4
BLUE M-LIGHT BLUE M,8E3 ,8G2
WARM GRAY M,050 ,176
WARM GRAY M,042 ,050 ,176
MEDIUM BLUE M,8G2 ,8G5
BLUE GRAY M,182
BLUE M.,8J3
DARK SILVER M,206 ,3E5 ,3H4
RED MICA,3K3
MEDIUM TORQUOISE M.,749
W(LOWER BACK GARNISH),SUPER SILVER 3 M.,051 ,176
W(LOWER BACK GARNISH),SUPER SILVER 3 M.,176
WHITE PACKAGE OR BEIGE PACKAGE,CAMEL BEIGE M,4K9
WHITE PACKAGE,SUPER WHITE 3,043
W(LOWER BACK GARNISH),SUPER WHITE 4,050
WHITE PACKAGE OR BEIGE PACKAGE,SUPER WHITE 4,050
WHITE PACKAGE,SUPER WHITE 4,050
75832APANEL, LOWER BACK FINISH, RH
75833APANEL, LOWER BACK FINISH, LH
75847APAD, LOWER BACK PANEL MOULDING, RH
WHITE PACKAGE
75849APAD, LOWER BACK PANEL MOULDING, LH
WHITE PACKAGE
8504
6295520040SEAL, ROOF SIDE VENT
main62955-20040
9017905009
main90179-05009
9017905095
main90179-05095
9018304027
main90183-04027
9033906012
main90339-06012
9043011008
main90430-11008
9056204005
main90562-04005
9056204010
main90562-04010
20 parts on this diagram · 1 diagram in section
