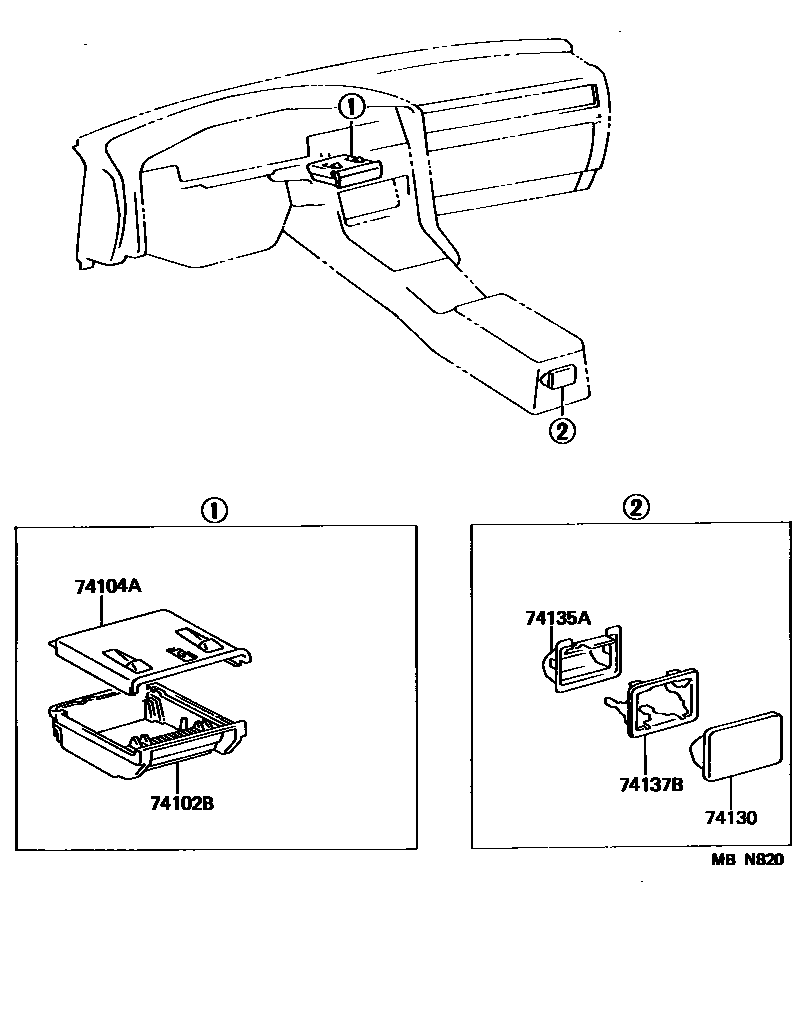

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-14120iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-14130iMA70198808-199305

74130RECEPTACLE ASSY, REAR ASH

main74109-32010-14iMA70198808-199305

BLUE,TRIM8#

sub74109-20080

sub74109-32010

main74109-32010-32iMA70199008-199305

DEEP RED,TRIM3#

sub74109-20080

sub74109-32010

main74109-32010-B0iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199008

MEDIUM GRAY,TRIM1#

sub74109-20080

sub74109-32010

main74109-32010-B2iMA70199008-199305

SHADOW GRAY,TRIM1#

sub74109-20080

sub74109-32010

main74109-32010-D0iMA70198808-199008

MAROON,TRIM3#

sub74109-20080

sub74109-32010

main74109-32010-E0iMA70198808-199108

BROWN,TRIM4#

sub74109-20080

sub74109-32010

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-14010iMA70198808-199305

74137BRETAINER, REAR ASH RECEPTACLE, INNER

main74137-14010iMA70198808-199305

5 parts on this diagram · 1 diagram in section
