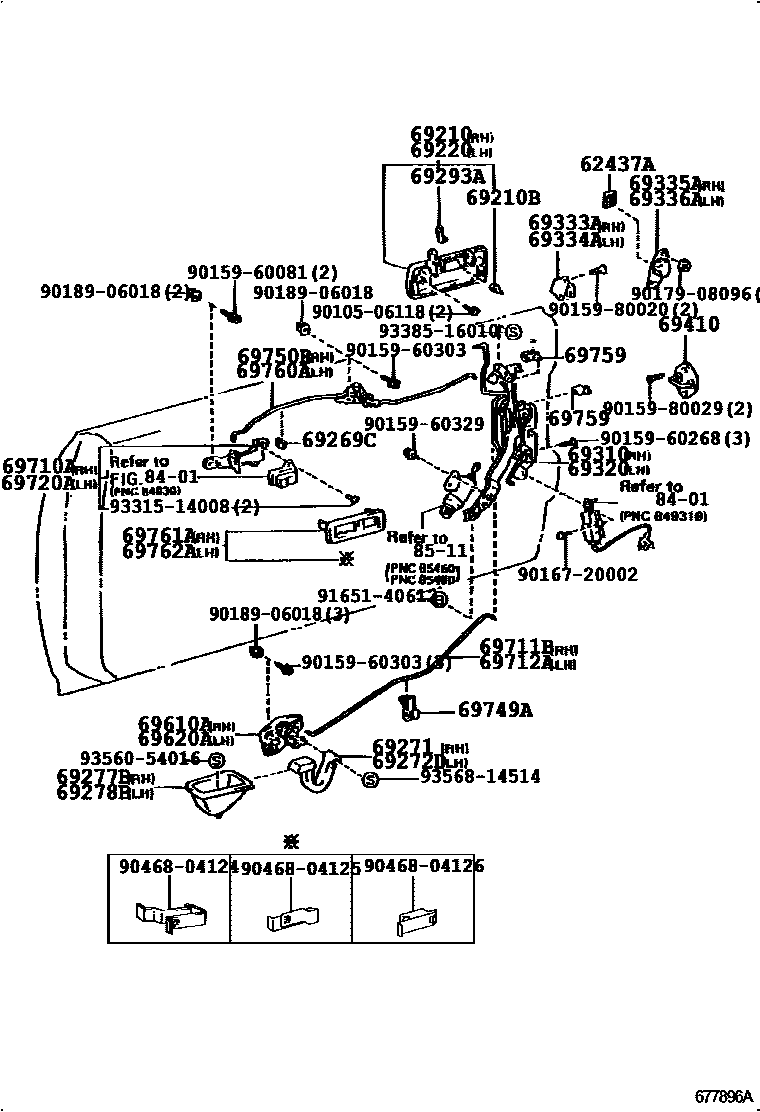

FRONT DOOR LOCK & HANDLE

62437APROTECTOR, BASE EDGE, NO.1

main62437-14020×2iMA70..SPR198808-199305

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-14090-10iMA70199008-199305

BLUE M.,8J3

main69210-14090-11iMA70199008-199305

BLACK,202

main69210-14090-13iMA70198808-198908

GRAY M.,167

main69210-14090-15iMA70199008-199108

BEIGE M.,4K9

main69210-14090-16iMA70198808-198908

DK. BROWN MICA,4J7

main69210-14090-18iMA70..TWT198808-198908

WHITE PEARL MICA,042

main69210-14090-21iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

BLACK MICA,206

main69210-14090-22iMA70199008-199305

SUPER RED 2,3E5

main69210-14090-23iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

GRAY M.,176

main69210-14090-28iMA70198808-198908

SUPER WHITE 3,043

main69210-14090-32iMA70198808-198908

RED MICA,3H4

main69210-14090-33iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

BLUEISH GRAY M.,182

main69210-14090-34iMA70198808-198908

BLUE METALLIC/MICA,8E3

main69210-14090-38iMA70199008-199305

SUPER WHITE 4,050

main69210-14090-42iMA70199008-199108

RED MICA,3H8

main69210-14090-44iMA70198808-198908

LT. BLUE MICA M.,8G2

main69210-14090-48iMA70..TWT199008-199108

SUPER WHITE PEARL M,051

main69210-14090-54iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

DARK BLUE M.M.,8G5

main69210-14090-D0iMA70199108-199305

RED MICA,3K3

main69210-14090-H0iMA70199108-199305

MEDIUM TORQUOISE M.,749

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021×4iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-14100-10iMA70199008-199305

BLUE M.,8J3

main69220-14100-11iMA70199008-199305

BLACK,202

main69220-14100-13iMA70198808-198908

GRAY M.,167

main69220-14100-15iMA70199008-199108

BEIGE M.,4K9

main69220-14100-16iMA70198808-198908

DK. BROWN MICA,4J7

main69220-14100-18iMA70..TWT198808-198908

WHITE PEARL MICA,042

main69220-14100-21iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

BLACK MICA,206

main69220-14100-22iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

SUPER RED 2,3E5

main69220-14100-23iMA70199008-199108

SUPER SILVER 3 M.,176

main69220-14100-28iMA70198808-198908

SUPER WHITE 3,043

main69220-14100-32iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

RED MICA,3H4

main69220-14100-33iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

BLUEISH GRAY M.,182

main69220-14100-34iMA70198808-198908

BLUE METALLIC/MICA,8E3

main69220-14100-38iMA70199008-199305

SUPER WHITE 4,050

main69220-14100-42iMA70199008-199108

RED MICA,3H8

main69220-14100-44iMA70198808-198908

LT. BLUE MICA M.,8G2

main69220-14100-48iMA70..TWT199008-199108

SUPER WHITE PEARL M,051

main69220-14100-54iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

DARK BLUE M. M.,8G5

main69220-14100-D0iMA70199108-199305

RED MICA,3K3

main69220-14100-H0iMA70199108-199305

MEDIUM TORQUOISE M.,749

69269CSEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)

main69289-12010×2iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

69271HANDLE, FRONT DOOR INSIDE, RH

main69271-20090-03iMA70199008-199305

SHADOW GRAY,TRIM1#

main69271-20090-04iMA70198808-198908

DEEP BLUE,TRIM8#

main69271-20090-12iMA70198808-198908

MAROON,TRIM3#

main69271-20090-13iMA70198808-198908

MEDIUM GRAY,TRIM1#

main69271-20090-22iMA70199008-199305

DEEP RED,TRIM3#

main69271-20090-26iMA70198808-198901

BROWN,TRIM4#

69272DHANDLE, FRONT DOOR INSIDE, LH

main69272-20060-03iMA70199008-199305

SHADOW GRAY,TRIM1#

main69272-20060-04iMA70198808-198908

DEEP BLUE,TRIM8#

main69272-20060-12iMA70198808-198908

MAROON,TRIM3#

main69272-20060-13iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

main69272-20060-22iMA70199008-199305

DEEP RED,TRIM3#

main69272-20060-26iMA70..USA199008-199108

BROWN,TRIM4#

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-14040-02iMA70198808-198908

MAROON,TRIM3#

main69277-14040-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

main69277-14040-04iMA70199008-199305

DEEP BLUE,TRIM8#

main69277-14040-06iMA70198808-198901

BROWN,TRIM4#

main69277-14040-12iMA70199008-199305

DEEP RED,TRIM3#

main69277-14040-13iMA70199008-199305

SHADOW GRAY,TRIM1#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-14010-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main69278-14010-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

main69278-14010-04iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

DEEP BLUE,TRIM8#

main69278-14010-06iMA70..USA199008-199108

BROWN,TRIM4#

main69278-14010-12iMA70199008-199305

DEEP RED,TRIM3#

main69278-14010-13iMA70199008-199305

SHADOW GRAY,TRIM1#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iMA70198808-198908

LH

main69293-12060iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

RH

69310LOCK ASSY, FRONT DOOR, RH

main69310-14301iMA70..USA198808-199305

main69310-14331iMA70..CND198808-198908

69320LOCK ASSY, FRONT DOOR, LH

main69320-14271iMA70..USA198808-199305

main69320-14291iMA70..TWC..CND;MA70..SPR..TWT..CND198908-199008

69333ASTABILIZER, DOOR MALE, RH

main69333-14010iMA70..SPR198808-199305

69334ASTABILIZER, DOOR MALE, LH

main69334-14010iMA70..SPR198808-199305

69335ASTABILIZER, DOOR FEMALE, RH

main69335-14010iMA70..SPR198808-199305

69336ASTABILIZER, DOOR FEMALE, LH

main69336-14010iMA70..SPR198808-199305

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001×2iMA70198808-198908

69610ACONTROL ASSY, FRONT DOOR LOCK REMOTE, RH

main69610-14030iMA70198808-198908

69620ACONTROL ASSY, FRONT DOOR LOCK REMOTE, LH

main69620-14030iMA70198808-198908

69710ALEVER ASSY, FRONT DOOR LOCK CONTROL, RH

main69710-14070-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main69710-14070-03iMA70198808-198908

MEDIUM GRAY METALLIC,TRIM1#

main69710-14070-04iMA70199008-199305

DEEP BLUE,TRIM8#

main69710-14070-06iMA70198808-198901

BROWN,TRIM4#

main69710-14070-12iMA70199008-199305

DEEP RED,TRIM3#

main69710-14070-13iMA70199008-199305

SHADOW GRAY,TRIM1#

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-14090iMA70198808-198908

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-14090iMA70198808-198908

69720ALEVER ASSY, FRONT DOOR LOCK CONTROL, LH

main69720-14070-02iMA70198808-198908

MAROON,TRIM3#

main69720-14070-03iMA70198808-198908

MEDIUM GRAY METALLIC,TRIM1#

main69720-14070-04iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

DEEP BLUE,TRIM8#

main69720-14070-06iMA70..USA199008-199108

BROWN,TRIM4#

main69720-14070-12iMA70199008-199305

DEEP RED,TRIM3#

main69720-14070-13iMA70199008-199305

SHADOW GRAY,TRIM1#

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-20020×2iMA70198808-198908

69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-14020iMA70198808-198908

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20210iMA70198808-198908

OPEN LINK,LH

main69759-20220iMA70198808-198908

OPEN LINK,RH

main69759-24050iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

LOCKING LINK,RH

main69759-24060iMA70198808-198908

LOCKING LINK,LH

69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH

main69760-14020iMA70198808-198908

69761ABEZEL, DOOR LOCK CONTROL KNOB, RH

main69761-14010-03iMA70199008-199305

SHADOW GRAY,TRIM1#

main69761-14010-04iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

DEEP BLUE,TRIM8#

main69761-14010-12iMA70198808-198908

MAROON,TRIM3#

main69761-14010-13iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

main69761-14010-16iMA70..USA199008-199108

BROWN,TRIM4#

main69761-14010-22iMA70199008-199305

DEEP RED,TRIM3#

69762ABEZEL, DOOR LOCK CONTROL KNOB, LH

main69762-14010-03iMA70199008-199305

SHADOW GRAY,TRIM1#

main69762-14010-04iMA70199008-199305

DEEP BLUE,TRIM8#

main69762-14010-12iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main69762-14010-13iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

main69762-14010-16iMA70198808-198901

BROWN,TRIM4#

main69762-14010-22iMA70199008-199305

DEEP RED,TRIM3#

8401

8511

9010506118

main90105-06118

9015960081

main90159-60081

9015960268

main90159-60268

9015960303

main90159-60303

9015960329

main90159-60329

9015980020

main90159-80020

9015980029

main90159-80029

9016720002

main90167-20002

9017908096

main90179-08096

9018906018

main90189-06018

9046804124

main90468-04124

9046804125

main90468-04125

9046804126

main90468-04126

9165140612

main91651-40612

9331514008

main93315-14008

9338516010

main93385-16010

9356054016

main93560-54016

9356814514

main93568-14514

49 parts on this diagram · 1 diagram in section
