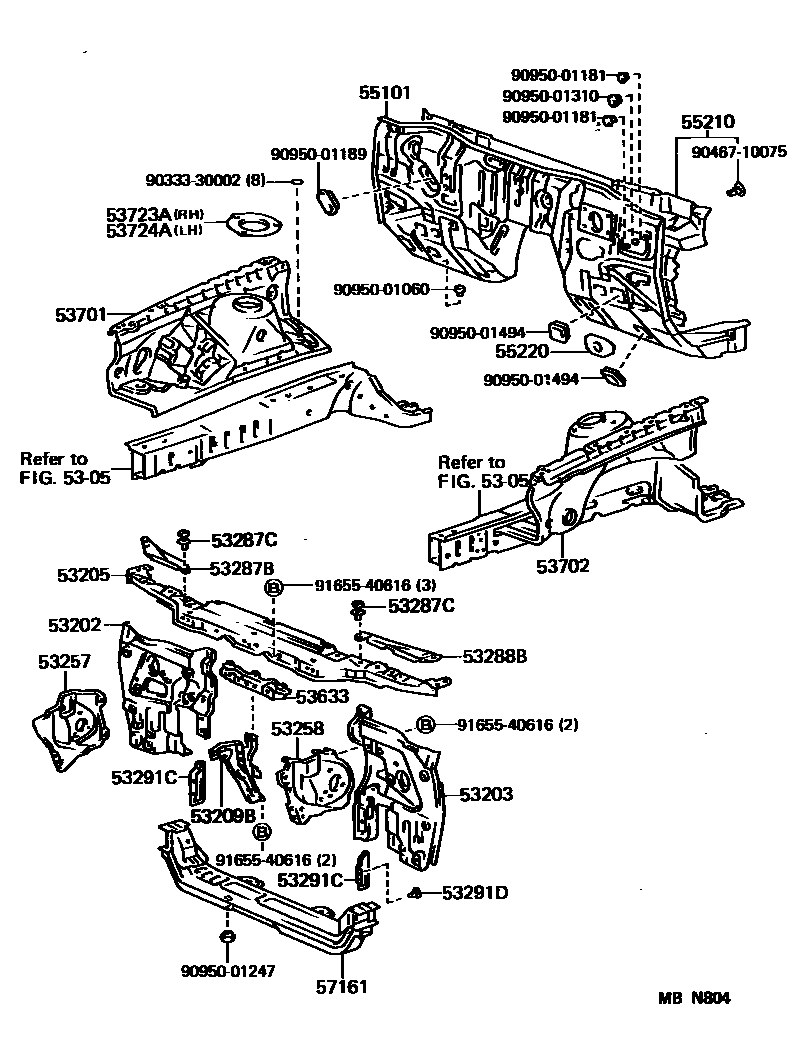

FRONT FENDER APRON & DASH PANEL

5305

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53211-14220iMA70198808-199008

sub53211-14221

main53211-14221iMA70199008-199305

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53212-14200iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199008

sub53212-14201

sub53292-14020

sub88467-14080

main53212-14201iMA70199008-199305

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-14100iMA70198808-199305

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-14091iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

53257BRACKET, FRONT END PANEL MOUNTING, RH

main53035-14030iMA70198808-199305

53258BRACKET, FRONT END PANEL MOUNTING, LH

main53036-14030iMA70198808-199305

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-14050iMA70198808-199305

53287CCLIP(FOR RADIATOR SOPPORT EXTENSION)

main90467-07030-01iMA70..CND198901-199305

BLACK,TRIM1#,3#,8#

sub90467-07030

main90467-07030-01iMA70198808-199108

BLACK,TRIM1#,3#,4#,8#

sub90467-07030

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-14060iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-14040iMA70198808-199305

RH

main53292-14010iMA70198808-199008

LH

main53292-14020iMA70199008-199305

LH

53291DCLIP, RADIATOR SUPPORT TO FRAME

main90467-06017-01iMA70..CND199008-199305

BLACK,TRIM1#,3#,8#,UPPER

sub90467-06017

main90467-06017-01iMA70..CND199008-199108

BLACK,TRIM1#,3#,4#,8#,UPPER

sub90467-06017

main90467-06017-11iMA70..TWT198808-198910

BLACK,TRIM1#,3#,4#,8#,UPPER

sub90467-06017

main90467-06017-11iMA70..TWC198901-198908

BLACK,TRIM1#,3#,8#,UPPER

sub90467-06017

main90467-08099iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

LOWER

53633SHIELD, HOOD LOCK CONTROL CABLE

main53633-14050iMA70199008-199305

main53633-22030iMA70198808-199008

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-14932iMA70198808-199008

sub53701-14935

main53701-14935iMA70199008-199305

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-14934iMA70198808-199008

sub53702-14938

main53702-14938iMA70199008-199305

sub53702-14937

53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH

main53723-14060iMA70198808-199305

53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH

main53723-14060iMA70198808-199305

55101PANEL SUB-ASSY, DASH

main55101-14500iMA70198808-199305

55210INSULATOR ASSY, DASH PANEL

main55210-14380iMA70198808-199305

55220INSULATOR ASSY, DASH PANEL, NO.2

main55220-14060iMA70198808-199305

57161CROSSMEMBER, FRONT

main57104-14120iMA70198808-199305

9033330002

main90333-30002

9046710075

main90467-10075

9095001060

main90950-01060

9095001181

main90950-01181

9095001189

main90950-01189

9095001247

main90950-01247

9095001310

main90950-01310

9095001494

main90950-01494

9165540616

main91655-40616

30 parts on this diagram · 1 diagram in section
